HEIDENHAIN TNC 620 (34056x-04) Cycle programming - Manual (Page 387)

MEASURE COORDINATE (Cycle 427, DIN/ISO: G427, software
option 17)
16.11
16
TNC 620 | User's Manual Cycle Programming | 5/2013
387

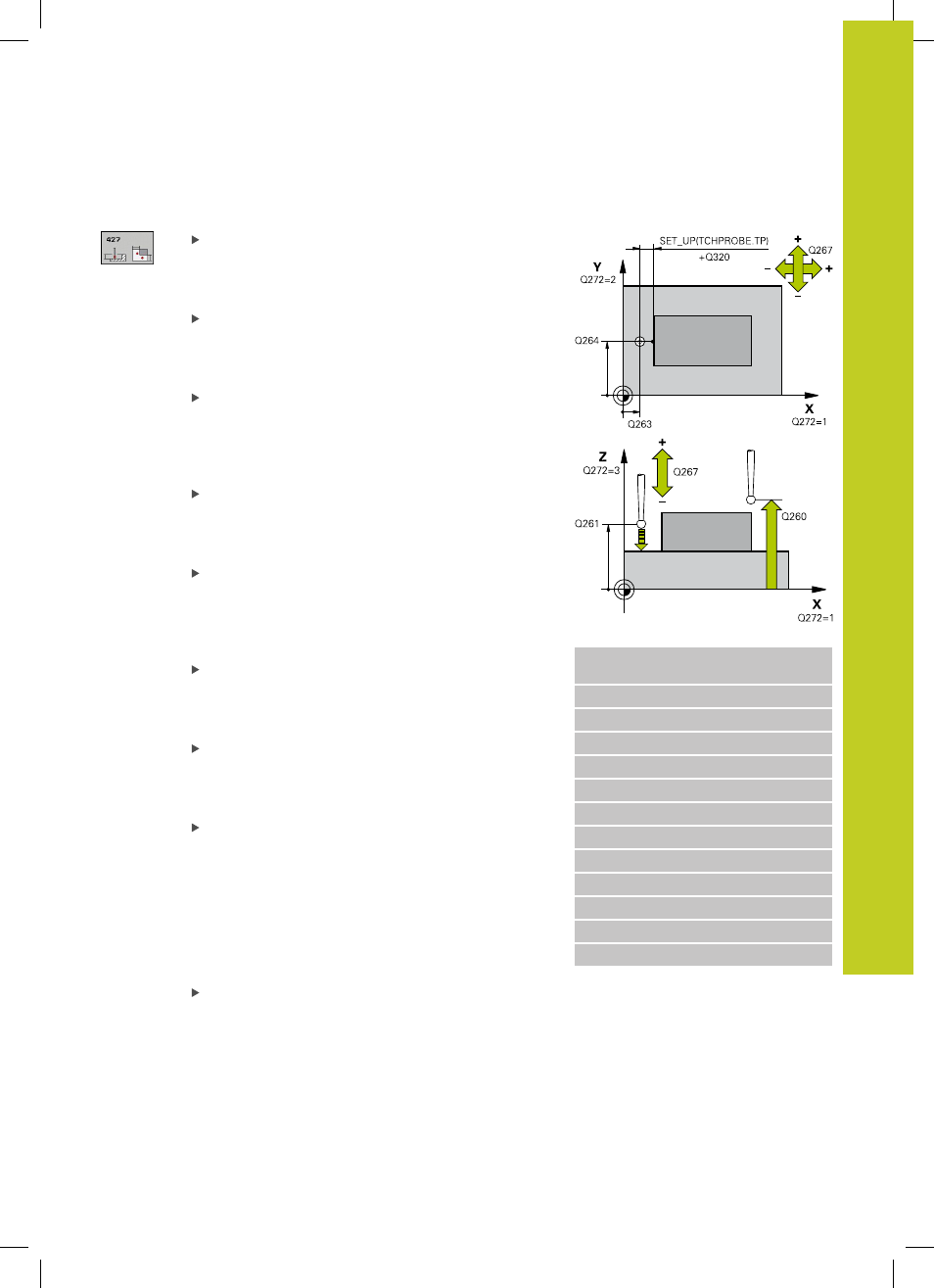

Cycle parameters
1st meas. point 1st axis Q263 (absolute):
Coordinate of the first touch point in the reference
axis of the working plane. Input range -99999.9999
to 99999.9999
1st meas. point 2nd axis Q264 (absolute):
Coordinate of the first touch point in the minor axis
of the working plane. Input range -99999.9999 to
99999.9999
Measuring height in the touch probe axis Q261
(absolute): Coordinate of the ball tip center (=
touch point) in the touch probe axis in which
the measurement is to be made. Input range
-99999.9999 to 99999.9999
Set-up clearance Q320 (incremental): Additional
distance between measuring point and ball tip.
Q320 is added to
SET_UP (touch probe table). Input
range 0 to 99999.9999
Measuring axis (1..3: 1=principal axis) Q272: Axis
in which the measurement is to be made:
1 : Principal axis = measuring axis
2 : Secondary axis = measuring axis
3 : Touch probe axis = measuring axis
Traverse direction 1 Q267: Direction in which the
probe is to approach the workpiece:
-1 : Negative Traverse direction
+1 : Positive traverse direction
Clearance height Q260 (absolute): Coordinate in
the touch probe axis at which no collision between
touch probe and workpiece (fixtures) can occur.
Input range -99999.9999 to 99999.9999
Measuring log Q281: Define whether the TNC
should create a measuring log:
0 : Do not create a measuring log
1 : Create a measuring log: The TNC saves the log
file TCHPR427.TXT as standard in the directory
TNC:\.
2 : Interrupt program run and output measuring log
to the TNC screen. Resume program run with NC
Start.
Maximum limit of size Q288: Maximum
permissible measured value. Input range 0 to
99999.9999
NC blocks
5 TCH PROBE 427 MEASURE
COORDINATE
Q263=+35 ;1ST POINT 1ST AXIS
Q264=+45 ;1ST POINT 2ND AXIS
Q261=+5 ;MEASURING HEIGHT
Q320=0 ;SET-UP CLEARANCE
Q272=3 ;MEASURING AXIS
Q267=-1 ;TRAVERSE DIRECTION
Q260=+20 ;CLEARANCE HEIGHT
Q281=1 ;MEASURING LOG
Q288=5.1 ;MAXIMUM DIMENSION
Q289=4.95 ;MINIMUM DIMENSION
Q309=0 ;PGM STOP IF ERROR
Q330=0 ;TOOL
