MEASURE HOLE OUTSIDE (Cycle 422, DIN/ISO: G422, software
option 17)
16.6
16
TNC 620 | User's Manual Cycle Programming | 5/2013
371

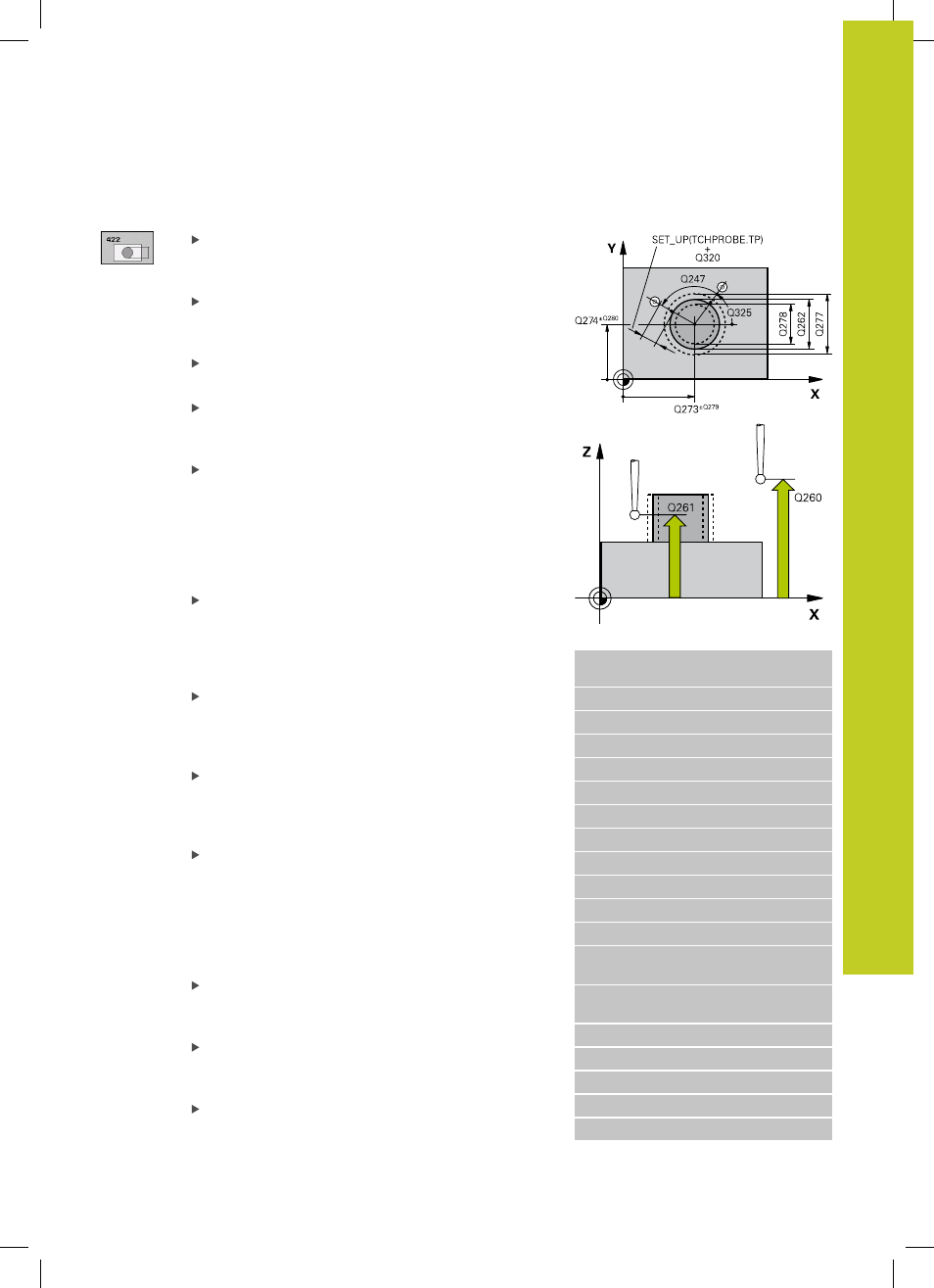

Cycle parameters
Center in 1st axis Q273 (absolute): Center of the
stud in the reference axis of the working plane.
Input range -99999.9999 to 99999.9999
Center in 2nd axis Q274 (absolute): Center of the
stud in the minor axis of the working plane. Input
range -99999.9999 to 99999.9999
Nominal diameter Q262: Enter the diameter of the
stud. Input range 0 to 99999.9999
Starting angle Q325 (absolute): Angle between the
reference axis of the working plane and the first
touch point. Input range -360.0000 to 360.0000
Stepping angle Q247 (incremental): Angle between
two measuring points. The algebraic sign of the
stepping angle determines the direction of rotation
(negative = clockwise). If you wish to probe a
circular arc instead of a complete circle, then
program the stepping angle to be less than 90°.
Input range -120.0000 to 120.0000
Measuring height in the touch probe axis Q261
(absolute): Coordinate of the ball tip center (=
touch point) in the touch probe axis in which
the measurement is to be made. Input range
-99999.9999 to 99999.9999
Set-up clearance Q320 (incremental): Additional
distance between measuring point and ball tip.
Q320 is added to
SET_UP (touch probe table). Input
range 0 to 99999.9999
Clearance height Q260 (absolute): Coordinate in
the touch probe axis at which no collision between
touch probe and workpiece (fixtures) can occur.
Input range -99999.9999 to 99999.9999
Traversing to clearance height Q301: definition
of how the touch probe is to move between the
measuring points:
0 : Move at measuring height between measuring
points
1 : Move at clearance height between measuring
points
Maximum limit of size for stud Q277: Maximum
permissible diameter for the stud. Input range 0 to
99999.9999
Minimum limit of size for the stud Q278:
Minimum permissible diameter for the stud. Input
range 0 to 99999.9999
Tolerance for center 1st axis Q279: Permissible
position deviation in the reference axis of the
working plane. Input range 0 to 99999.9999
NC blocks
5 TCH PROBE 422 MEAS. CIRCLE
OUTSIDE
Q273=+50 ;CENTER IN 1ST AXIS
Q274=+50 ;CENTER IN 2ND AXIS
Q262=75 ;NOMINAL DIAMETER
Q325=+90 ;STARTING ANGLE
Q247=+30 ;STEPPING ANGLE
Q261=-5 ;MEASURING HEIGHT
Q320=0 ;SET-UP CLEARANCE
Q260=+10 ;CLEARANCE HEIGHT
Q301=0 ;MOVE TO CLEARANCE
Q275=35.15 ;MAXIMUM DIMENSION
Q276=34.9 ;MINIMUM DIMENSION
Q279=0.05 ;TOLERANCE 1ST
CENTER
Q280=0.05 ;TOLERANCE 2ND
CENTER
Q281=1 ;MEASURING LOG
Q309=0 ;PGM STOP IF ERROR
Q330=0 ;TOOL
Q423=4 ;NO. OF PROBE POINTS
Q365=1 ;TYPE OF TRAVERSE
