2. Panel Operation DD35 Production Switcher
2 – 27 Operating Instructions – Rev. 16 / 10.2001
during the fade-out-phase and stay out during the fade-in-phase. If it is not on, it
will stay out during the fade-out-phase and fade-in during the fade-in-phase.
BLK Pst can only be activated when all affected components are either in their
”zero” or ”fully-in” state.
When BLK Pst is switched off during the transition, the following happens:
D
During the fade-out-phase and on the black limit: BLK Pst turns off and the
transition is stopped and put back to the start position.
D
During the fade-in-phase: the transition is stopped and set back to the black
state. BLK Pst remains on.
A BLK Pst transition can optionally be aborted by a source selection on Back-
ground A.
Application Setting Action
Non-layer mode:
Black Pst Abort A currently running transition with BLK Pst on will be
aborted, the BLK Pst button lamp turns off and the
selected source is taken fully as program.
Layer mode:
Black Pst Abort If a currently running transition with BLK Pst on is at
the black limit, it will be aborted, the BLK Pst button
lamp turns off, the switcher changes to non-layer
mode and the selected source is taken fully as pro-
gram.

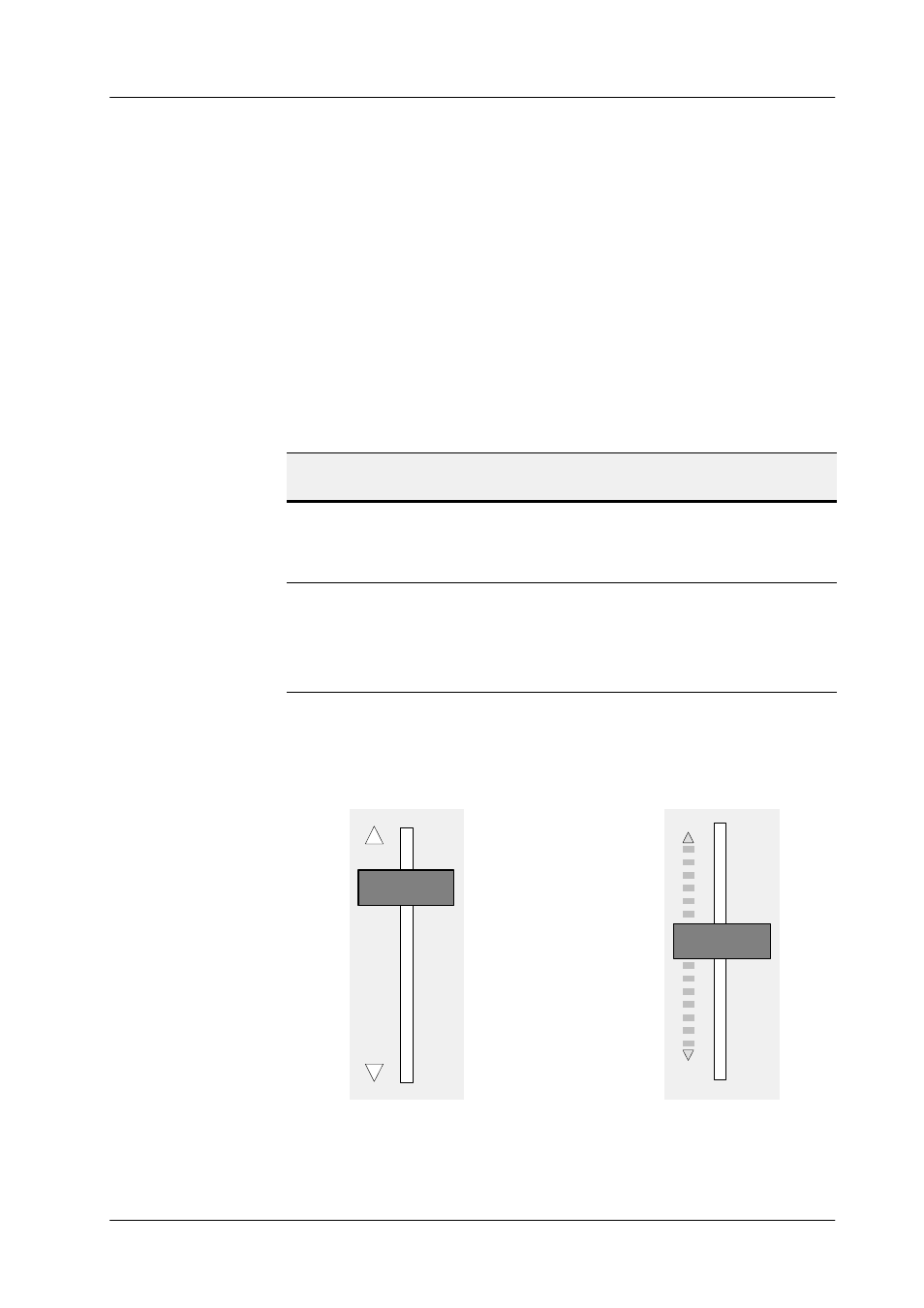

Fader The fader permits delicate manual transitions. The yellow arrows to the left of the
fader show the direction to complete the transition.
RPD 35-4 fader RPD 35-2/-3 fader
