3. Menu Operation DD35 Production Switcher
3 – 56 Operating Instructions – Rev. 16 / 10.2001
Aktivating the Box Softness adjustment. See Box Softness button below.

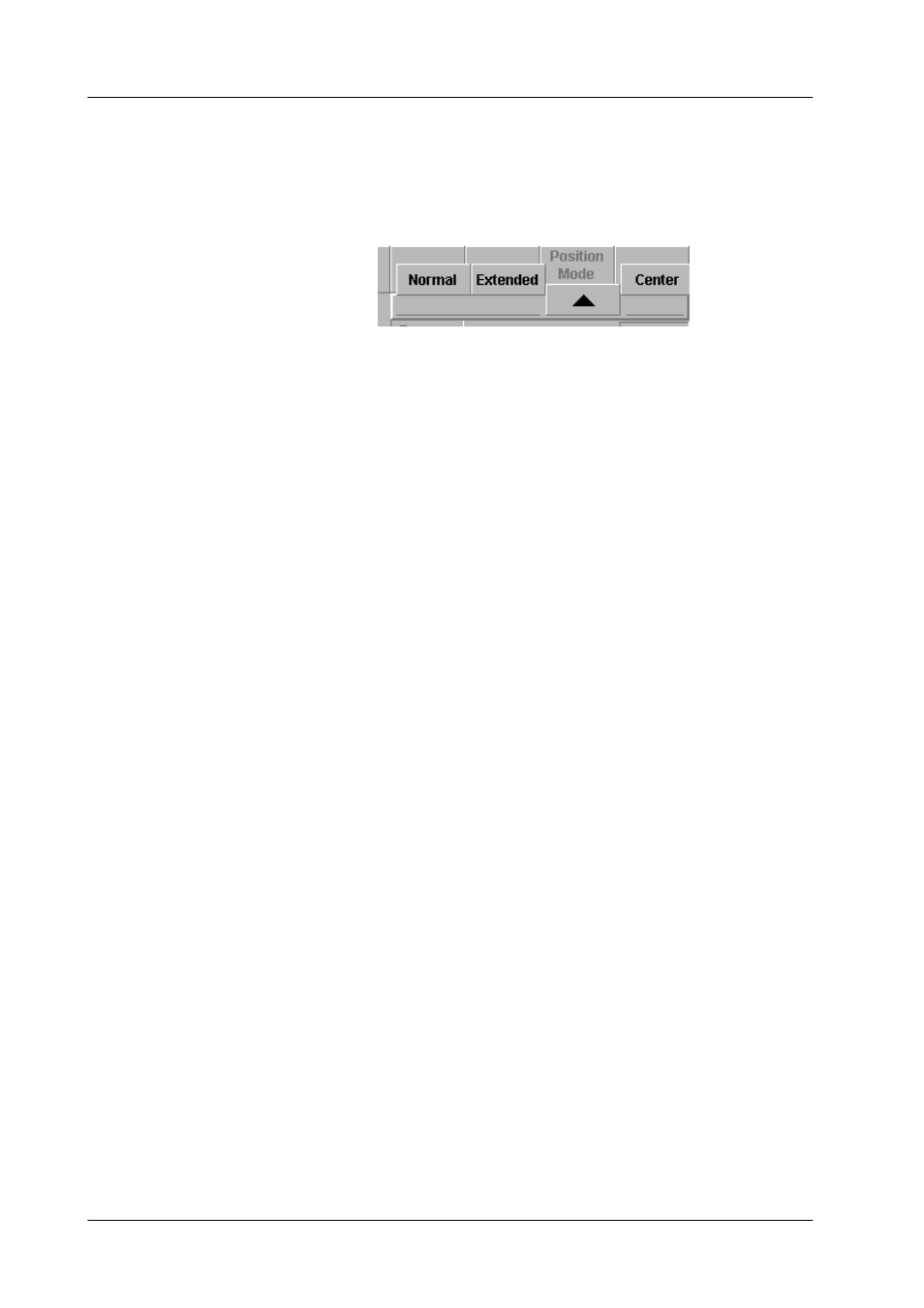

Allows the operator to use the trackball to position the mask in the screen. Three
position modes are selectable:
Normal: You can position the center of the mask within the
visible picture area.
Extended: You can position the center of the mask at any place,
even outside the visible picture area.
Center: Reset the mask to the center position.
See also Shift button below.
For details refer to section Introduction.
For details refer to section Introduction.
Turns on the selected mask.
If Paint Store is selected as a mask source, the luminance component of any input
signal can be used as a mask, with adjustable gain and clip. In order to select the
source, select the input on the Aux Buses row.
If Bus is selected as a mask source, the luminance component of any input signal
can be used as a mask, with adjustable gain and clip. In order to select the source,
select the input on the Aux Buses row.
Note: Only one mask bus is available in mixing level 1, 2, 3.
With Pattern1 or Pattern2 one of the wipe generators can be selected for masking.
The wipe pattern can be directly selected with the wipe pattern selection keypad
in the Wipe panel or in the Wipe Select menu. The size of the wipe pattern can be
adjusted with the Size control above.
You can freely position the wipe mask in the picture with the trackball in the Positio-
ner panel after you have enabled Pos or Extend Pos in the Wipe panel or in the
Mask menu.
Select
Position Mode
Transfer Key
Menu Lock
Mask On
Mask Source
Selection:
– Paint Store
– Bus
– Pattern1
– Pattern2
