3. Menu Operation DD35 Production Switcher
3 – 120 Operating Instructions – Rev. 16 / 10.2001
3.9.4.2 Function Buttons

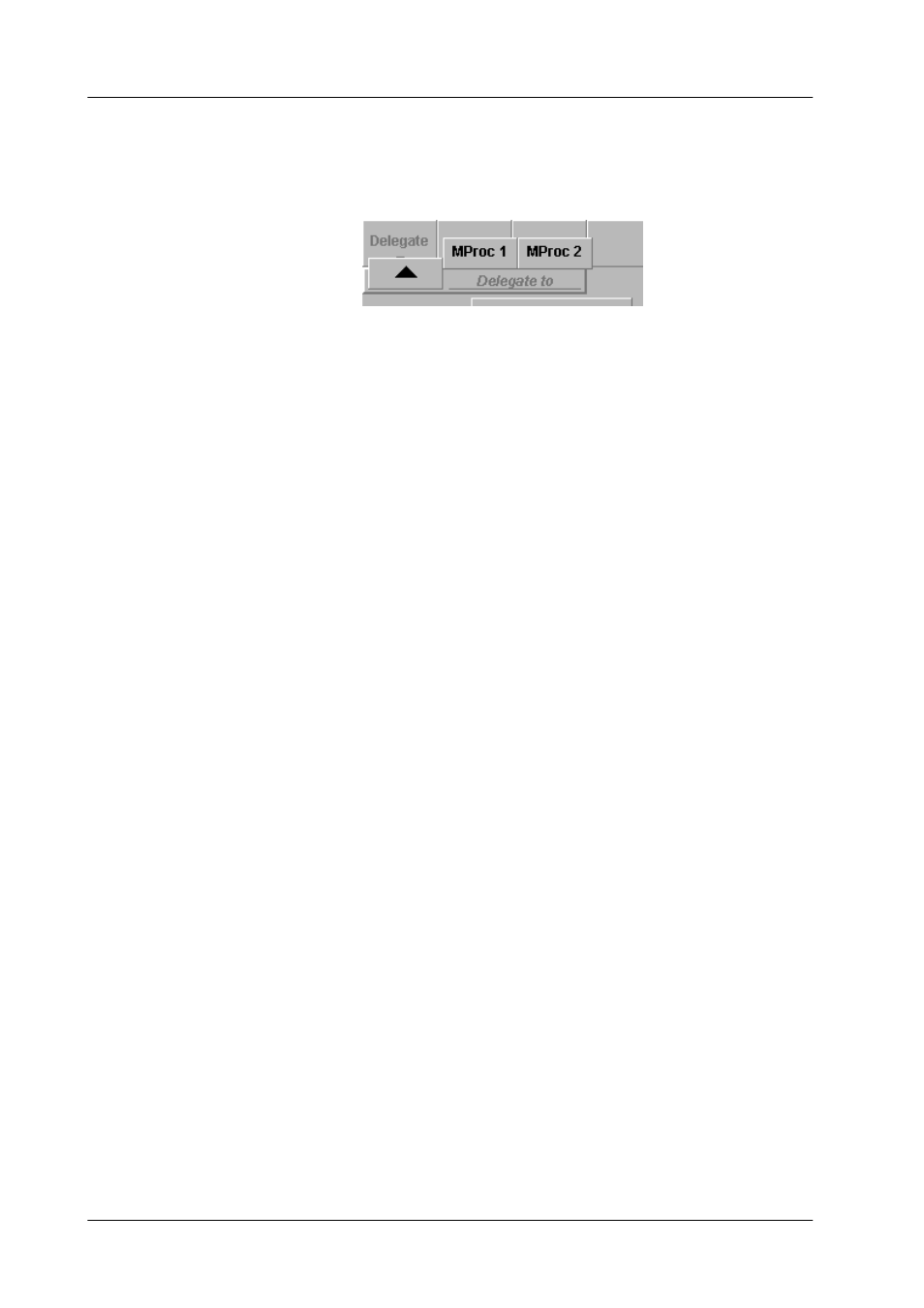

Delegates the matte generator to the Montage Processor channels.
The Crop function serves to adapt the blanking to the norm blanking for analog si-
gnals i.e. the black bars on the right and left picture edge will be replaced with the
background color.
If MPR Effects is selected, the pixel manipulator of the respective channel is
enabled. The relevant parameters can be selected in the pixel manipulator menu.
In preparation, not implemented yet.
If PixMan is selected, the pixel manipulator of the respective channel is enabled.
The relevant parameters can be selected in the pixel manipulator menu.
In preparation, not implemented yet.
The output of the Montage Processor is a full Frame, Field 1 only or Field 2 only.
Use the field mode if a movement is in the stored picture or if two different fields
were stored.
Delegate
Crop
MPR Effects
PixMan
Readout Frame
Readout Field1
Readout Field2
