FRU Installation
AXP 1410 Installation and Use (6806800H70L) 100
3. Align the threaded end of the standoff/lockout screw extension with the screw
holes on each side of the shelf and securely tighten to lock the PEM approximately
2 inches out of the shelf.
4. Loosen the PEM ejector handle captive screw and pull the PEM ejector handle to the
full open position.
5. Remove the plastic covering over the terminal block.
6. Verify that the lock and tagout on the branch circuit or power distribution unit is
still intact to ensure the system is in a safe state.

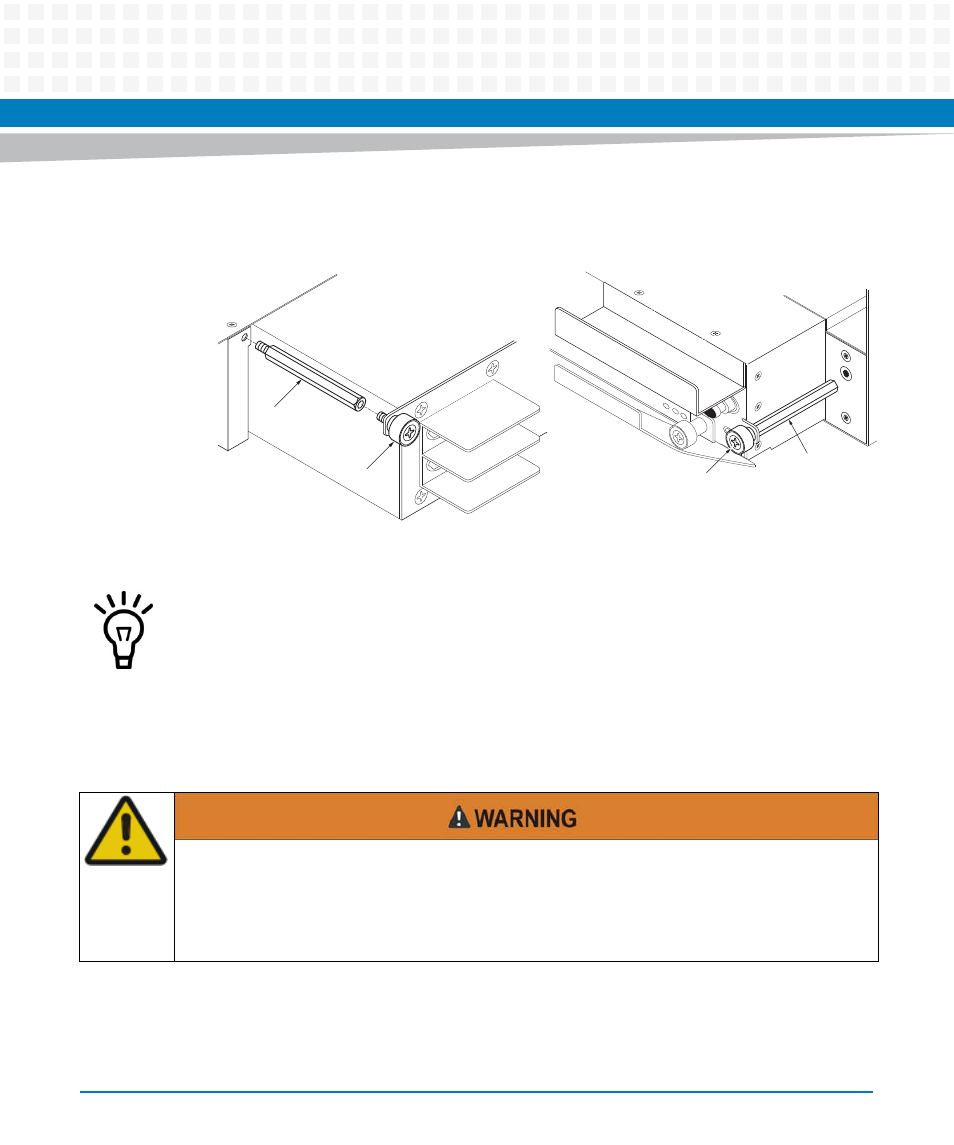

4434 0706
Standoff
Retaining Screw
PEM
4435 070
CB5
H/S
IS
OOS
BOND
POINT
ESD
25
Standoff
Retaining Screw
PEM
Lock the replacement PEM into the slot within 3 minutes to maintain the proper cooling
properties of the shelf.
Personal Damage
If the DC power cables are connected to the branch circuit or power distribution unit, a
qualified service person must confirm that the power to the cables is terminated (off) before
continuing the steps to attach the cables to the PEMs.
