Controller Module Remote Programming ReFlex Power™ Programming Manual
M380056-03 Rev L 27

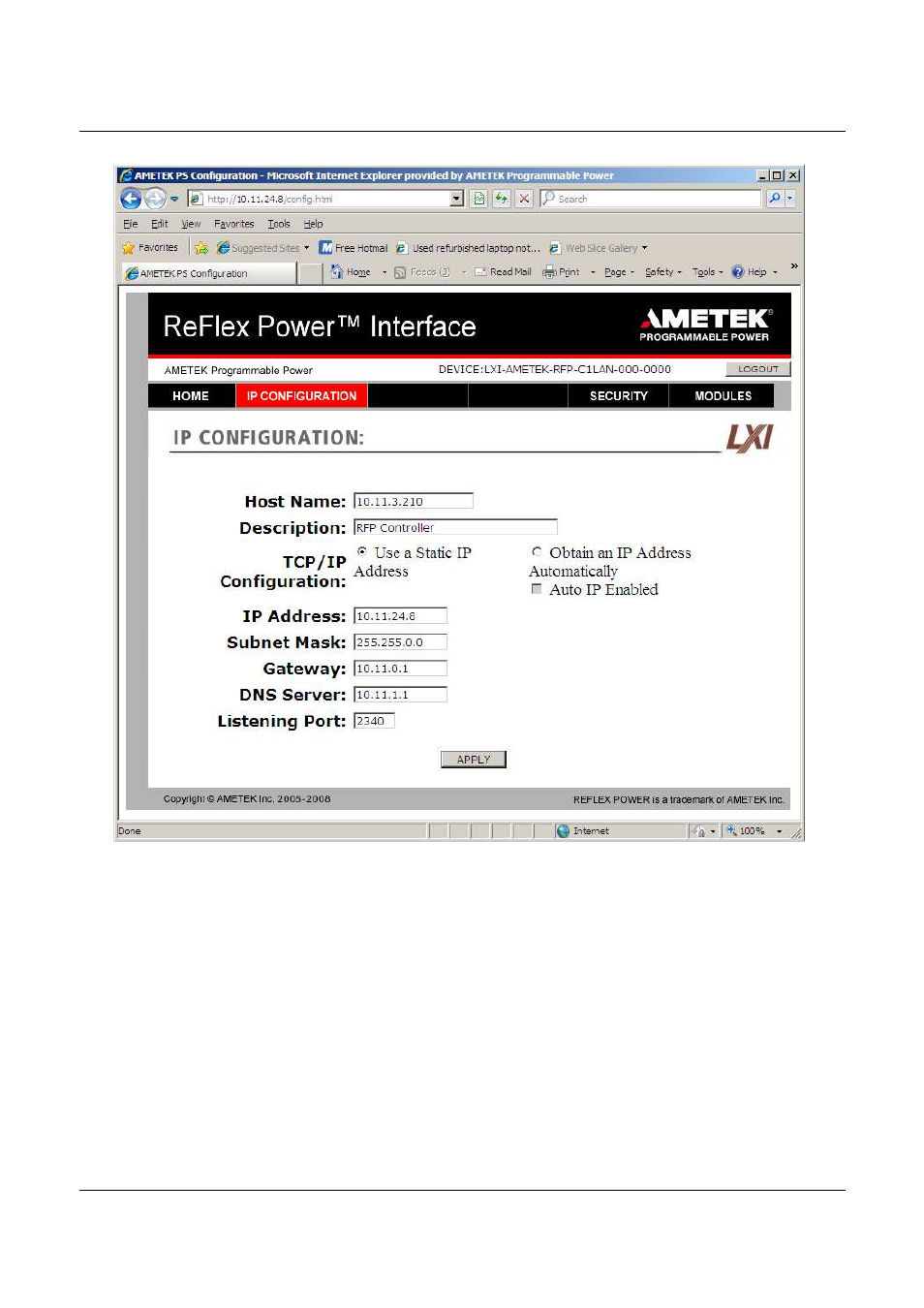

Figure 2-7. IP CONFIGURATION Static IP selected, but not yet applied.
When an IP Address is in error, it needs to be “checked”, an error message is
displayed, and the page refreshes back to the previous settings. (Figure 2-8)
An invalid IP address can be the result of invalid values entered in the address
fields, or the requested IP address is already in use. The chosen IP address
should be ‘PINGED’ to check that it is free and available for use before trying
to set the RFPC to that address.
