54 NodeBuilder Quick-Start Exercise
To test your device’s interface with the LonMaker Browser, follow these steps:

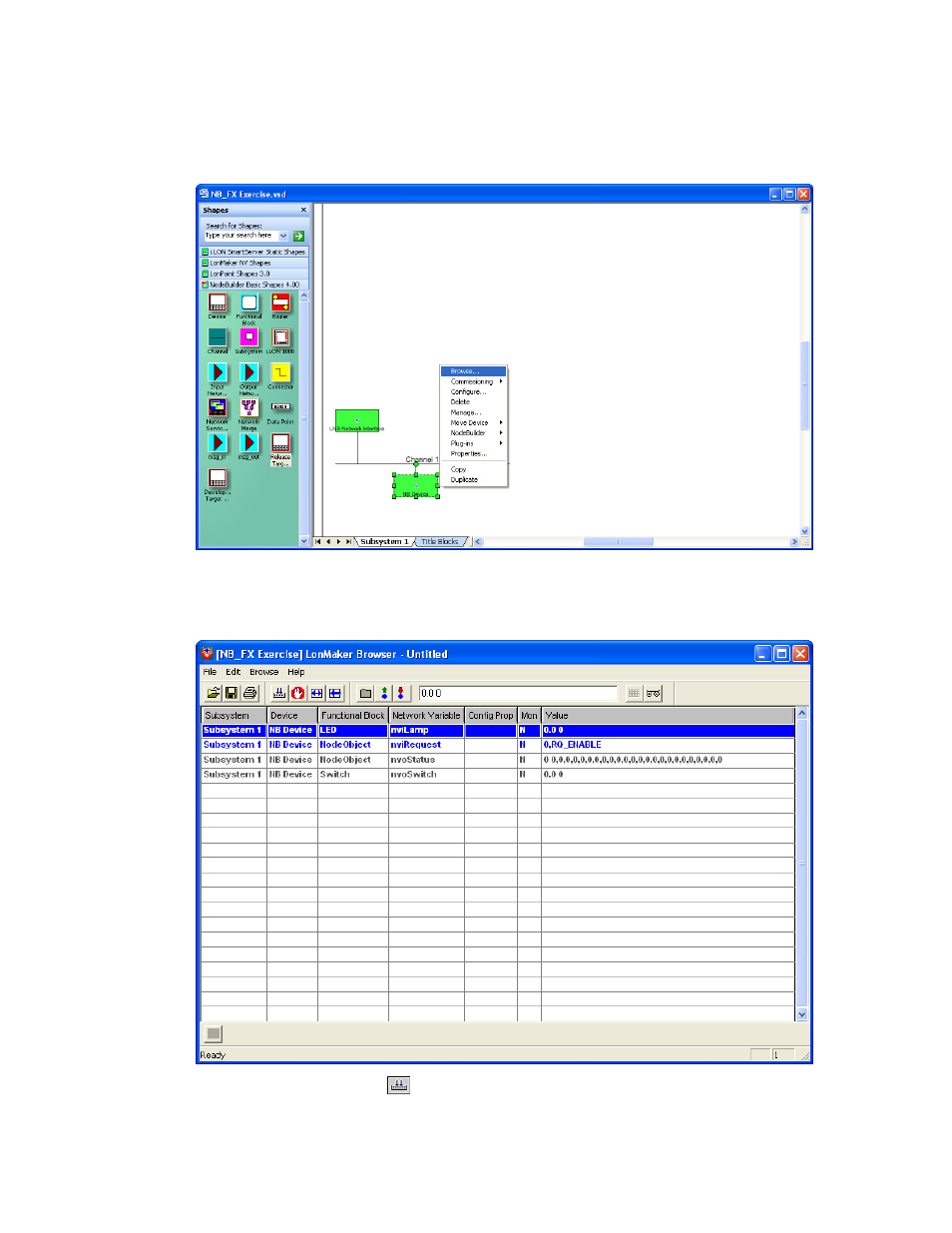

1. Right-click the NB FX Example Device device in your LonMaker drawing, then click Browse on
the shortcut menu.
2. The LonMaker Browser opens. It displays the three functional blocks in your device interface
(LED, NodeObject, and Switch) and the network variables and configuration properties within
each functional block. You can only write values to the input network variables (blue) and
writable configuration properties (green).
3. Click the Monitor All button ( ) on the toolbar to start polling all values.
