Toa M-864D Ver.2.2.0 User Manual
Page 86
86
Note
To output a contact for control by the ZM Remote Controller, perform the following operations on the ZM
Remote Controller Settings screen (shown on
Step 1. Allocate “Remote Switched Out” to the ZM Remote Controller’s “Function” button.
Step 2. Set the contact output terminal number.
[fader tally]
Outputs a Make or Break contact depending on whether the FRONT fader’s gain value exceeds (ON) the
threshold level or not (OFF). The threshold level corresponds to the fader scale “1” (approximately –60 dB).
Terminal control differs depending on the “Control” column setting.
Make: The terminal is closed when in ON status, and is opened when in OFF status.
Pulse: A shorting pulse is generated between the corresponding terminal and the C terminal when the
status changes from ON to OFF.
tip
When no function is allocated to the terminal, select “Break” with the corresponding “Function” column button.
[remote Switched out]
Outputs a Make or Break contact by ON/OFF operation control from the ZM Remote Controller or other
externally connected device.
Both momentary type and latch type are available for the terminal control method. Select either type in the
“Control” Column.

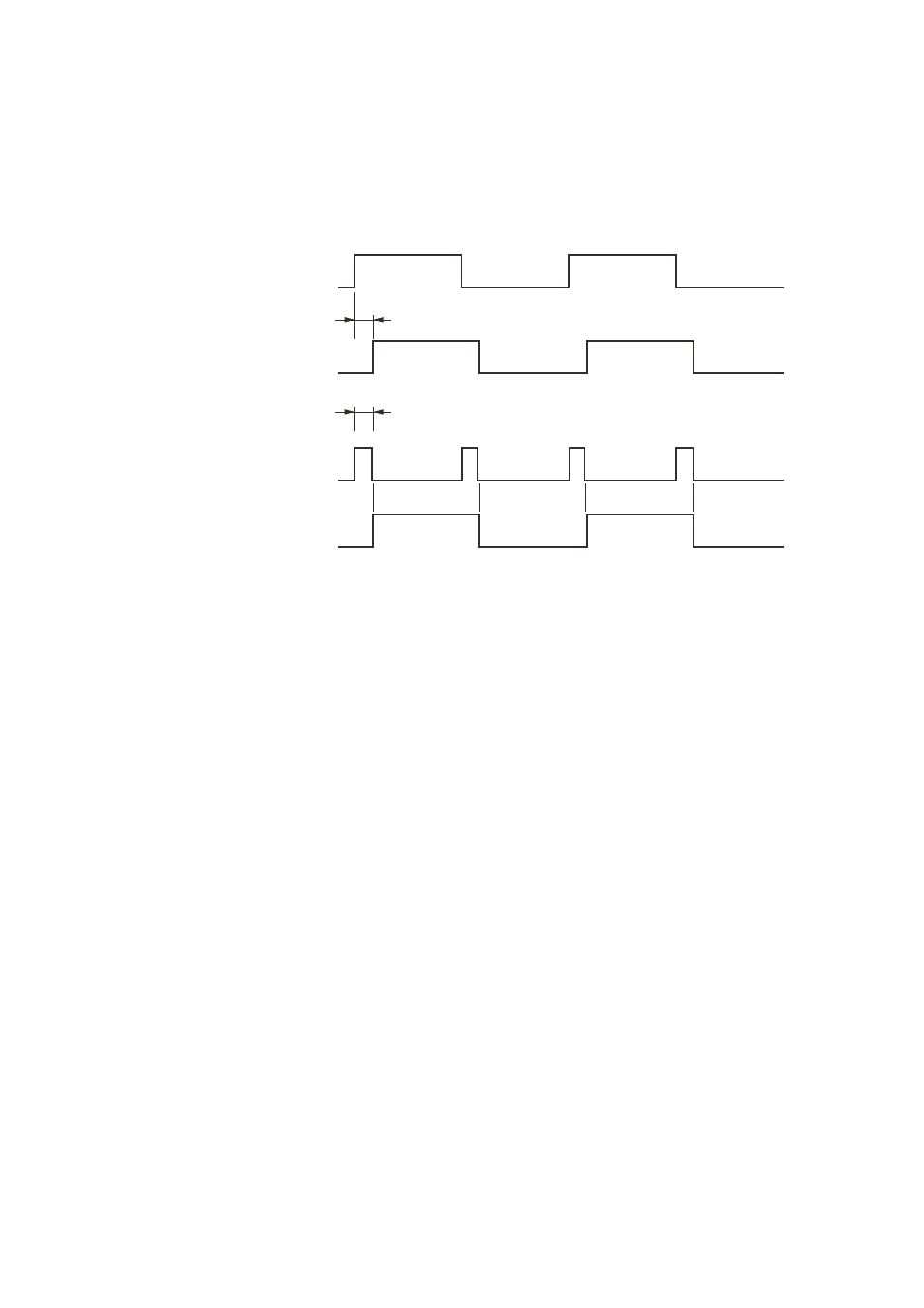

Below is the operation diagram for each type of control method.
ON/OFF operation of
ZM Remote Controller’s
function button
• Momentary type
• Latch type
ON
OFF
OFF
ON
OFF
ON
ON
ON
ON
OFF
OFF
OFF
Contact output state
Make
Beak
Beak
Make
Over 100 ms
Over 100 ms
ON/OFF operation of
ZM Remote Controller’s
function button
Contact output state
Make
Beak
Beak
Make
