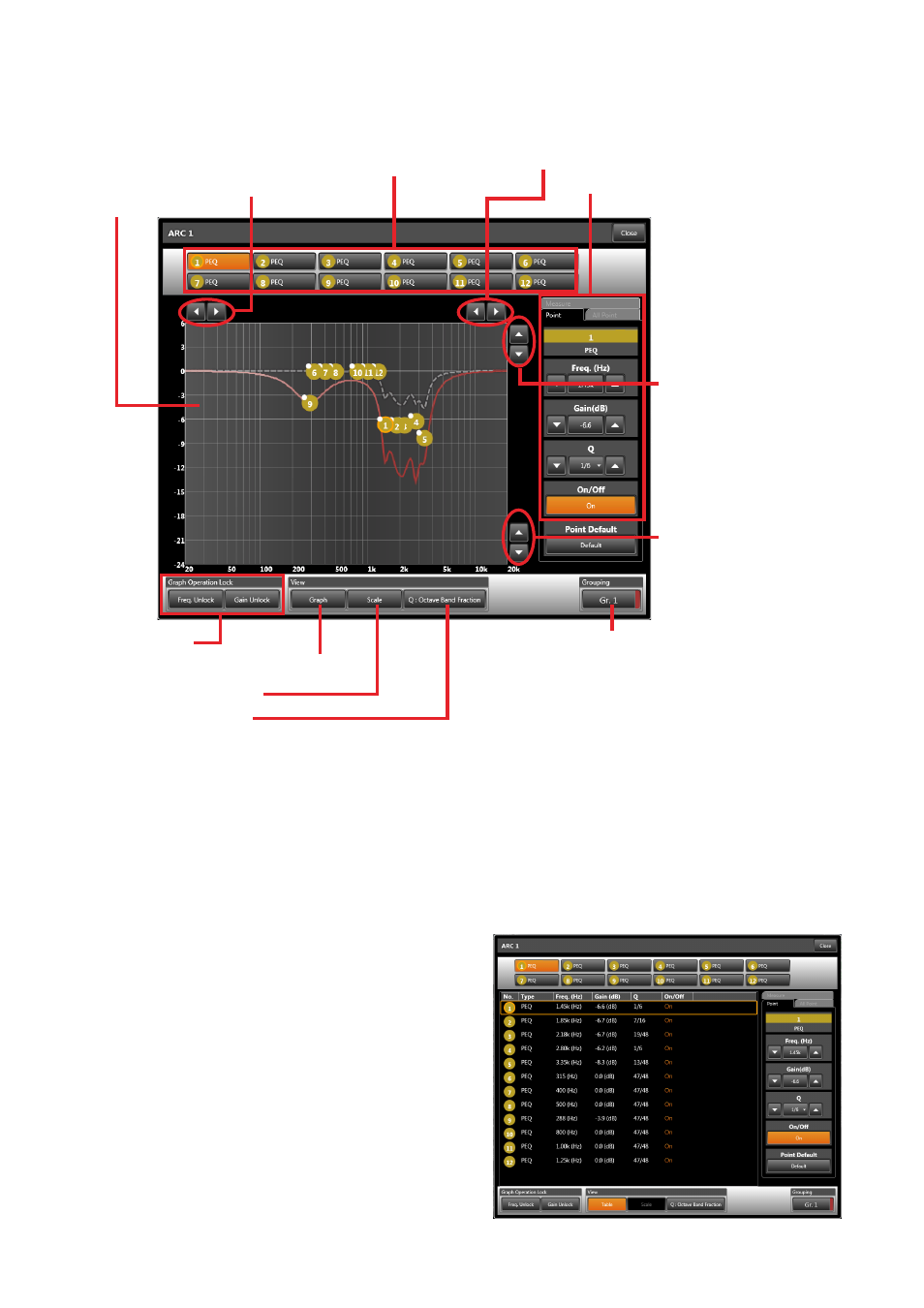

7.10. arC
This function box for monaural output is used to set the Automatic Resonance Control (ARC) function for each
of output channels 1 – 4.
(1) Filter point selection button
(3) Minimum frequency adjustment button
(4) Filter control field
(5) Detail setting panel
(6) Maximum amplitude
adjustment button
(11) Q indication button
(12) Grouping button
(7) Minimum amplitude
adjustment button
(8) Lock button
(9) Graph/table display selection button
(10) Scale settings button
(2) Maximum frequency adjustment button
1. filter Point Selection Button
Click to select one of 12 filters.
In graph display mode, the selected filter’s filter
point is highlighted.
In table display mode, the selected filter’s row is
highlighted.
When the detail setting panel is set to “Individual
Settings,” the selected filter’s parameter is
displayed.
2. Maximum frequency adjustment Button
Sets the maximum frequency in graph display
mode (sets the right edge of a graph).
The leftward pointing triangle button decreases
the frequency and the rightward pointing triangle
button increases the frequency.
3. Minimum frequency adjustment Button
Sets the minimum frequency in graph display mode
(sets the left edge of a graph).
The leftward pointing triangle button decreases
the frequency and the rightward pointing triangle
button increases the frequency.
4. filter Control field
ARC frequency characteristics are displayed by a
graph in graph display mode.
In table display mode, the ARC filter parameters
and ON/OFF settings are displayed in table form.
To set the display mode, click the Graph/table
Display Selection Button (9).
(Table format display)
