Reznor RECC Unit Installation Manual User Manual
Page 33

Form I-MAPSIII&IV, P/N 222917R9, Page 33
Top (Slide edge of top
under cabinet top.)
Right
Side
Filter
Angle
Wing Screw,
P/N 205707,
and Retainer,
P/N 205709
(2 each)
Filter
Clamp
Filter
Bottom
Sheetmetal
Screws,
P/N 11813
Left
Side
Filter
Angle
Center
Support
Filter Spacer
Wing
Screw
Recep-
tacle (2)
Remove and reuse
screws from cabinet to att
ach this side of hood.
Filter
Filter
Filter

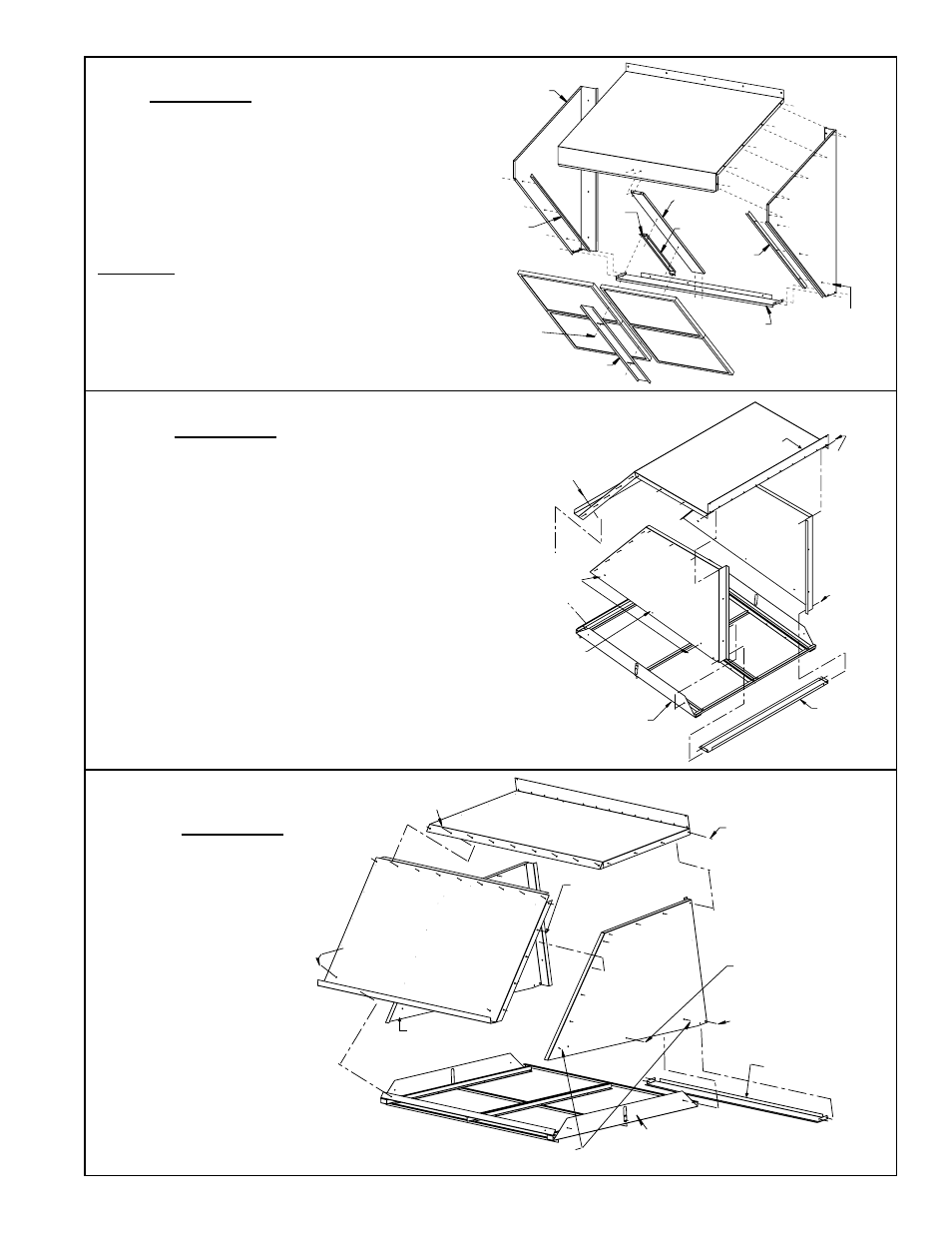

FIGURE 17A - Installation of Outside Air
Hood, Option AS16, on Cabinet Sizes A
and B without an optional power exhaust
(For a cross-reference of cabinet size and
model size, refer to the Appendix, pages 71-
72.)
Filter Sizes
Cabinet A - (4) 1x16x20
Cabinet B - (4) 1x16x25
FIGURE 17B - Installation of Outside
Air Hood, Option AS19, on Cabinet
Size A with an optional power exhaust
(Option PE1) (For a cross-reference of
cabinet size and model size, refer to the
Appendix, pages 71-72.)
1/2 Sheetmetal
Screws (Qty 2)
P/N 11813
Left Side
Panel,
P/N 194272
3/4 Sheetmetal Screws
(Qty 2, 1 per side)
P/N 99542
Filter Frame Assy, P/N 214413 -
Holds four 18x20x1 permanent
aluminum filters, P/N 194903
Hood
Bottom
P/N 214415
1/2
Sheetmetal
Screws
(Qty 4 -
2 per side)
P/N 11813
Right Side
Panel,
P/N 194273
1/2
Sheetmetal
Screws
(Qty 18 -
9 per side)
P/N 11813
Hood T
op, P/N 214417
(edge must be
under the cabinet top)
1/2 Sheetmetal
Screws (Qty 4,
2 per side)
P/N 11813
NOTE: If filter tray is mistakenly
installed without filters in place,
see instructions in Form O-MAPS
for installing filters.
FIGURE 17C -
Installation of Outside
Air Hood, Option AS19,
on Cabinet Size B with
an optional power
exhaust (Option PE2)
(For a cross-reference of
cabinet size and model size,
refer to the Appendix, pages
71-72.)
1/2 Sheetmetal Screws
(Qty 9), P/N 11813
Hood T
op, P/N 2144
11
(Edge must be under
the cabinet top.)
1/2 Sheetmetal
Screws (Qty 8,
4 per side)
P/N 11813
Top Panel
Slope Section,
P/N 214412
1/2 Sheetmetal Screws
(Qty 10, 5 per side)
P/N 11813
Left Side Panel,
P/N 194272
1/2 Sheetmetal
Screws (Qty 4, 2
per side) P/N 11813
3/4 Sheetmetal
Screws (Qty 2,
1 per side)
P/N 99542
Hood Bottom
P/N 214416
Filter Frame Assembly,
P/N 214414 - holds (4) 20x25x1 permanent
aluminum filters, P/N 101610
1/2 Sheetmetal Screws
(Qty 4, 2 per side), P/N 11813
1/2 Sheetmetal
Screws (Qty 2)
P/N 11813
Right Side
Panel,
P/N 194273
