5.4.1.2 Roof Curb for MAPS
®
III&IV A, B, and C Cabinet with Vertical (Down) Airflow WITH an
Optional Energy Recovery Module, Option ER1A, ER1B, ER1C (Roof Curb Option CJ34)
Roof Curb P/N by Model/Size
See Model
Size / Cabinet
Size Cross
Reference on
pages 71-72.
Cabinet A
Cabinet B
Cabinet C
RCB/RCC/RDB/RDC w/Option ER1
-
All Cabinet A
-
-
All Cabinet B 190, 216, 248,
262, 272, 288
-
298, 410, 354,
370, 468, 482
-
RDCB/RDCC/RDDB/RDDC w/Opt ER1
100
150
200
250
300
400
500
600
700
RECB/REDB/RECC/REDC w/Opt ER1
-
All Cabinet A
-
-
All Cabinet B
-
-
All Cabinet C
-
Roof Curb (Option CJ34) Package P/N
262478
262479
262480 262481
262482
262483
262484
262485
262486
Code (FIGURE 8A) Component Description:
Qty
Component P/N's
A
Curb Ends (unit & ER end)
2
204486
204487
208799
B
Curb Sides (under unit)
2
204485
208798
C1
Supply Air Duct End
1
204431
204432
207961
207960
207959
207958
C2
Supply Air Duct End
1
204431
204432
207965
207964
207963
207962
D1
Supply Air Duct Side
1
204433
204434
204436 204435
204437
207967
D2
Supply Air Duct Side
1
204433
204434
204436 204435
204437
207967
207971
E
Return Duct End
1
204438
204439
207966
F
Return Duct Side
1
204440
204441
207974
G
Return Duct Side Angle
1
204444
207973
H
Return Duct Rear Angle
1
204442
204443
207972
J
Curb End (unit end in center)
1
261995
261996
260855
K
Tunnel (between unit & ER)
1
261993
261994
260856
L
Right Curb Side (under ER)
1
262411
262418
M
Left Curb Side (under ER)
1
262412
262419
A
B
B
C1
C2
D2
E
F
G
H
D1
A
J
K
L
M
(2 per each corner)
1” Lag Screw and
Lockwasher
(2 per each corner)
3/4” Hex Head
Cap Screws with
Lockwashers & Nuts
Curb Section for
Energy Recovery
Module
Curb Section for
MAPS Unit

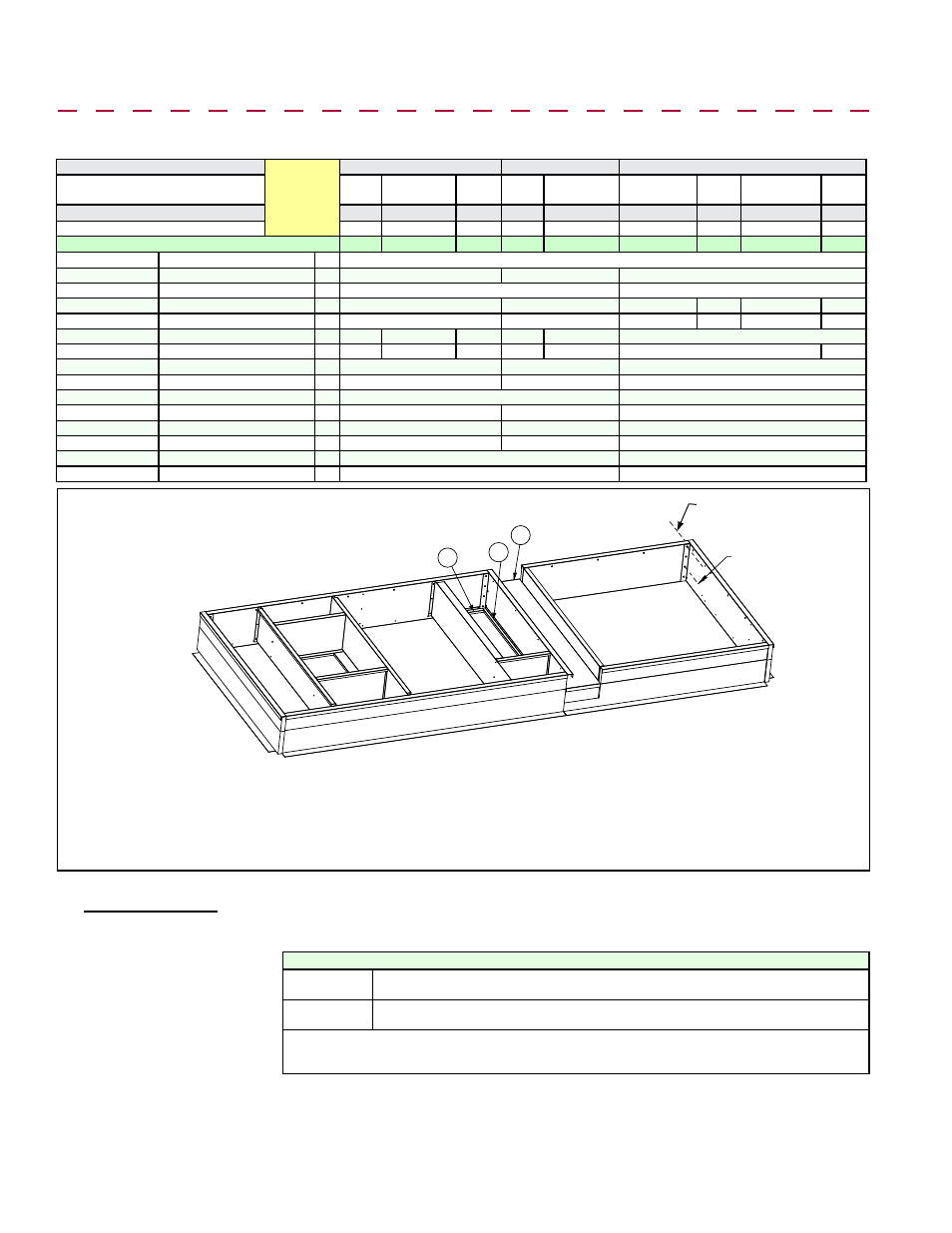

FIGURE 8A - Roof Curb Components and Layout
for MAPS
®
Cabinets A, B, and C with Energy
Recovery Option ER1
NOTES:
•
Curb in
FIGURE 8A applies to a MAPS
®
unit with an optional
energy recovery module. For downflow curb without an
energy recovery module (Option CJ31), go to Paragraph
5.4.1.1 page 11.
•
All curbs include corner hardware as listed below and
screws for attaching duct pieces.
•
Integral ducts are designed so that ductwork may be either
inserted down from the top or attached from the bottom.
•
Apply sealant tape to tops of supply air "dividers" (C & D)
that mate with the blower or heat exchanger opening.
•
Apply sealant tape to tops of return air "dividers" (E, F, G, H).
•
Apply sealant tape to tops of all curb rails.
•
Curb MUST be level.
5.4 Mounting on a Roof Curb (cont'd)
5.0 Mounting
(cont'd)
5.4.1 Downflow Roof Curbs for MAPS
®
III Cabinets A, B, C (cont'd)
Option CJ34 Roof Curb Corner Hardware (See FIGURE 8B)
For
Top Two
"Holes"
(16) 5/16" x 1" Lag Screws,
P/N 16243; (16) 5/16" Lockwasher, P/N 1333
For
Bottom
Two "Holes"
(16) 5/16" x 3/4" Hex Head Cap Screw,
P/N 16247; (16) 5/16" Lockwasher, P/N 1333;
(16)
5/16-18 Hex Nut, P/N 1035
Hardware to Assemble and Attach Dividers to make Duct Connections and Sealant Tape for Top
of Rails: (75) #10 Sheetmetal Screws, P/N 11813; (1) 1/4" x 1-1/4" x 50' Foam Sealant Tape,
P/N 66302
Installation Instructions
for Down Discharge
Roof Curb, Option
CJ34, for MAPS
®
Cabinet Sizes A, B,
and C WITH Energy
Recovery Module,
Option ER1
1. Assemble the MAPS
®
Unit Curb Section
a) Position the ends and sides (
Codes B, B, A, and J
) of the MAPS
®
unit section
of the curb as shown in the drawing in
FIGURE 8A. Fasten with bolts and lag
screws as illustrated in the corner detail (
FIGURE 8B).
b) Install bottom opening ductwork. Use the sheetmetal screws to attach the
dividers (
Codes C1, C2, D1, D2, E, & F
). Attach the return air duct angles
(
Codes G & H
) to the attached end and side and to the roof curb.
NOTE: If the
system does not have a return air opening, Codes F, G, & H may be installed in
the curb but are not required.
