Form I-MAPSIII&IV, P/N 222917R9, Page 29

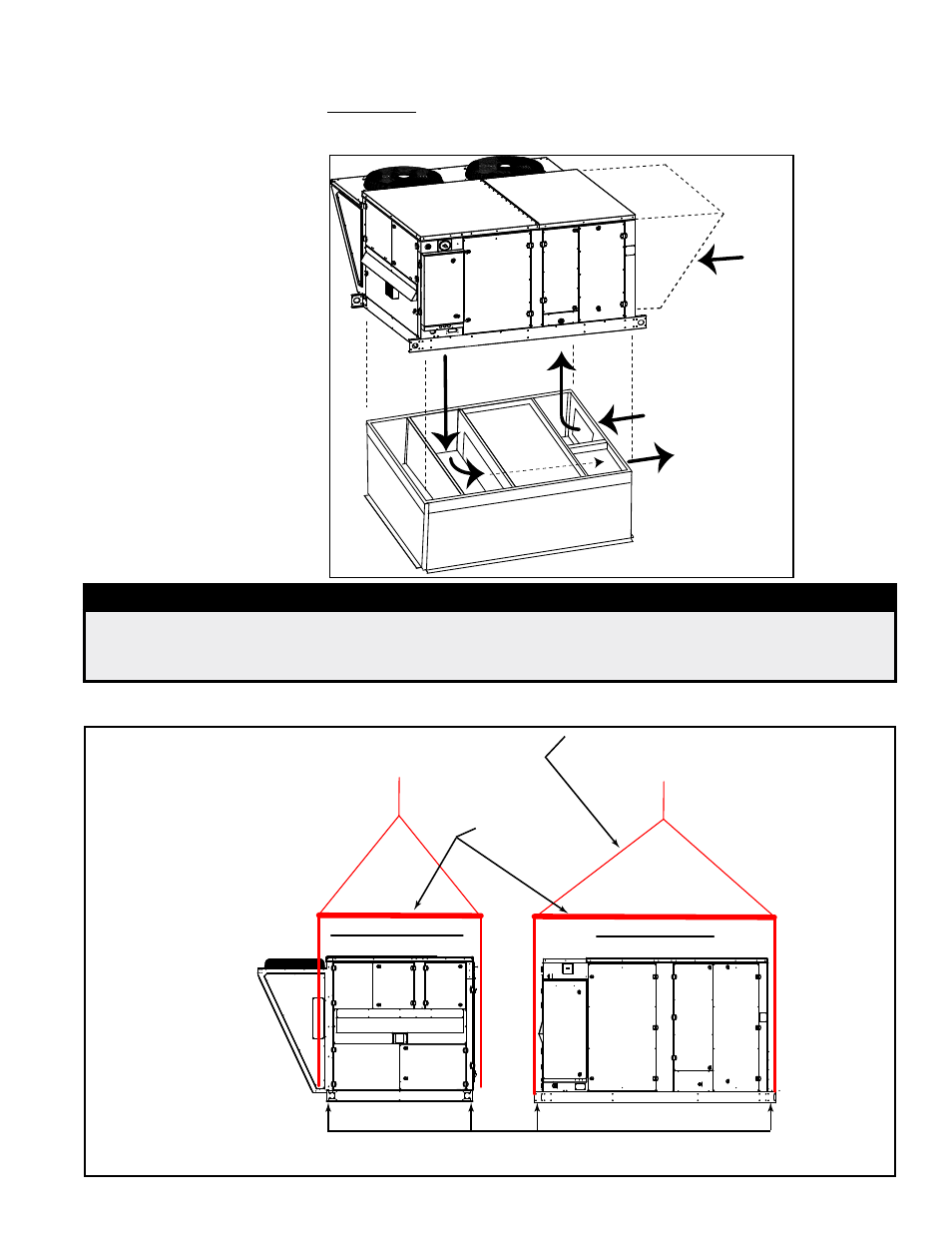

FIGURE 13 - Correct

Orientation when

Lifting to a Horizontal

Curb is with the Inlet

End of the MAPS

®

Unit

at the Duct Connection

End of the Roof Curb

Supply

(Discharge)

Air

Optional

Return Air

Outside

Inlet Air

Option CJ50, Horizontal Curb

(same orientation for CJ49)

MAPS

Cabinet B

Outside Air Hood is

installed after the

unit is set on the curb.

NOTE: If the installation

includes an energy

recovery module, install

the unit first, placing it

in this same orientation

on the end of the

curb without the duct

connections.

If setting on the roof curb or a duct furnace curb section, verify that sealant tape is

applied to all top surfaces.

IMPORTANT: Verify that the lift operator knows the correct placement of the unit

so that the airflow orientation will be correct. When placing a unit on a horizontal

flow curb, be sure the unit is being positioned as illustrated in

FIGURE 13.

DANGER

To prevent death, injury, or equipment damage caused by inadequate or improper rigging,

test lift the unit before attempting to install it on the roof. To prevent injury, death, or

equipment damage when lifting, use ALL lifting points.

Test lift the unit to be sure that it is secure and the weight is balanced. Lift the unit slowly, following safe lifting proce-

dures.

Discharge End View

Control Side View

MAPS A, B, or C Cabinet

MAPS A, B, or C Cabinet

Spreader bars

are REQUIRED.

Four Lifting Points - one at each corner.

Lift straight up with vertical force only.

After test lift, adjust cable length as

needed so that the unit will remain

horizontal throughout the lift.

FIGURE 14A - Rigging and

Lifting a MAPS

®

A, B, or C

Cabinet using four lifting

points and spreader bars
