71M651x Software User’s Guide

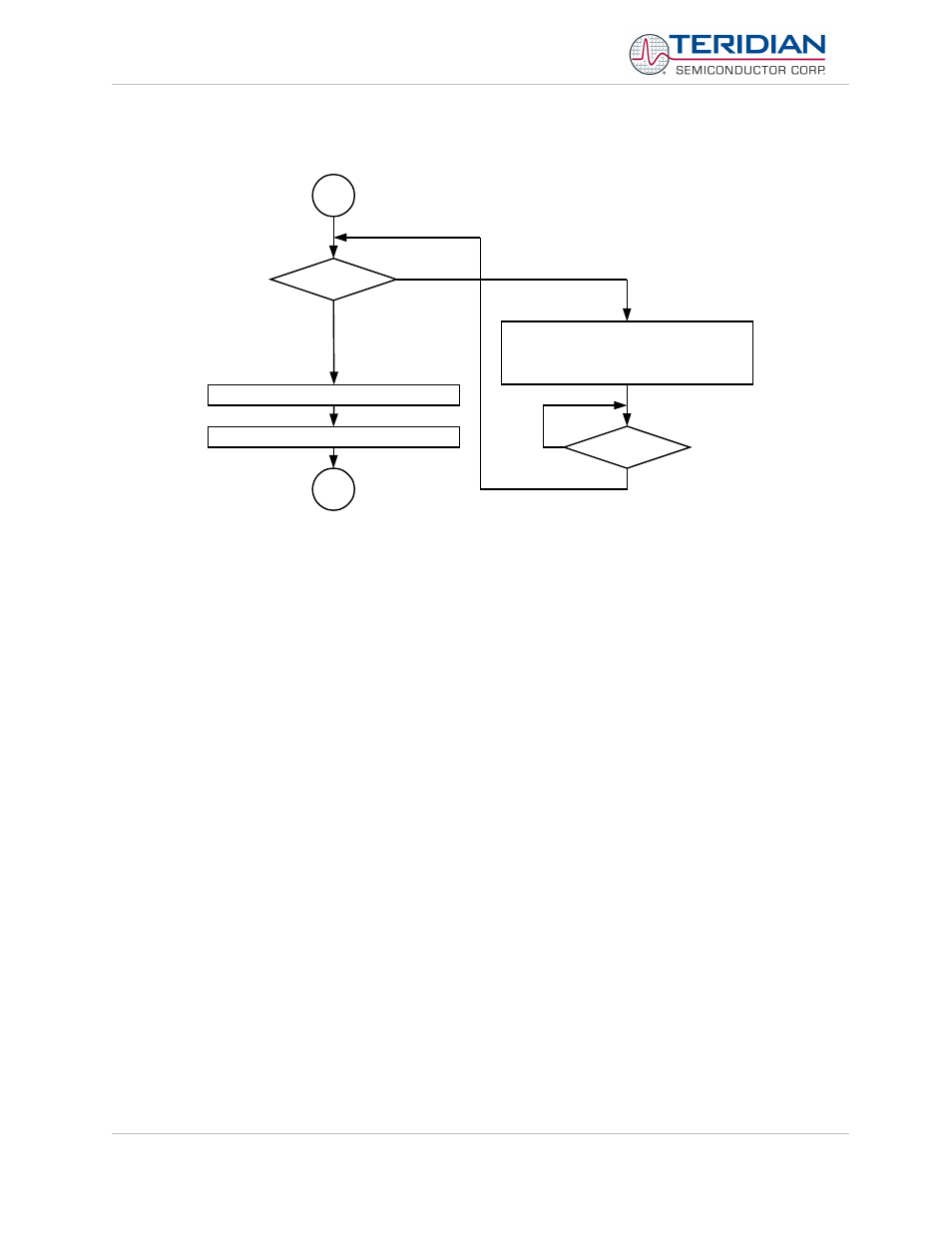

count==0?

EECTRL = 0x05 (stop command)

Clear all registers

End

NO

EEDATA= *(destination++)

EECTRL = 0x03 (multiple write with ACK command)

count- -

Start

interrupt rcvd?

(INT5)

Figure 5-21: Multi-Byte Write

Notes:

For larger EEPROMS 1010xxR can be the first command (R=1 for read, R = 0 for write operation).

The START command should be sent to the EEPROM before any read or write operation

The algorithms cover single and multi-byte operations limited to a single page.

EEPROMs are organized in pages. In general, ATMEL EEPROMs have 1Kbyte per page (256 x 32 bits).
When reading, no special requirements with respect to page boundaries apply.

Special precautions apply when a page boundary is crossed for write operations: When the end of a page is
reached, the write.to the next page has to be preceded by a START command.

EEPROMs typically respond to START commands with 5ms delay.

Revision 2.4

TERIDIAN Proprietary

63 of 137
