71M651x Software User’s Guide
The 71M6511 and 71M6513 Demo Board User’s Manuals contain instructions on how to connect the serial cable.

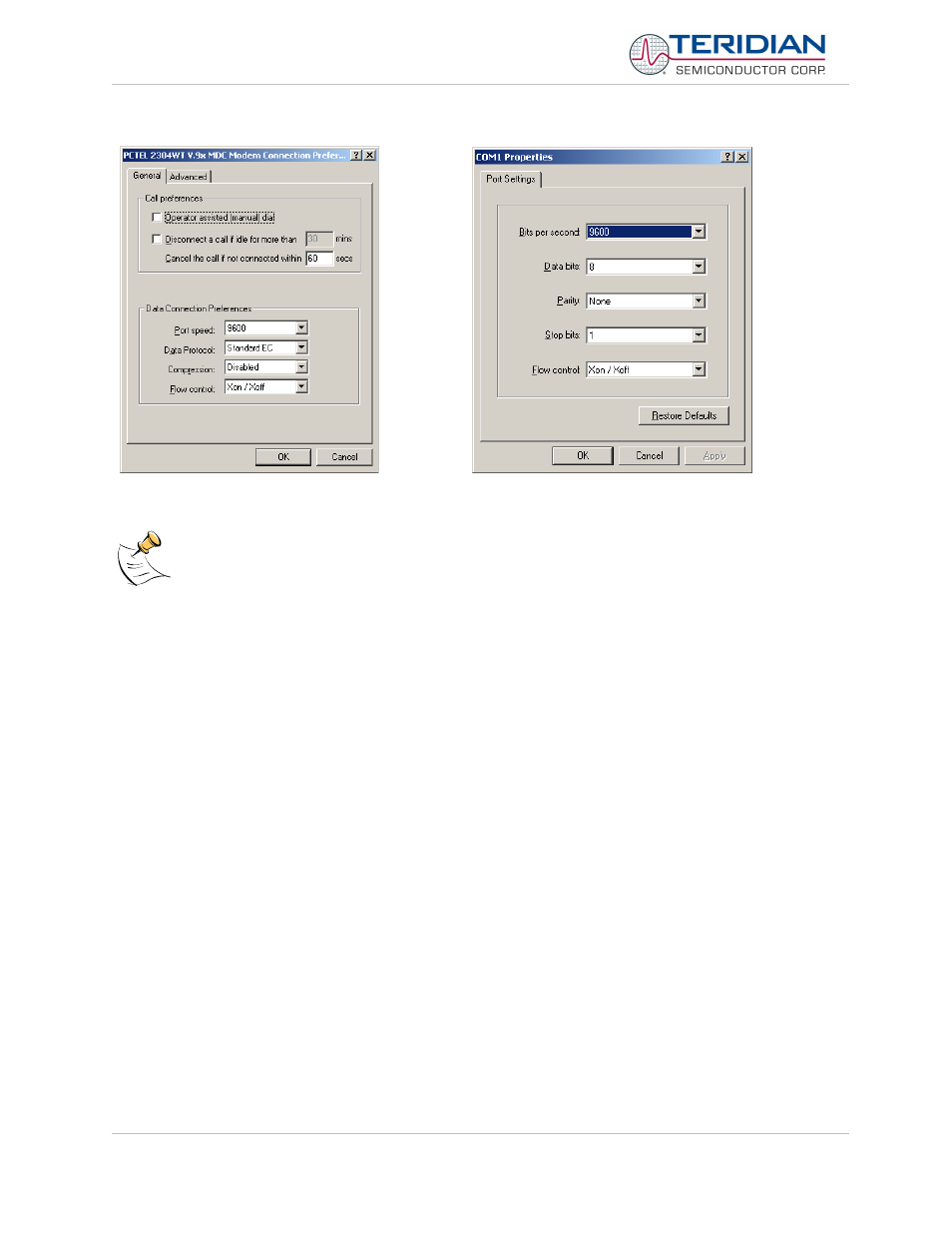

Figure 3-1: Port Speed and Handshake Setup (left) and Port Configuration Setup (right)
HyperTerminal can be found by selecting Programs Accessories  Communications from the Windows
 start menu. The connection parameters are configured by selecting File  Properties and then by
pressing the Configure button. Port speed and flow control are configured under the General tab (figure 1-
3, left), bit settings are configured by pressing the Configure button (figure 3-1, right), as shown below.
