71M651x Software User’s Guide
4.3.INSTALLING THE ADM51 USB DRIVER
The Wemu51 program communicates with the emulator ADM51 via the USB interface of the PC. The USB driver for
the ADM51 has to be installed prior to using the emulator. After plugging in the USB cable into the PC and the ADM51
ICE the status light of the ADM51 emulator should come on.

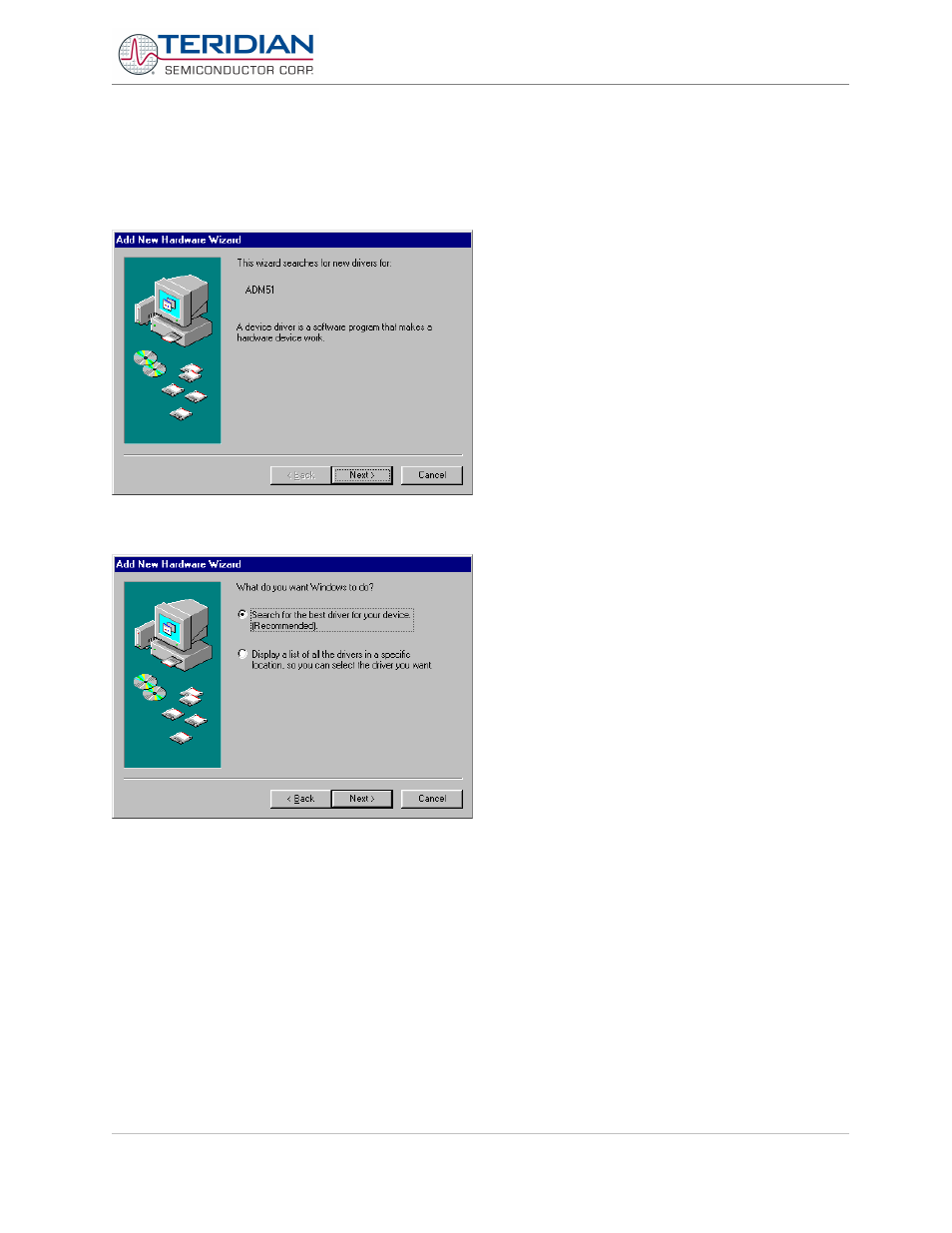

A dialog box will appear, asking you to install the ADM51 driver.
Click Next. Another dialog box will appear, asking how to search for the driver. Use the recommended method.
Click Next.
Another screen (not shown) will appear asking to locate the driver. Select Specific Path and browse to:
C:\Program Files\Signum Systems\Wemu51\Drivers\USB. Click Next.
