71M651x Software User’s Guide

5.2.PROGRAM FLOW

5.2.1. Startup and Initialization

The top-level functionality of the Demo Board is controlled by the high-level functions. As with every C program, the
core of the function is in the main() program. The main() program is contained in the demo.c source file. It performs
the following steps (see Figure 5-1, Figure 5-2, and Figure 5-3):

1.

Reset watchdog timer

2.

Initialization for hardware, pointers, metering variables, UART buffers and pointers, CE, restoration of
calibration coefficients, initialization of LCD w/ “HELLO” message), enabling CE and pulse generators.

3.

Assign program state (idle state or command mode state) to be entered next.

4.

In an endless loop, jump to idle state and command mode state in turns. During the idle state, background
tasks are performed, such as process timers, CE updates, CE display. During the command state, the
command line interface (CLI) is serviced (Figure 5-4).

Disable All

Interrupts

Disable 651x

Watchdog

Init IDATA

Init STACK

JUMP

to Init

RESET

JUMP

to

MAIN

INIT

Watchdog Timer

reset

INIT

MAIN

IDLE

(Background)

Command

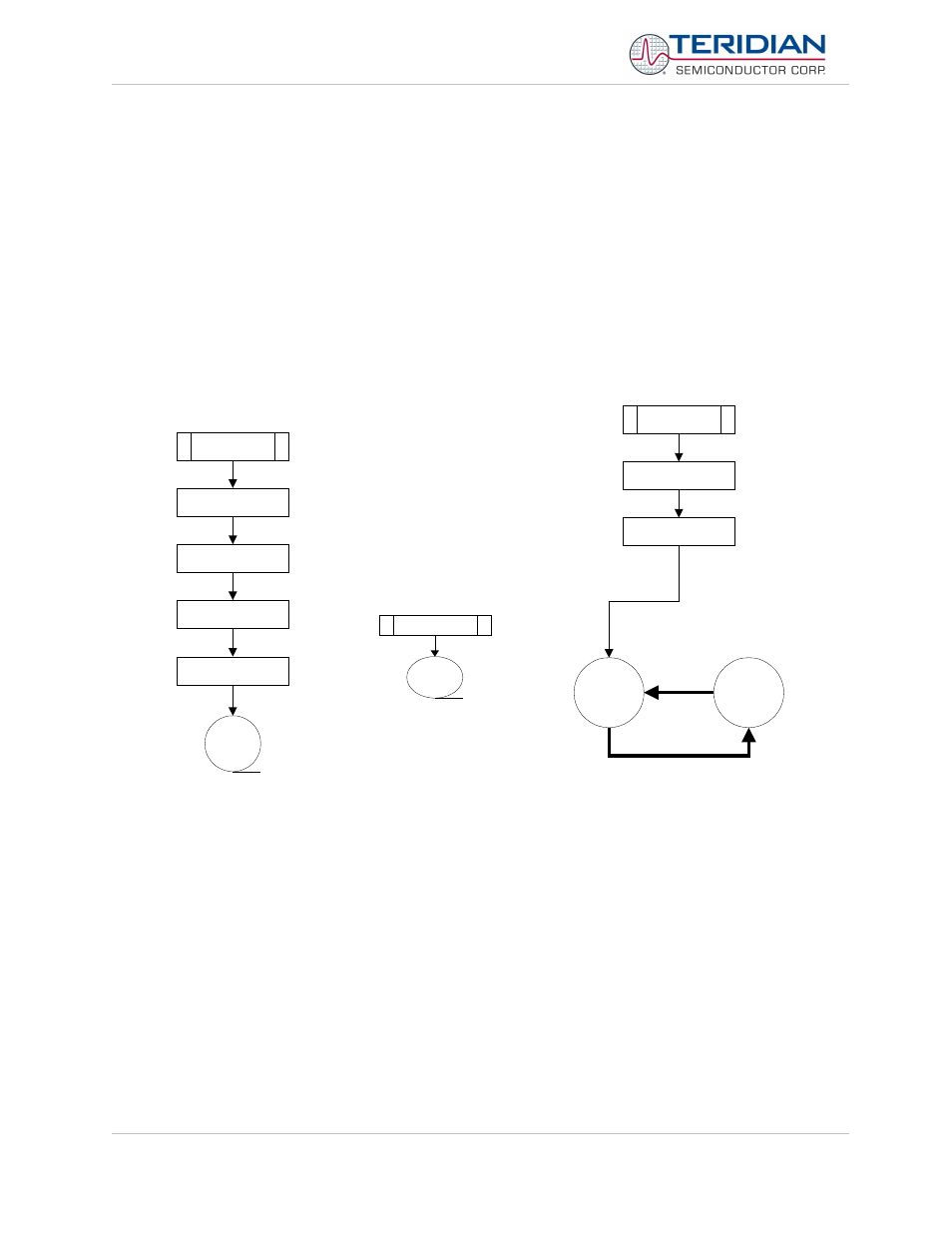

Figure 5-1: STARTUP.A51

Figure 5-2: INIT.A51

Figure 5-3: DEMO.C
