7-4 ADS FlowShark Pulse O&M Manual

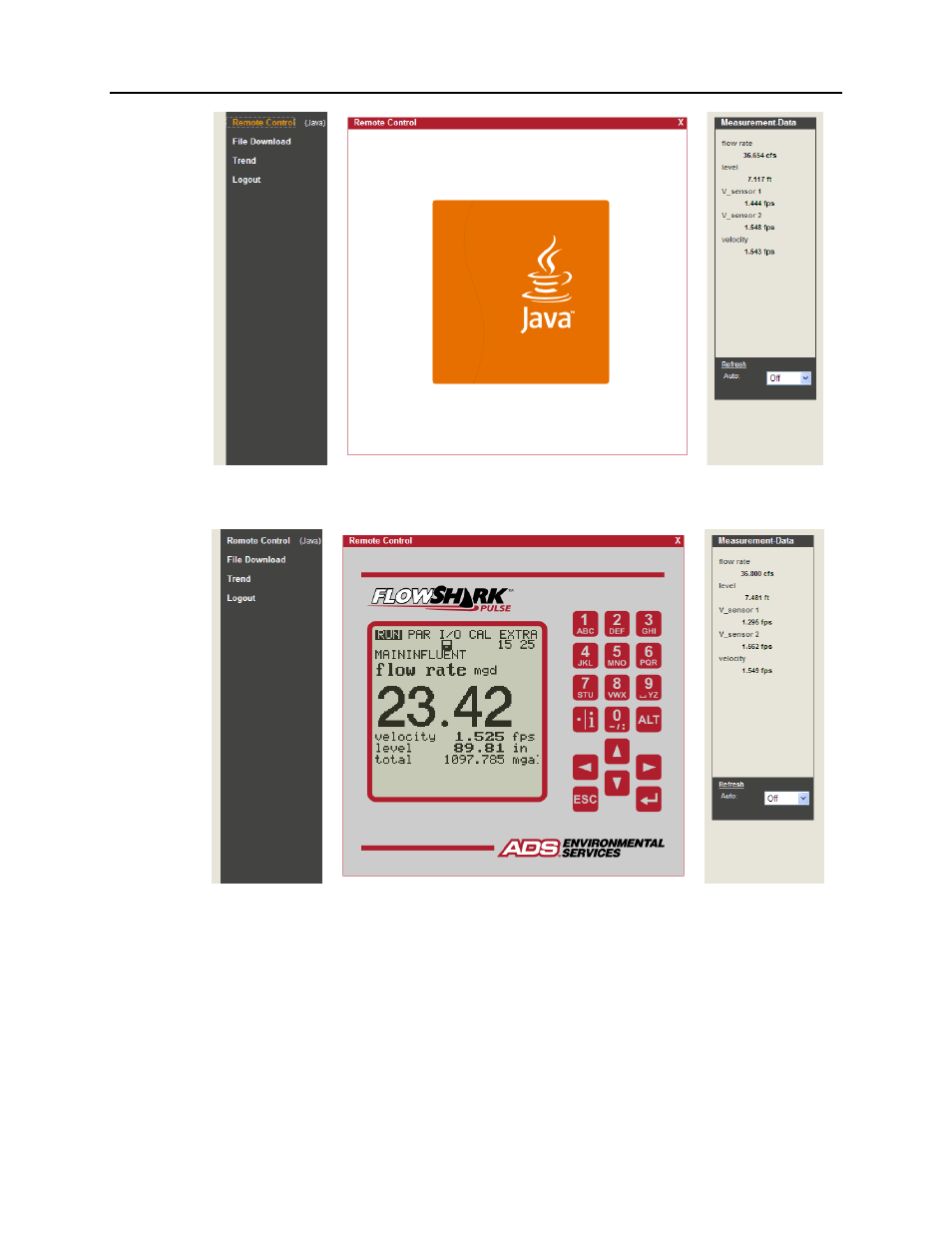

Figure 7-3 Launching the Java ® Applet
After successfully launching Java
™
, the FlowShark Pulse screen displays.
Figure 7-4 Viewing the connection online
The user can now operate the FlowShark Pulse via the PC or laptop computer
keyboard (using the left, right, up, and down arrow keys and the Enter, ESC and
ALT keys) as though the user were using the keys on the front of the unit. Another
available method for operating the unit involves clicking the virtual keys on the
screen using a mouse.
The user may experience delays in response due to the method of transmission.
Therefore, ADS recommends avoiding quick, consecutive control entries. After
