Installation 6-37
z
Ethernet connection over a TCP/IP network connection through an Ethernet
hub or switch (see Figure 6-45) using patch cables
z
Network server connection via DHCP (Dynamic Host Configuration Protocol)
and/or DNS (Domain Name Server) – See Figure 6-46.
z
Remote communication through a GSM/GPRS communication device
(gateway) – See Figure 6-47.
FlowShark Pulse
TCP/IP network
PC/Laptop/Server
Address http://192.168.003.084
Simply input IP address
Will call up the integrated
web server automatically.
HUB/Switch
TCP/IP network

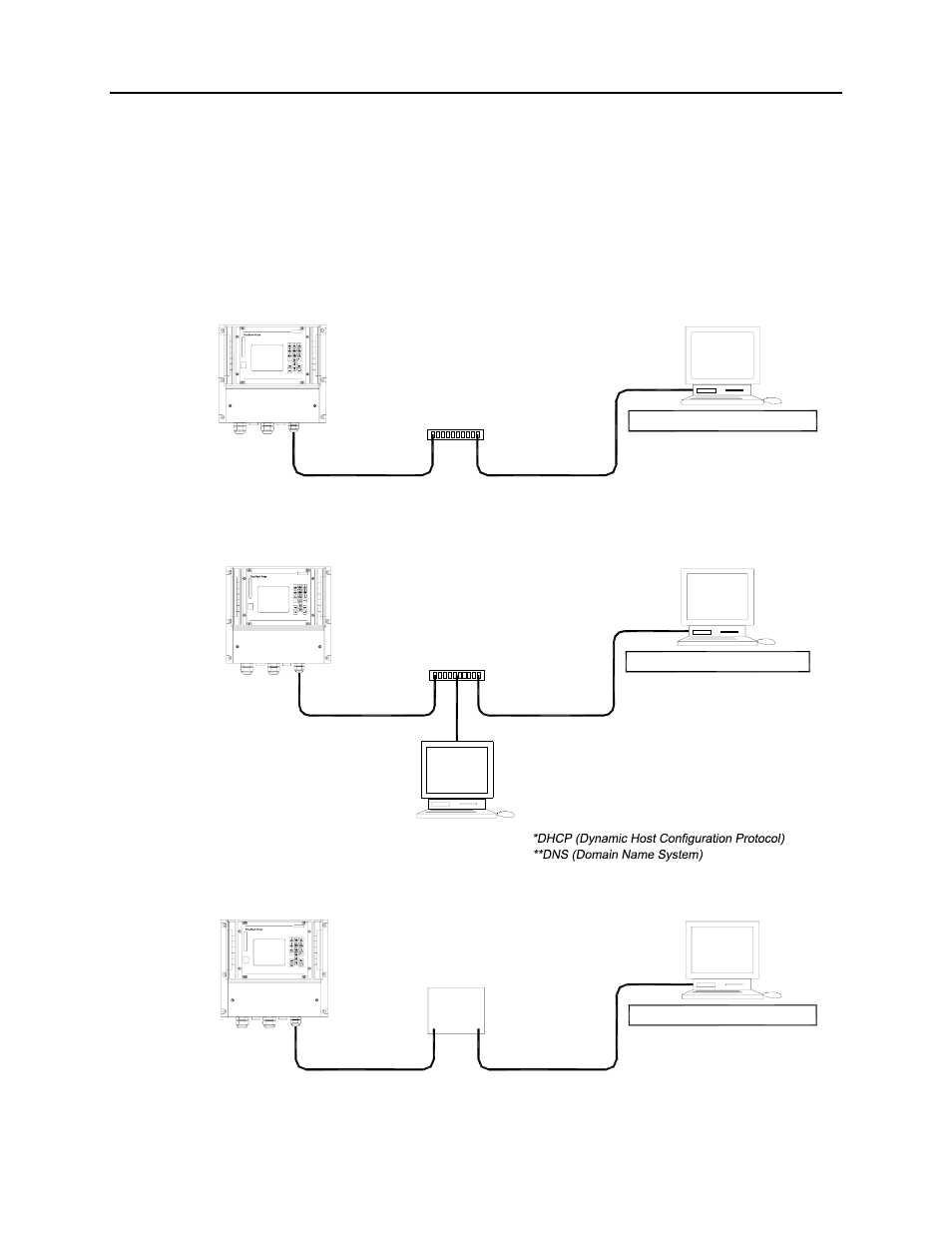

Figure 6-45 Communication without a server
FlowShark Pulse
Client
Address http://192.168.003.084
Simply input IP address or name
Will call up the integrated
web server automatically.
Server
The DHCP-Server creates an assignment
from the MAC address (hardware) of the
FlowShark Pulse to an IP address. If you
wish to use a DNS additionally, it is
necessary to assign a name to the
IP address.
TCP/IP network
HUB/Switch
TCP/IP network
Figure 6-46 Communication with a server
FlowShark Pulse
TCP/IP
TCP/IP
Address http://192.168.003.084
Simply input IP address or name
Will call up the integrated
web server automatically.
Static IP Address SIM Card
GSM/GPRS Gateway fitted with
PC/Laptop/Server
Figure 6-47 Communication through a GSM/GPRS gateway
