Parameter Settings 8-41

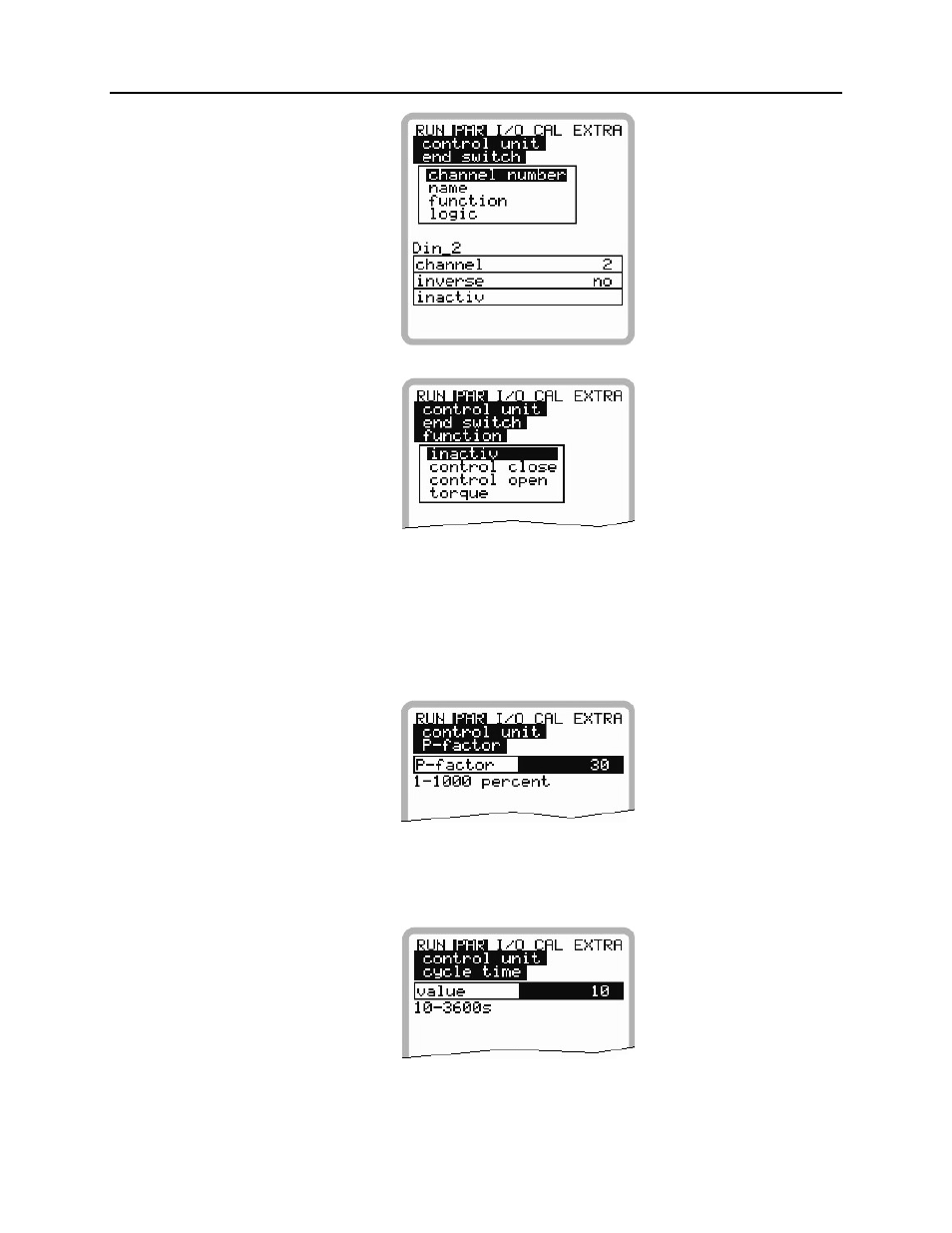

Figure 8-56 End switch assignment
Figure 8-57 Possible functions
P-Factor
The P (proportionality) factor indicates the degree to which the regulating time will
be affected when a deviation
∆ w from setpoint w occurs. The higher the
proportionality factor, the longer the regulating time of the slide valve at the same
control deviation.
Figure 8-58 P-Factor setting
Interval/cycle time
Set the processing interval for the controller.
Figure 8-59 Setting the interval
