6-32 ADS FlowShark Pulse O&M Manual

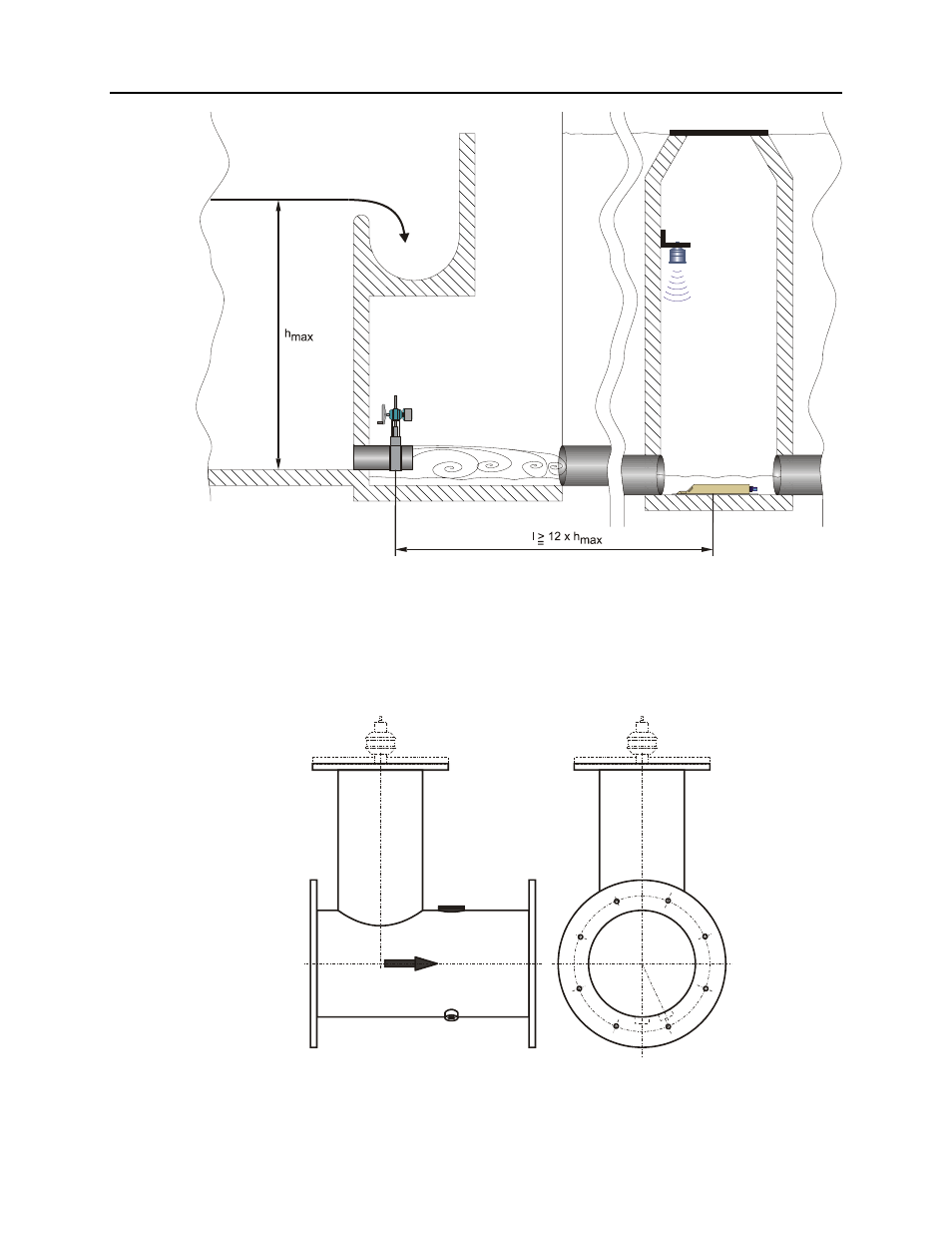

Figure 6-42 Setting up measurement to occur behind the slide valve
Please note that extended run times delay feedback from measurement and control.
Therefore, program the control to respond slowly.
If maintaining a minimum distance is not possible, install flow calming elements,
such as rebounding surfaces or returns. Custom design these installations according
to the specific application and contact ADS for guidance.
Figure 6-43 Pipe measuring section
