Parameter Settings

8-15

z

2r Egg (height-to-width ratio = 1:1)

z

Q = f(h) (function of height – Lookup table)

z

Ellipse

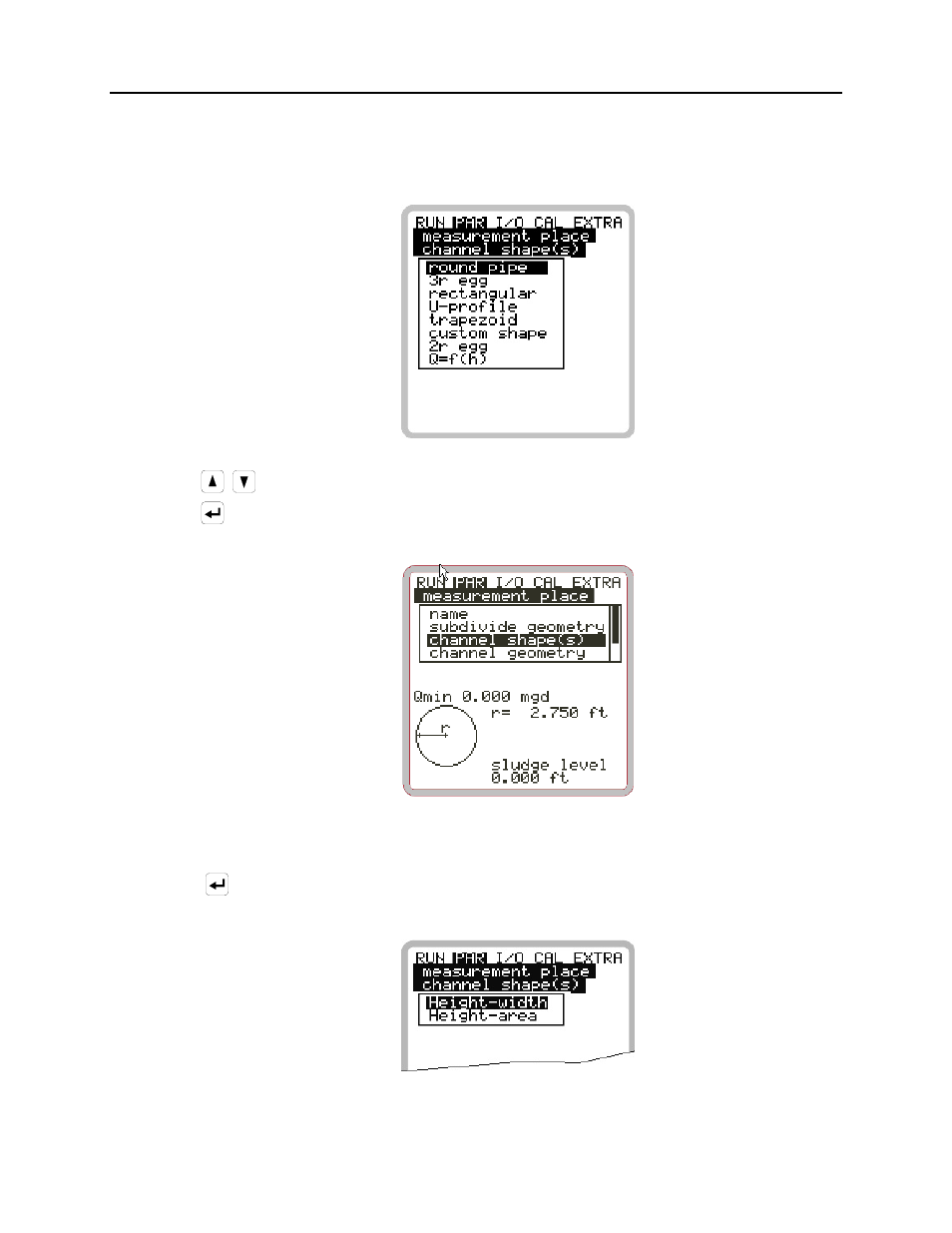

Figure 8-21 Selecting the shape of the pipe

Select pipe shape using the up and down keys.

Confirm selection by pressing Enter.

The profile created displays in the programming mode screen.

Figure 8-22 Selected profile

If the existing profile does not correspond with any of the available options from
which to select, choose Custom shape.

Confirm by pressing Enter.

A message displays, requesting the known dimensional relationship.

Figure 8-23 Custom shape menu
