8-72 ADS FlowShark Pulse O&M Manual
Simulating analog inputs and outputs may be performed only by
trained, specialized electricians with in-depth knowledge of the
facility’s control system. In addition, safety personnel must be
available at all times.
The following system must be set to manual operation mode.
Actuators or similar devices must be disabled, if possible, or under
strict control to prevent damage.
Analog Outputs
This parameter allows the user to simulate FlowShark Pulse output signals.
After selecting analog outputs, enter the PIN again. This will prevent unauthorized
personnel from executing simulations during operation.

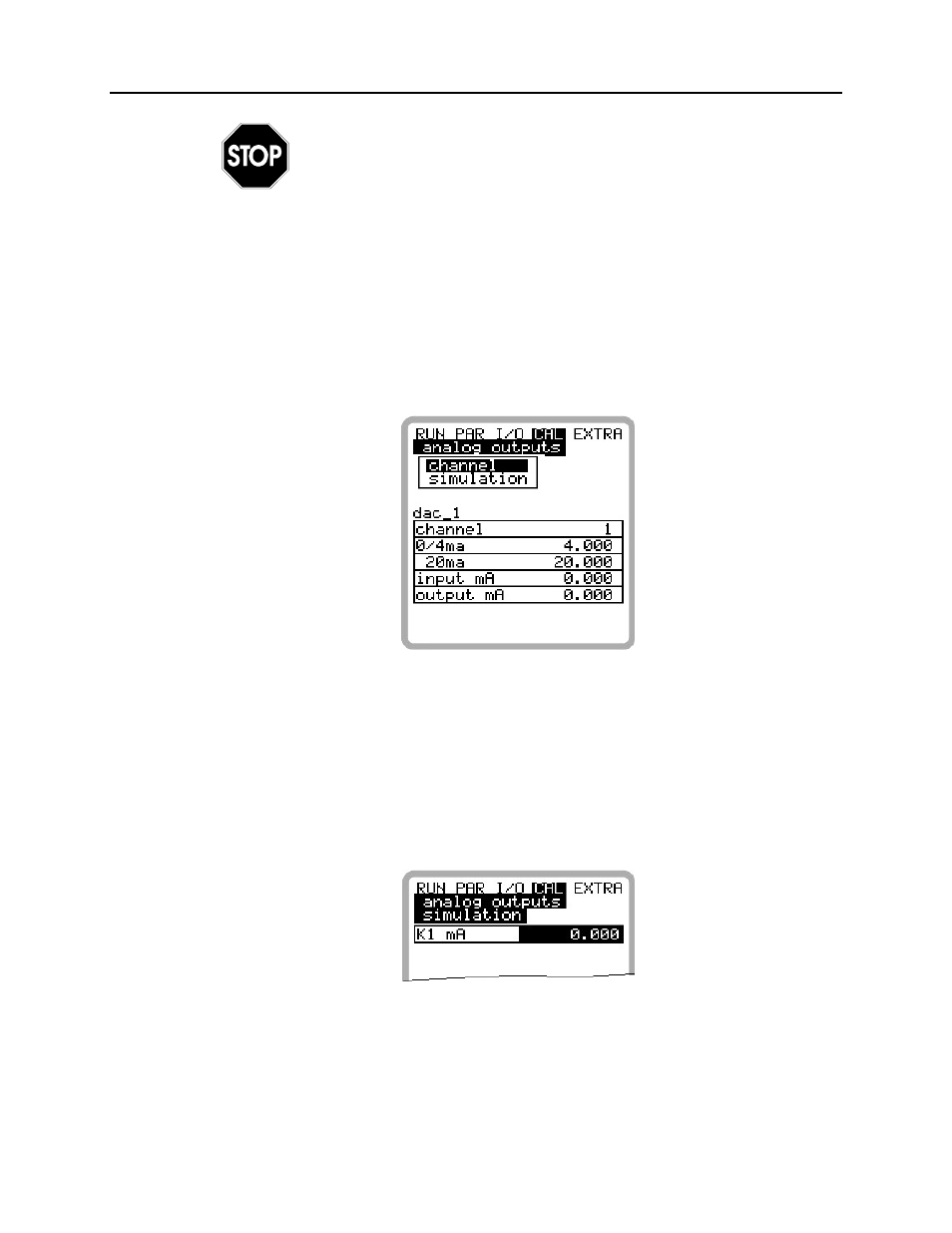

Figure 8-120 Selecting the analog output simulation
Channel number
Choose the analog output (from 1 through 4) to simulate by entering the respective
number or using the left or right arrow keys in the simulation main menu.
Simulation
Enter the desired value in mA and confirm by pressing Enter to output the signal
directly to the corresponding terminal.
Figure 8-121 Executing the simulation
Relay outputs
Select the desired relays to simulate by pressing the left or right arrow keys. The
relay number chosen will display on the first line of the output table.
