6-16 ADS FlowShark Pulse O&M Manual
h
4-inch (10-cm) Dead Band
max
79 inches
(2
0
0 cm)

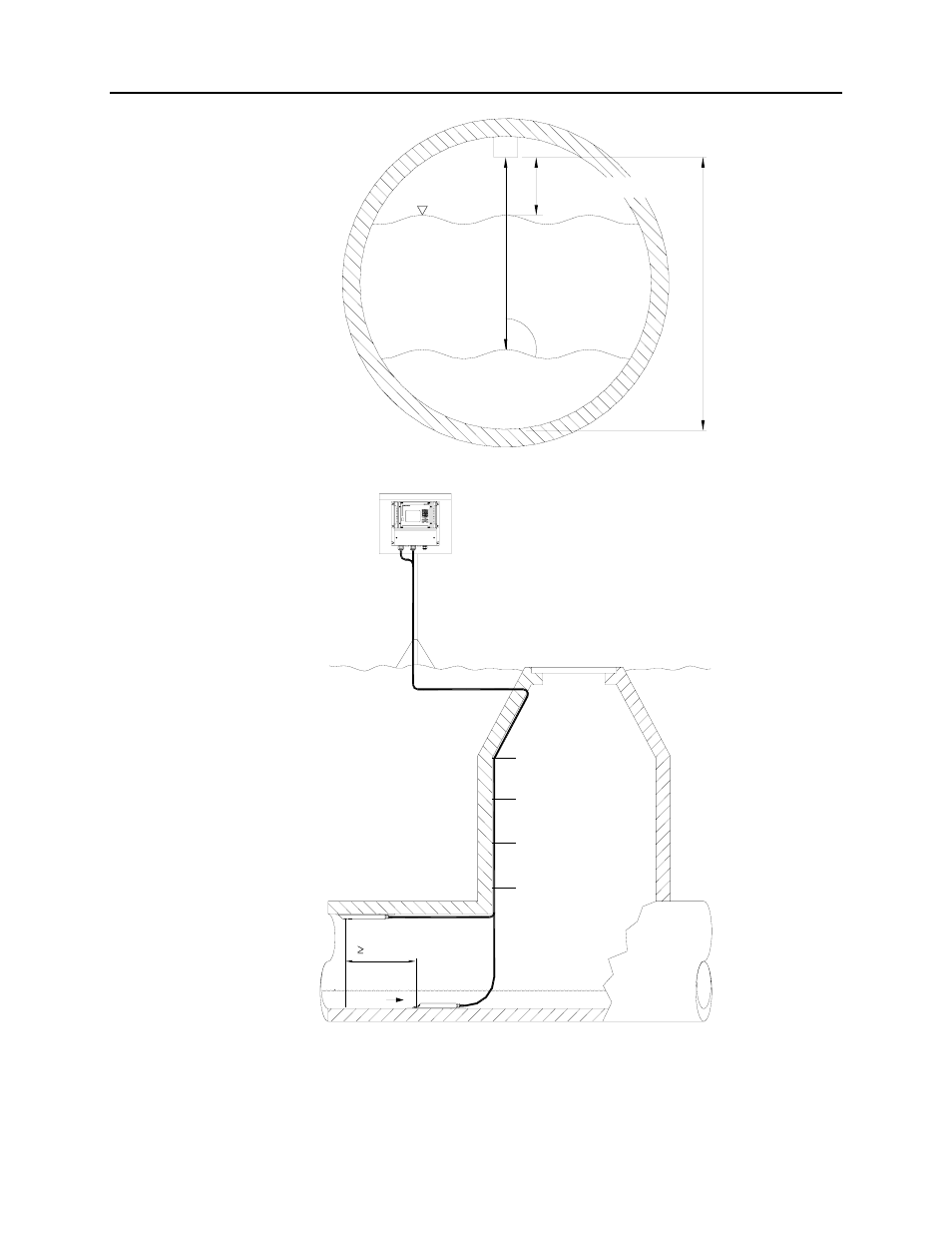

Figure 6-20 Installing the air-ultrasonic sensor
FLOW
4 in (10 cm)
L
Figure 6-21 Mounting example
For a permanent installation, secure the air-ultrasonic sensor to the top of the pipe
with 3 stainless steel screws (M5) and corresponding dowels (Figure 6-22).
