Parameter Menu (PAR)
This is the most comprehensive and critical menu involved in setting FlowShark
Pulse parameters. While the user can modify many different parameters, the system
typically only requires the user to set the following parameters:
z Location name
z Pipe shape
z Pipe dimensions
z Sensor types
z Analog output (function, signal range, and measurement range)
z Relay output (function and values)
All other functions correspond to unique circumstances or applications, such as
special pipes, regulator mode, storage mode, or unusual hydraulic conditions.
Contact an ADS representative for assistance in setting these parameters.
This instruction manual describes all configuration and
programming options for the FlowShark Pulse. The device type
determines the inputs and outputs available. While these inputs
and outputs may be programmable, they may not be available for
use or connection.
This applies to the FlowShark Pulse Model 10, which has only 2
analog outputs, 2 relay outputs, 1 analog input, and no digital
input. The Model 10 cannot serve as a controller.
The parameter menu (PAR) includes 11 submenus described in the following
sections.
Parameter Menu: Measurement Place

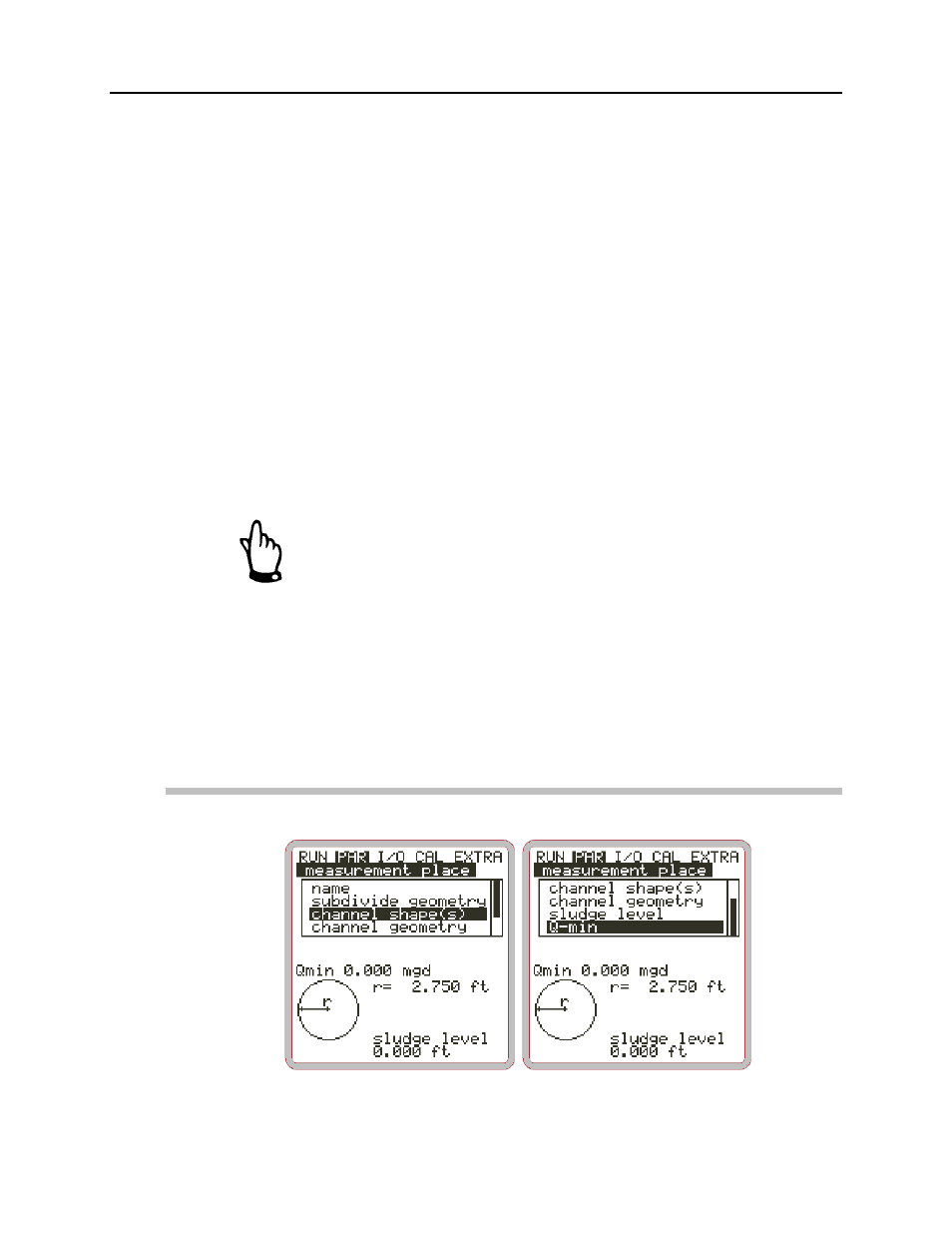

Figure 8-18 Measurement place submenu
