Error mode

Define the desired analog output condition for errors, such as cable breaks or a CPU
failure.

Pressing this key offers the following options for selection:

z

0 mA

z

Hold (This option retains the latest valid signal value until the error has been
removed or no longer exists.)

z

4 mA

z

20.5 mA

Parameter Menu: Digital Outputs

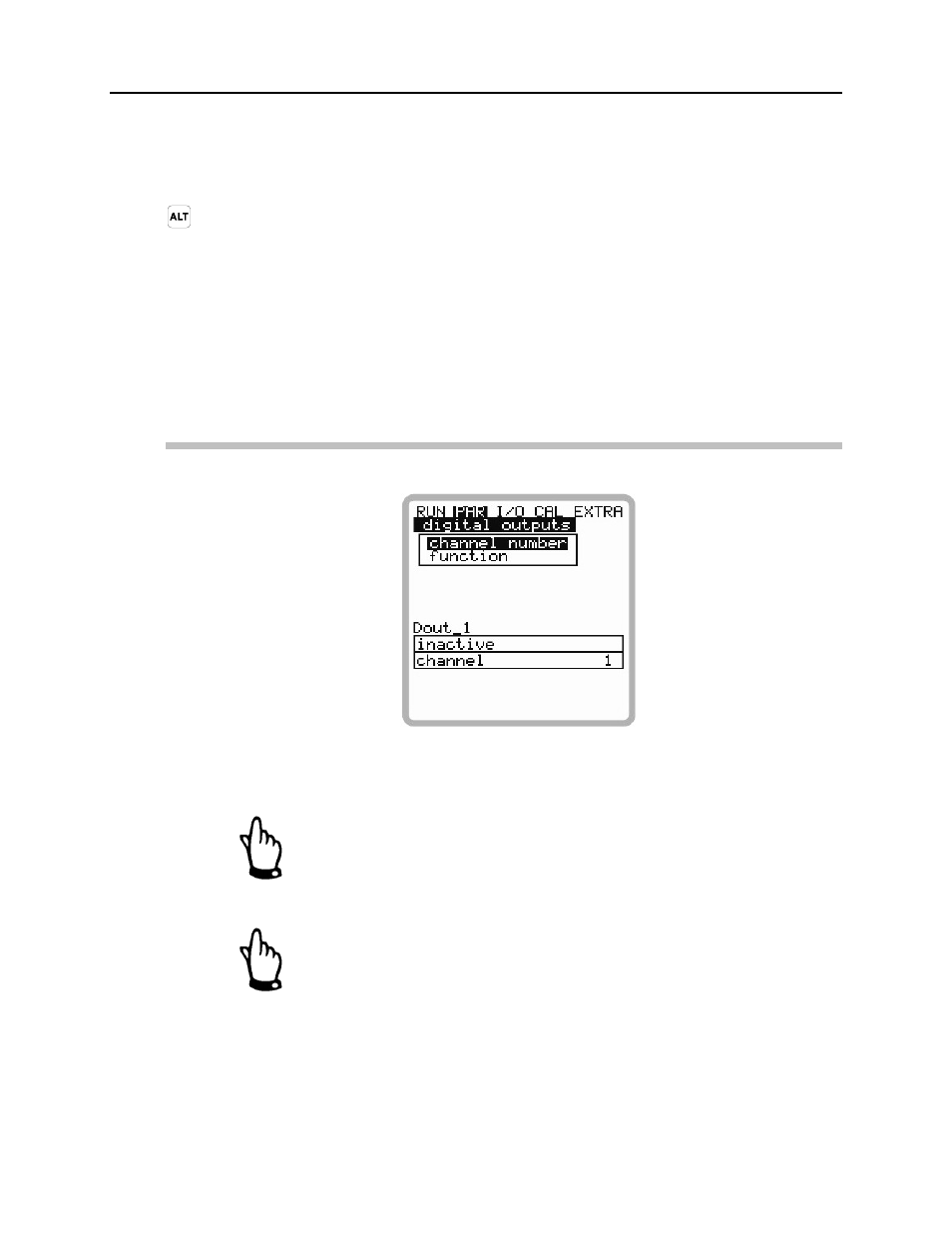

Figure 8-48 Digital outputs – submenu

This menu allows the user to define both functions and accompanying parameters,
such as limit values and pulse duration, for individual relay outputs.

Typically, the user can choose and set 5 relays; however, Model 10
transmitters have only 2 relays.

Relays 4 and 5 in Model 20 transmitters are dedicated for regulator
functions only when the regulator has been enabled.

Channel number

Select the relay, from relays 1–5, for which to set the following parameters.
