Parameter Settings 8-29
Channel Number
Select the appropriate analog input, from inputs 1–4, for which to set the following
parameters.
Name
(optional) Enter a name to which to save the analog input to the memory card. This
card is the only location in which this name will be saved.
To enter the name, follow the same procedure used in PAR > Measurement Place >
Name.
Function
Assign functions to the analog input selected under the Channel Number. Select
from among the following functions by pressing the ALT key:
z Analog input disabled – disabling the analog input
z Log value – saving/logging the analog input value (data logging function of
transmitter)
z Setpoint – enabling the analog input as the external setpoint when the unit is
in regulator mode
z Setpoint + Log – enabling and saving the analog input as the external setpoint
when the unit is in regulator mode
Measurement Span
Select the appropriate signal measurement span: 0-20 mA or 4-20 mA. Using an
optional 0-5 V or 0-10 V voltage input requires a corresponding modification to the
unit hardware. This modification should be performed only by ADS personnel.
Units
Select the appropriate unit of measure from the units table.

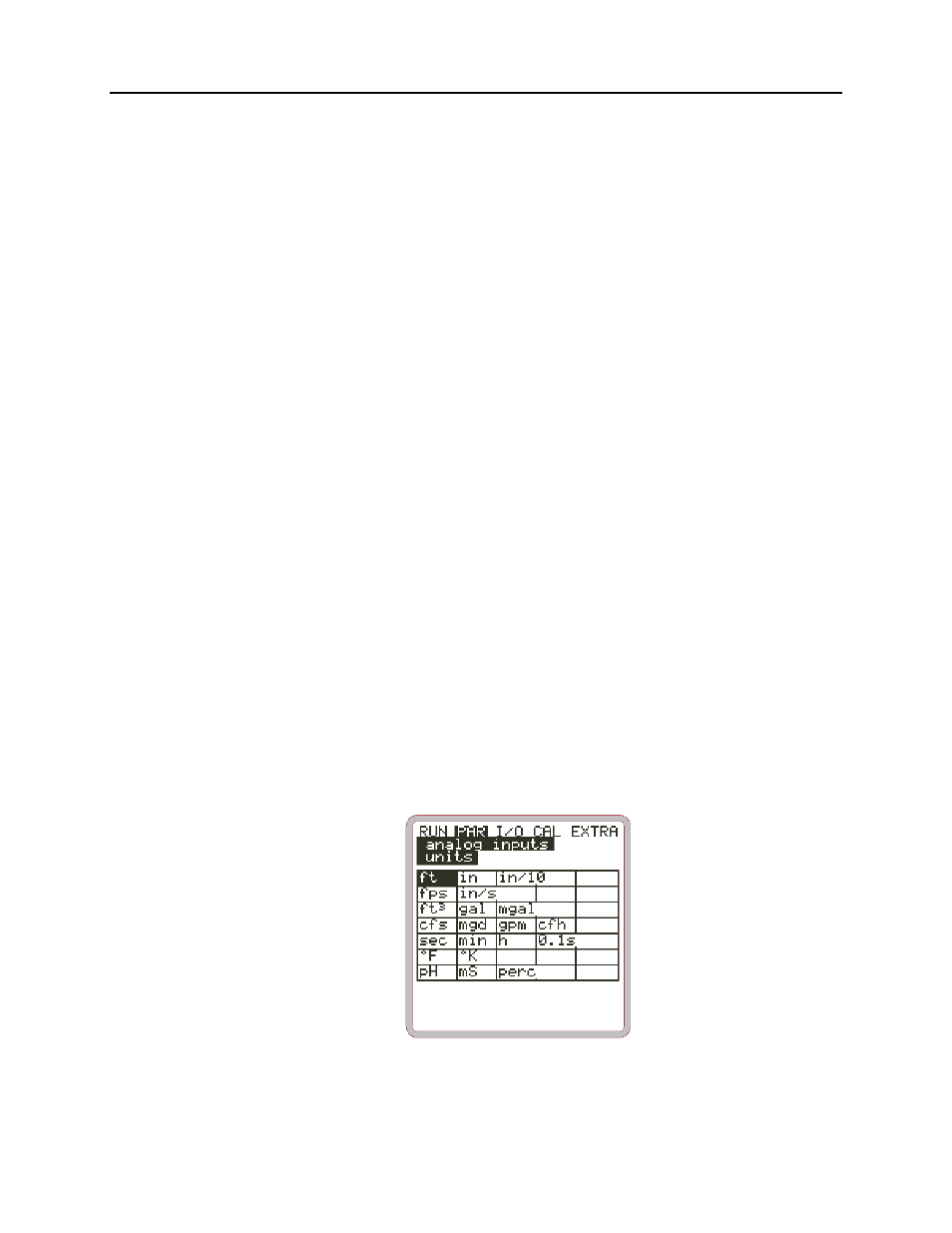

Figure 8-41 Units of measurement table
