Parameter Settings

8-59

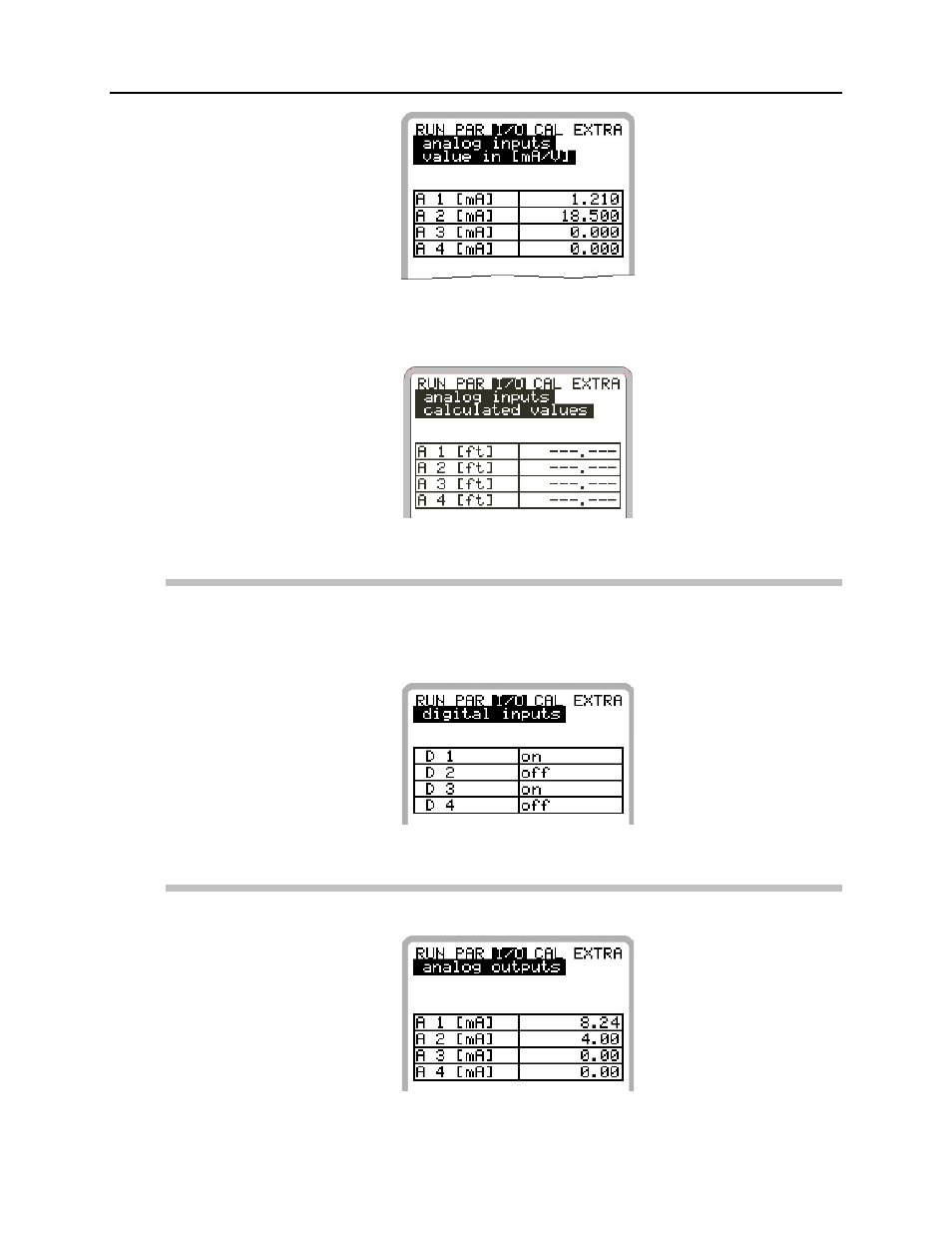

Figure 8-94 Analog value indication

Setting Calculated values without an available signal (>4 mA) will display the
following error screen:

Figure 8-95 Error screen

I/O Menu: Digital Inputs

The menu enables the user to view digital input values routed to the transmitter input
clamps. Displays OFF or ON.

Figure 8-96 Screen digital values

I/O Menu: Analog Outputs

Figure 8-97 Screen analog values
