Parameter Settings
8-49

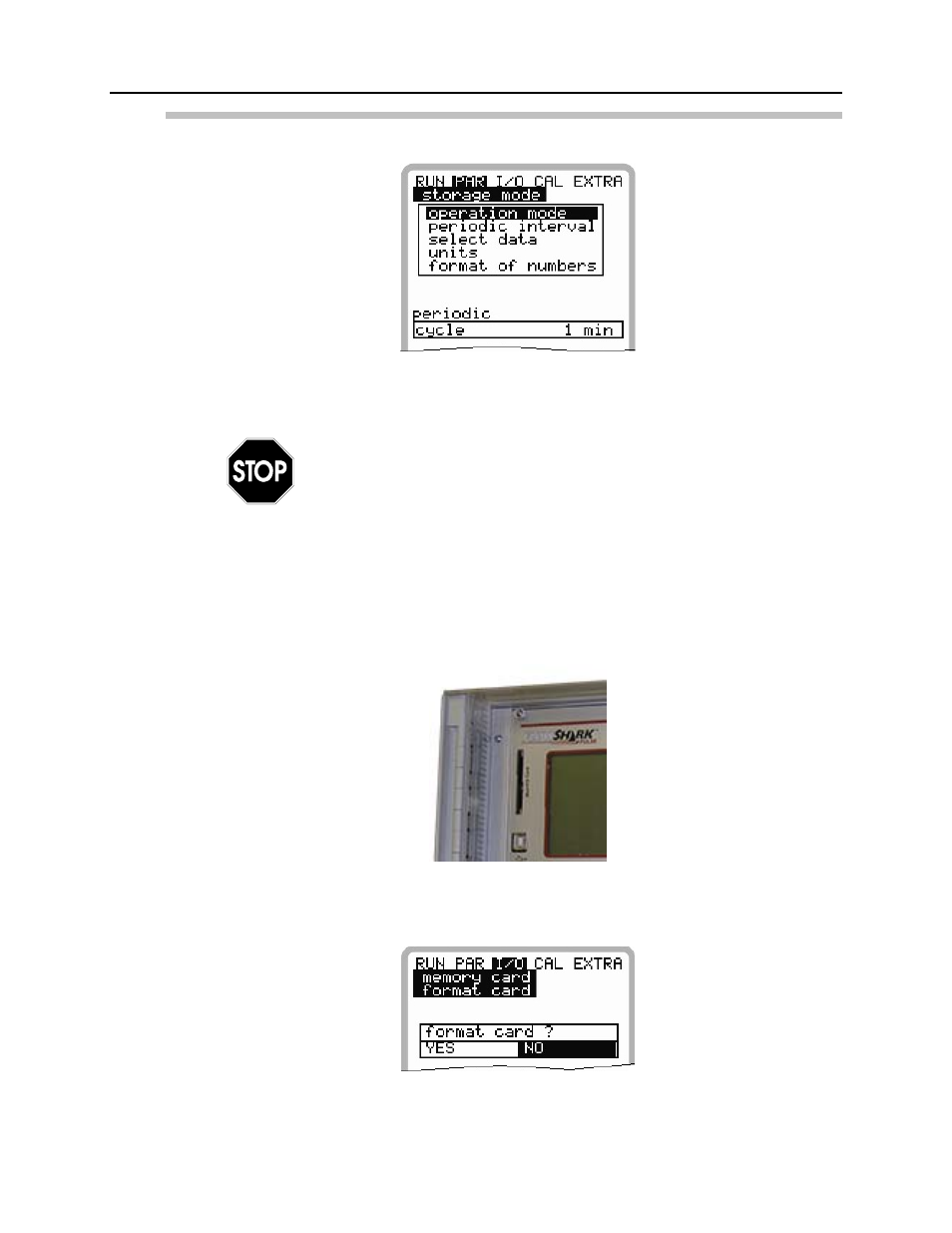

Parameter Menu: Memory Mode
Figure 8-75 Memory mode – submenu
Before accessing this menu, insert an ADS 16 to 128 (maximum) MB compact flash
card. When necessary, obtain this card through your ADS representative.
Use memory cards purchased only from ADS. Other
manufacturer’s cards may lead to irreversible loss of data,
measurement failure, or permanent transmitter reset.
Insert the card into the Memory Card slot on the unit’s faceplate. Orient the card so
that the side with the small holes is plugged into the unit. The card can plug into the
unit in only one way. Therefore, if it does not insert easily, please do not apply force.
Instead, rotate the card into the correct position and then attempt to re-insert it into
the unit. Make sure the card is seated securely.
Figure 8-76 Memory Card slot
After a new memory card has been installed and storage has been enabled in the
programming menu, the FlowShark Pulse will prompt the user to Format card.
Figure 8-77 Request to format the card
