Page 48
Installation 6-3
Enclosure Dimensions

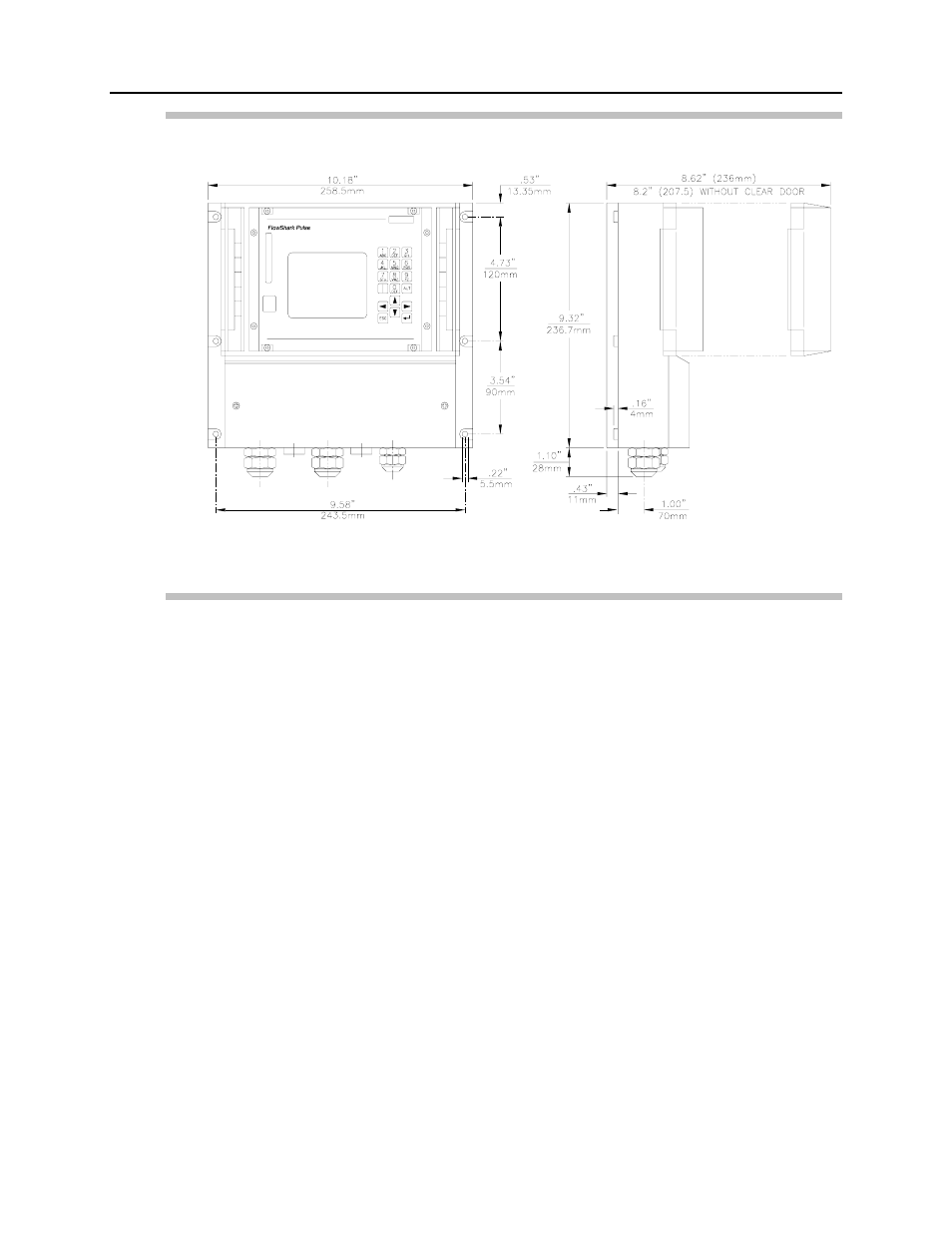

Fig 6-1 Wall mount enclosure
Transmitter Connection
General
The FlowShark Pulse transmitter is available in 2 different versions:
z
Model 10 standard version
z
Model 20 with supplemental connections for up to 3 flow velocity sensors,
digital inputs, and additional analog inputs/outputs plus controller function
Both models have the same clamp terminal marking. However, the Model 20
transmitter includes additional connections.
The wall mount enclosure has cable glands and dummy plugs. Some are screw-type
and some are enclosed for spare or additional parts. The transmitter model
determines the number and size of cable glands and dummy plugs.
Model 10 Transmitter:
z
2 glands M20 x 1.5
z
1 gland M16 x 1.5
z
2 plugs M20 x 1.5
z
2 plugs M16 x 1.5
