System Overview and Operation
4-5

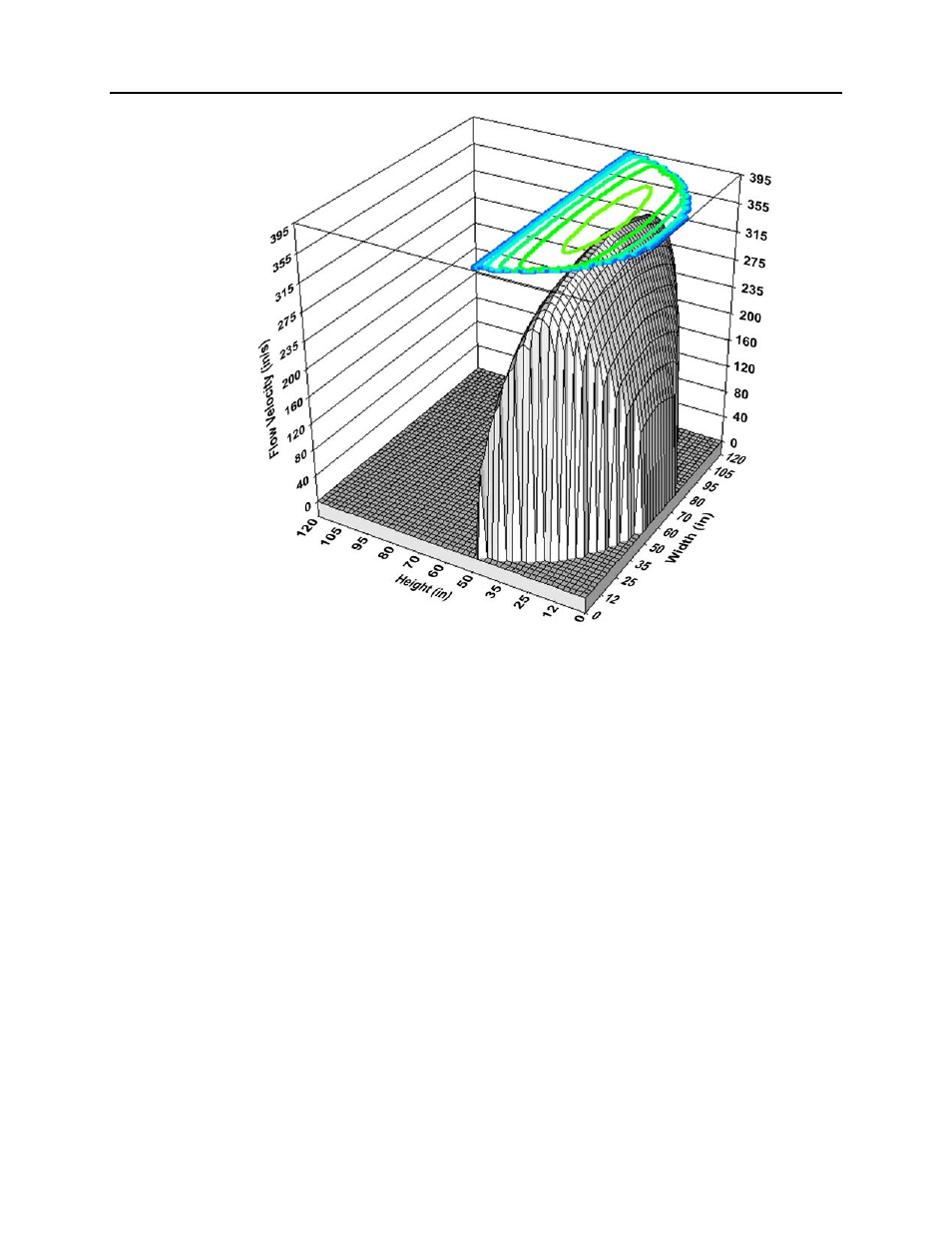

Figure 4-6 Calculated 3-dimensional flow profile
Flow rate can be calculated and displayed based on the flow velocity distribution,
pipe shape and dimensions, and flow depth. It also is available for display or output
to another device through either a free programmable analog signal or a pulse signal.
