Parameter Settings
8-27
Modifying the mounting location for the depth sensor requires
modifying the CAL > Velocity > Channel No. > h_crit parameter
by the same factor.

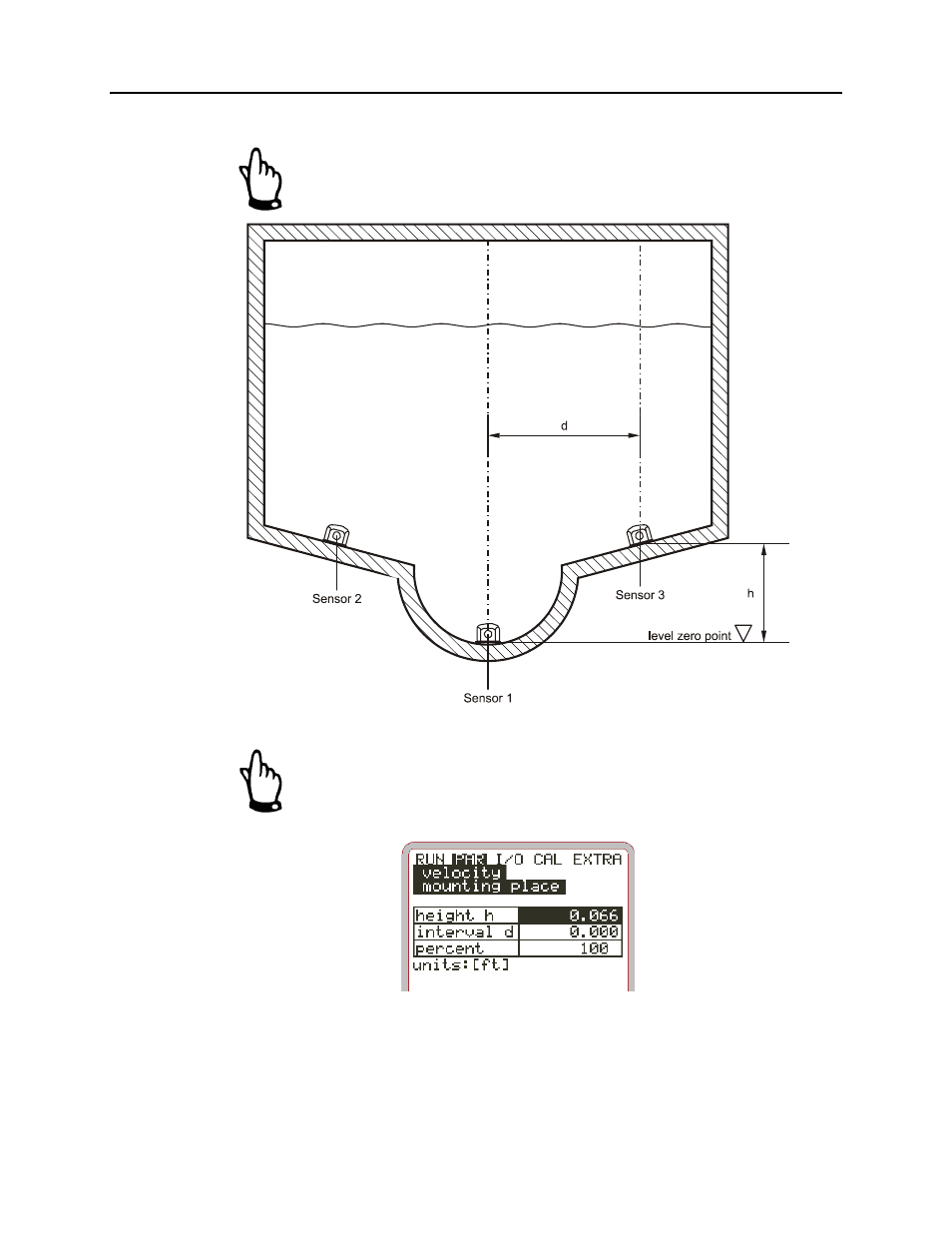

Figure 8-38 Sensor assignment
If sensors 2 and 3 are installed at a higher elevation than sensor 1,
enter the height difference for height h under the mounting place
menu option. Velocities occurring below this level will refer to
only sensor 1.
Figure 8-39 Assigning individual values for flow velocity sensors
Distance d represents the distance to the vertical profile center line. This parameter
currently is not applicable.
