Parameter Settings 8-51
Periodic interval
Select the periodic storage interval from 1 minute to 1 hour. The available intervals
include 1; 2; 3; 4; 5; 6; 10; 15; 20; 30, or 60 minutes. Entering a different value
manually will cause the FlowShark Pulse to set the interval to the valid (available)
interval that falls immediately before the value entered.

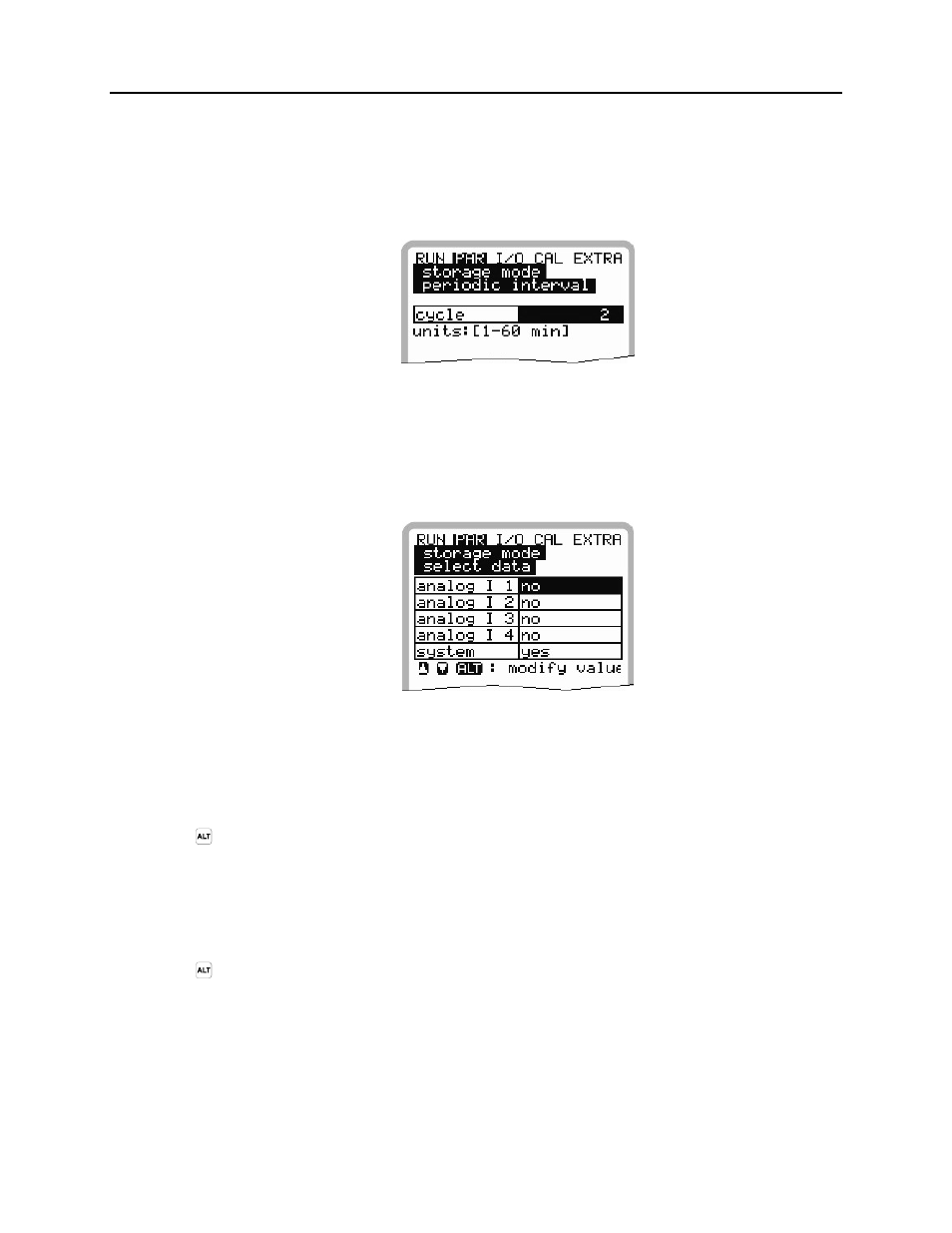

Figure 8-79 Entering the storage cycle
Select Data
Designate data sets to store in addition to the depth level, average flow velocity,
volume, and medium temperature, which are stored automatically.
Select among analog inputs 1, 2, 3, and 4 and system to designate the saving options.
Figure 8-80 Select data table
Analog I1 to I4
This setting applies only to Model 20 transmitters because it is equipped with
additional analog inputs.
Use this key to toggle between the following saving options:
z No – prevents analog input from being saved
z Yes – saves selected analog input
System
Use this key to toggle between the following saving options:
z No – prevents saving system parameters
z Yes – saves additional system parameters (all velocity gates and all depth data
from up to 3 depth sensors), system errors, error messages, and system
ON/OFF events
