6-8

ADS FlowShark Pulse O&M Manual

= Error! Changes in slope = changes in flow profile

= Distance depending on slope and flow velocity reading

l = min. 20 x diameter

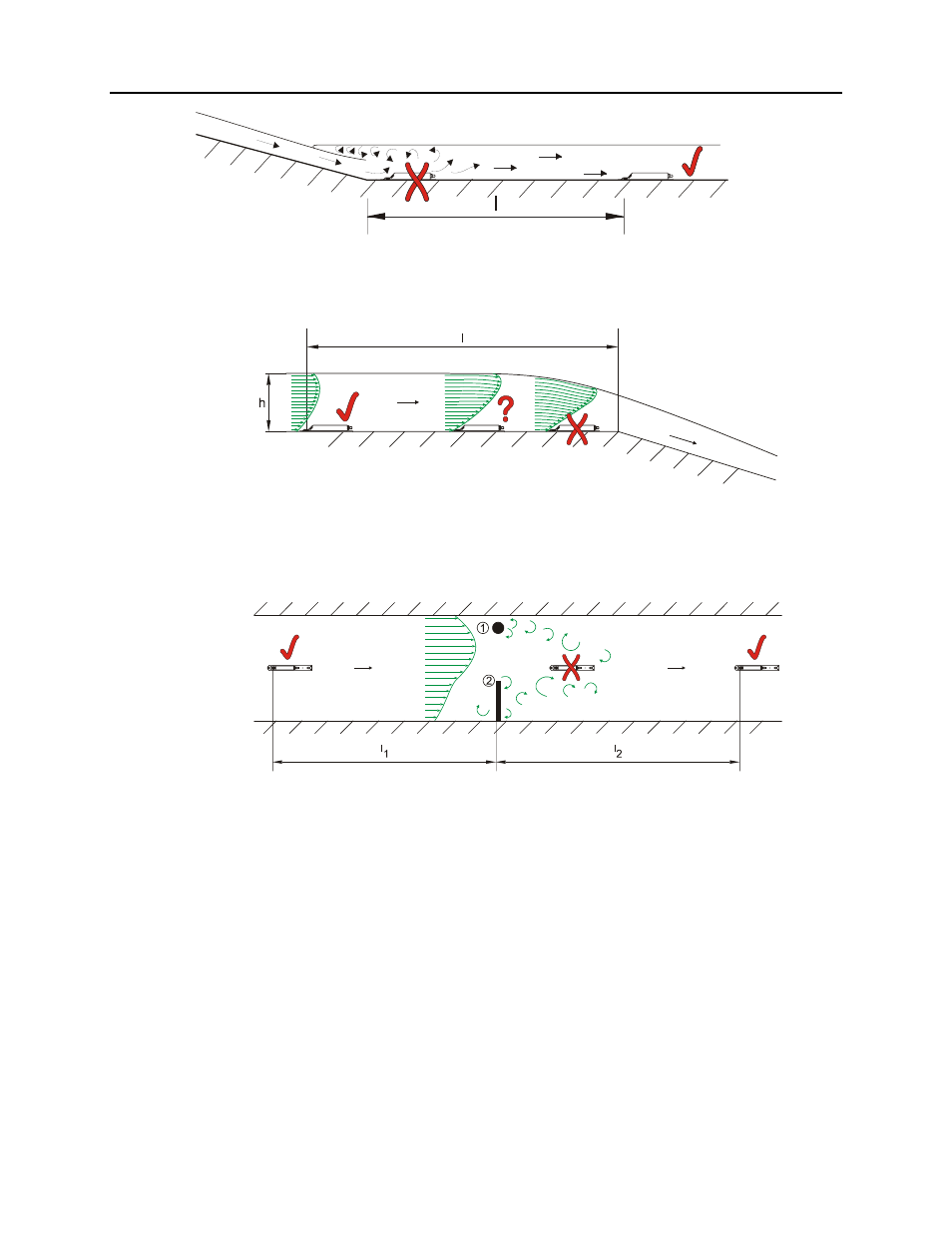

Figure 6-7 Error caused by changes in slope

= Error! Installed in draw-down

Depth measurement may fail + velocity and depth measurement may be erroneous

?

= Critical measurement point, not recommended! Flow begins to fall (or sink)

= Distance l = min. 5 x h

max

at place of installation

Figure 6-8 Error caused by changes in flow profile in front of slope fluctuation or fall

(1) = Fixtures such as samplers or similar

(2) = Obstruction

= Error! Caused by vorticity, tangential, and/or asymmetric flow

= Distance l

1

(upstream of obstruction) = minimum 5 x h

max

Distance

l

2

(downstream of obstruction) = minimum 10 x h

max

in case of flow velocities >1 m/s

Figure 6-9 Errors caused by equipment or obstructions
