Parameter Settings

8-19

Parameter Menu: Level

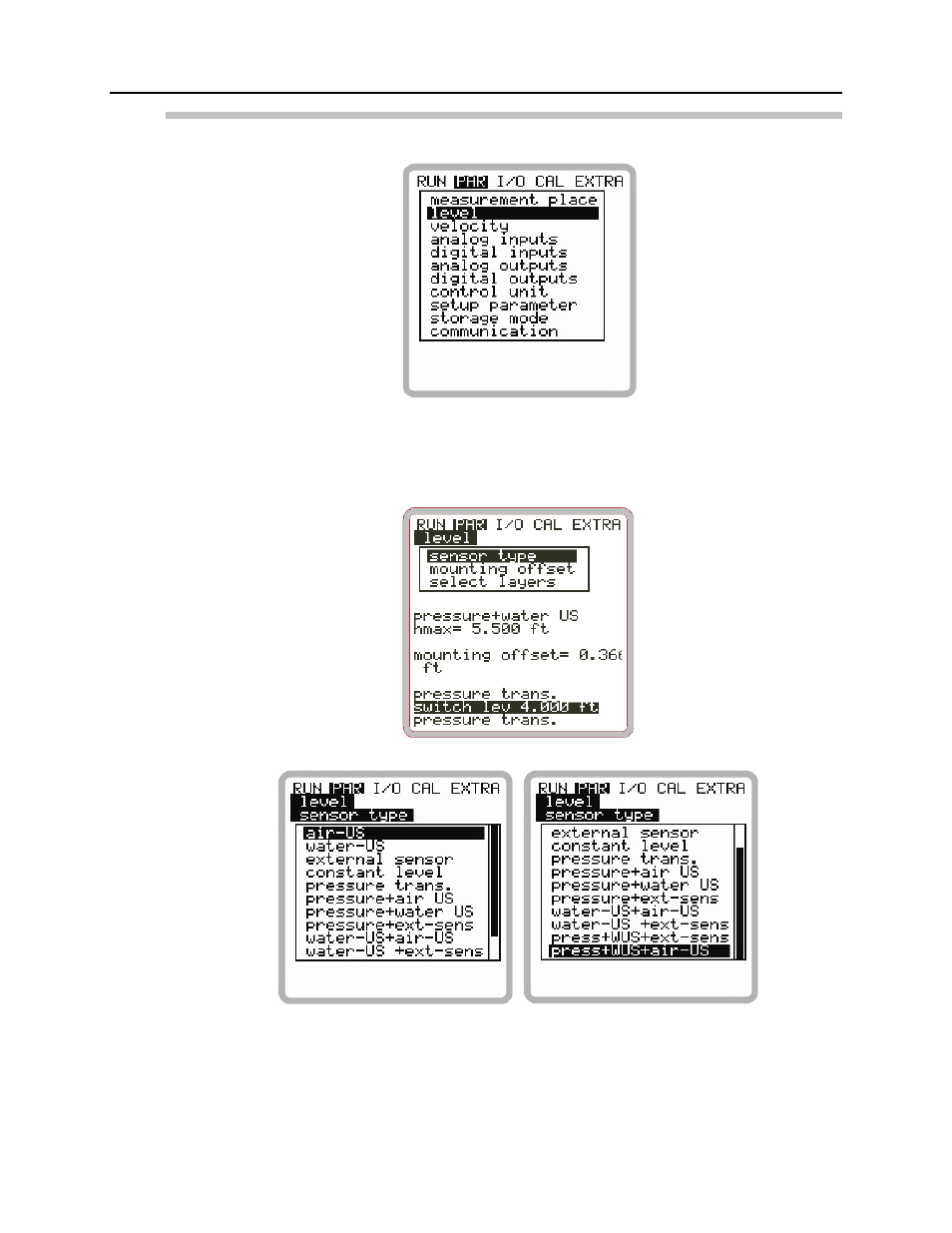

Figure 8-27 Level measurement menu

This menu allows the user to define the parameters regarding depth measurement.
The start screen (Figure 8-28) and parameters available for setting may vary based on
the sensor type selected.

Figure 8-28 Example for selected depth sensor

Figure 8-29 Designating sensor type
