AUTO SECTION CONTROL SETUP / 79
AI-120 TERMINAL SETUP
After IntelliAg setup, section control assignment must be identified in the
terminal for the following parameters at the System Setup menu.
• Number of sections to control
• Material application timing
• Switch assignment to sections
SECTIONS
Section control setup assigns what switches on the row shutoff switch box
enable and disable planter sections or outputs. Up to 24 sections
automatically populate to the Sections menu as configured in the IntelliAg
system.
NOTE: Section and width changes can
only be modified at the IntelliAg
Clutch Module Configuration
screen. To verify sections and dimensions:
1. At the System menu screen, press the Implement/Section Control/
Sections icons.
2. Verify number of sections displayed and the implement width listed in
the table are accurate.
3. If changes are required, return to the IntelliAg application and adjust.

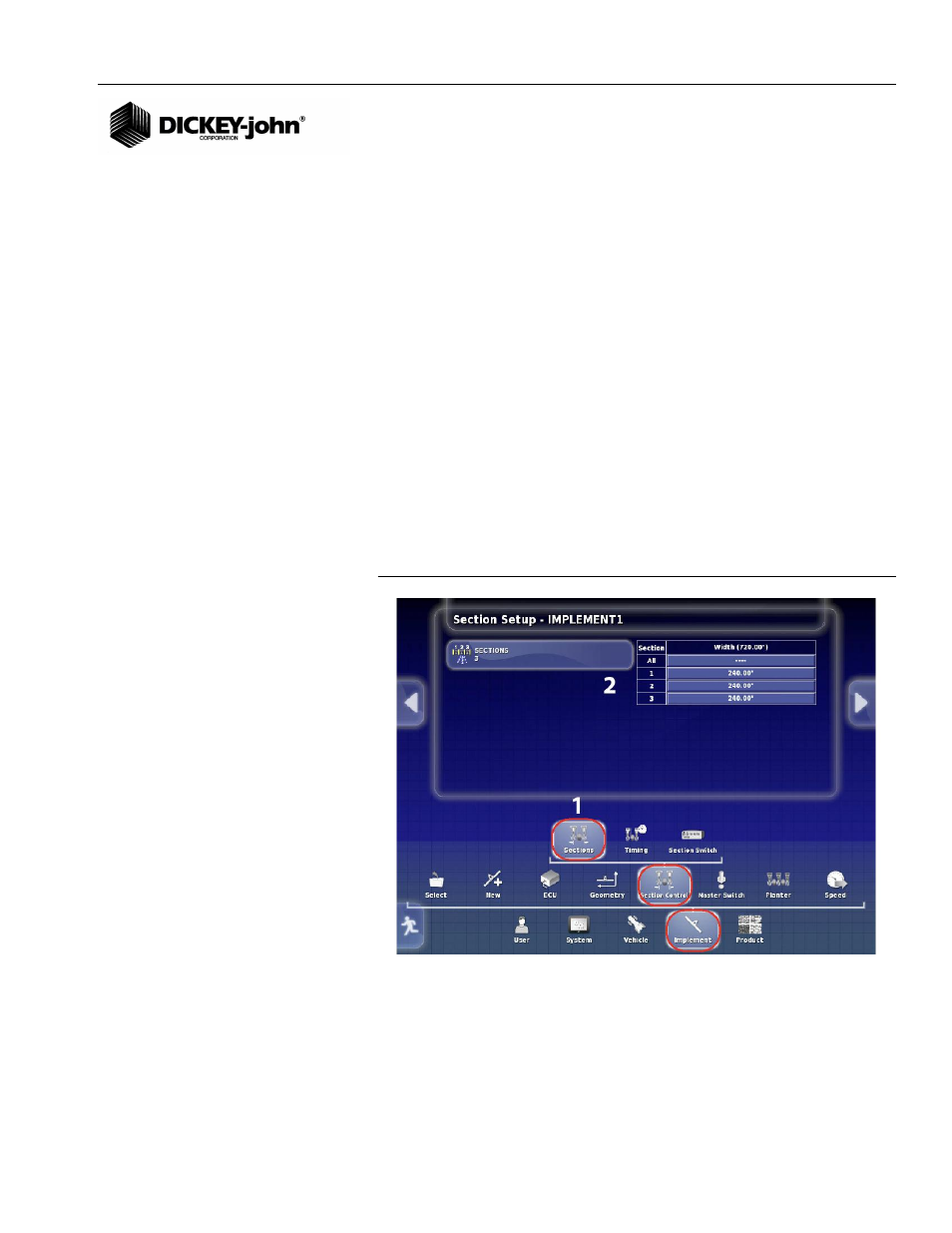

Figure 111
Section Control Setup Menu
TIMING
Timing is an adjustment to gap or overlap of product application when
entering a headland and using section control. Two timing options to turn
sections on and off are required.
