OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
VARIABLE RATE JOB SETUP / 139

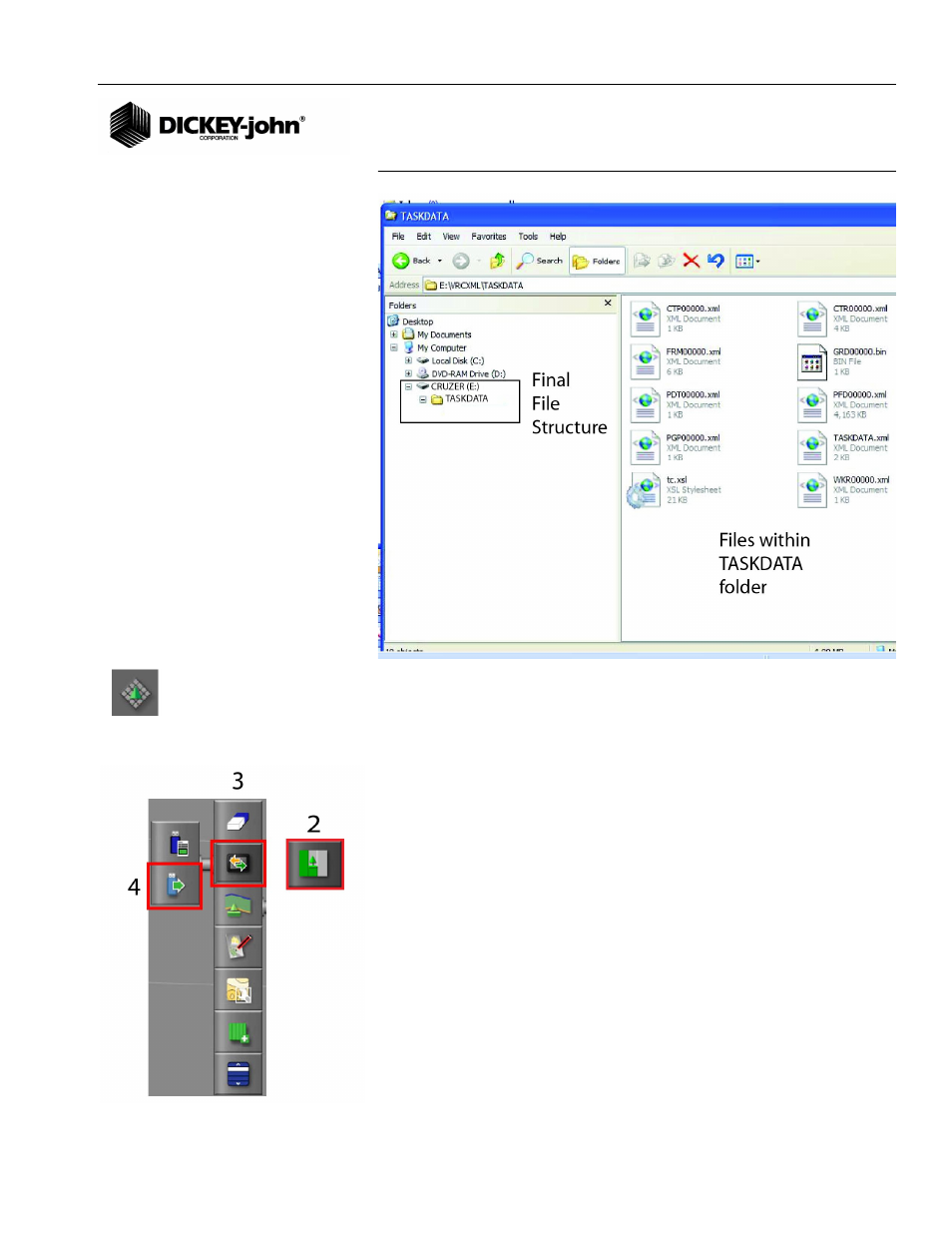

Figure 202
Final Task Data File Structure
IMPORT VARIABLE RATE JOB TO TERMINAL
The following conditions are required before a task will import successfully
to the terminal:
• A valid GPS signal
• Task Data Enabled at the Settings screen
• Guidance screen in North Up mode
To Import a Task to Terminal:
Task Data must be enabled at the Settings menu to import a task.
1. Insert USB memory device into USB port on the side of terminal.
2. Press the Job Menu button.
3. Press the Data Exchange button.
4. Select the Import Task Data button.
5. At the Import Task Data window, step through folders until the Task
Data folder displays.
6. At the Task Data folder, select the desired .xml file to import and press
the Check button to accept.
– Refer to (
Figure 203 ) for data import options.
7. Drive to the starting position.
8. Press the Check button at the popup window that verifies the task is
successfully loaded.
North Up
