Operator’s manual – Great Plains DICKEY-john AI-120 12-inch Virtual Terminal User Manual
Page 32
OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
24 / TERMINAL SETUP
ENABLE/DISABLE TERMINAL LIGHTBAR
2. At the Lightbar setup menu, press the Lightbar button and select
Enable or Disable. Press the Check button to accept.

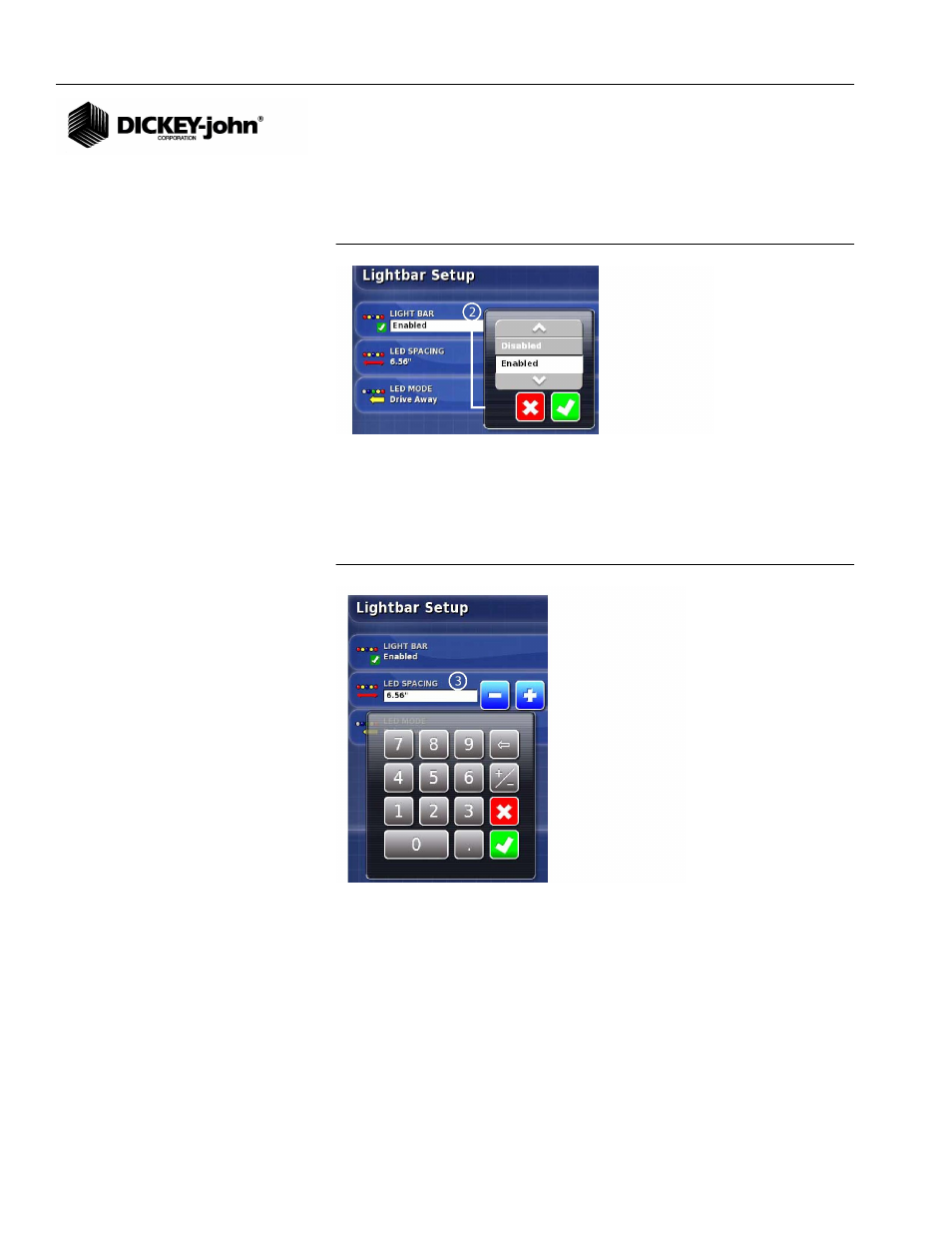

Figure 30
Enable/Disable Terminal Lightbar
LED SPACING
3. LED Spacing sets the distance value for each LED when lit. At the
Lightbar setup menu, press the LED Spacing button and enter the
desired spacing. Press the Check button to accept.
Figure 31
LED Spacing
LED MODE
4. Two LED mode options allow selection of how the lights respond when
turning towards or away from the guide line. At the Lightbar setup
menu, press the LED Mode button. Press the Check button to accept.
– Drive Towards: LED’s on the left of the lightbar light up when
driving away from the guideline towards the right.
– Drive Away: LED’s on the right of the lightbar light up when driving
away from the guideline towards the right.
– Press the Check button to accept selection.
