OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
12 / USING THE TERMINAL

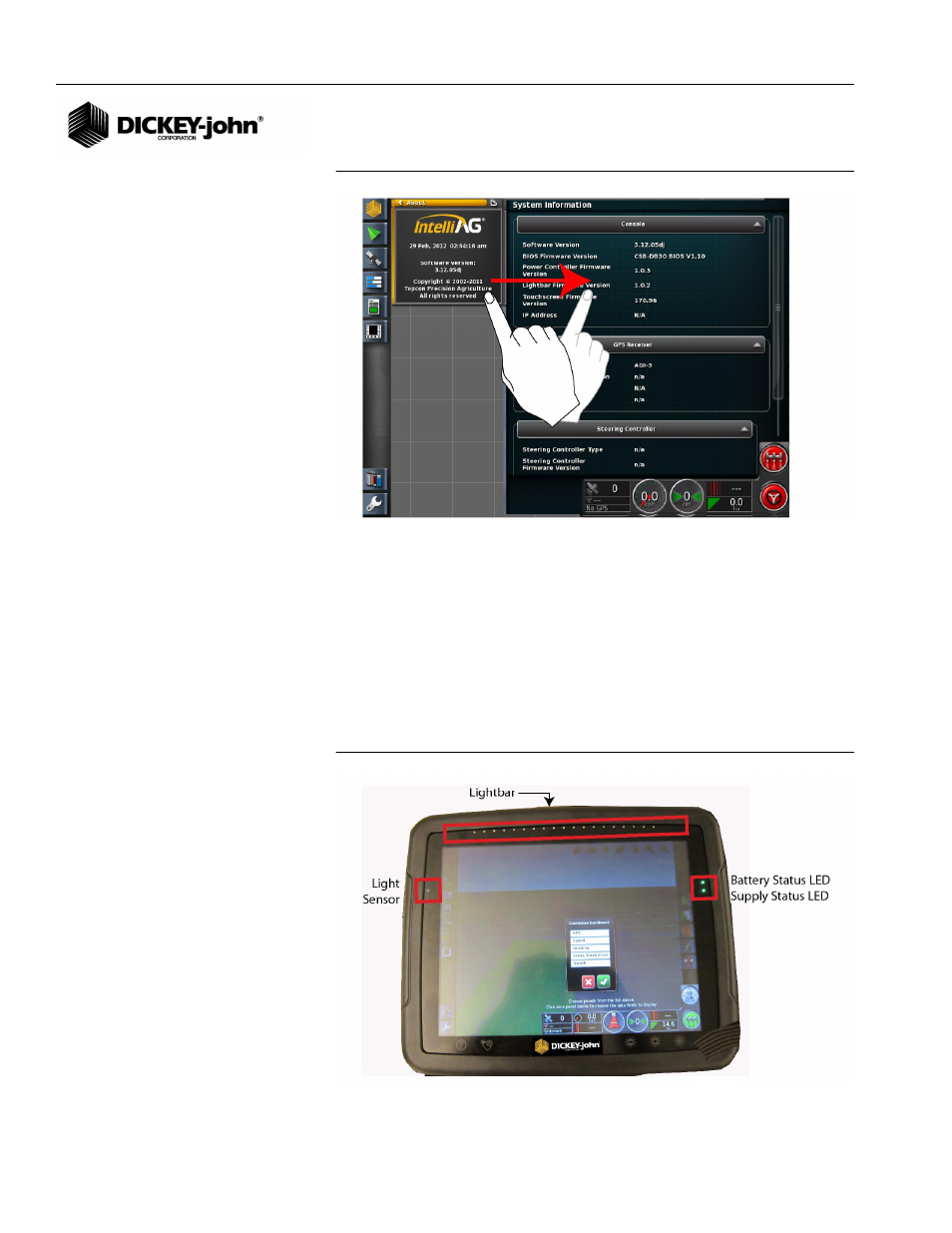

Figure 7
Press, Slide, and Release Example
LED LIGHT INDICATORS
The terminal is equipped with LED’s that provide status for:
• Battery status
• Supply status
• Autosteering accuracy
• Light sensor
Status LED’s flash as the system powers on and will become green when
stable.
Figure 8
LEDs on Terminal
