110 / MAIN OPERATOR SCREEN

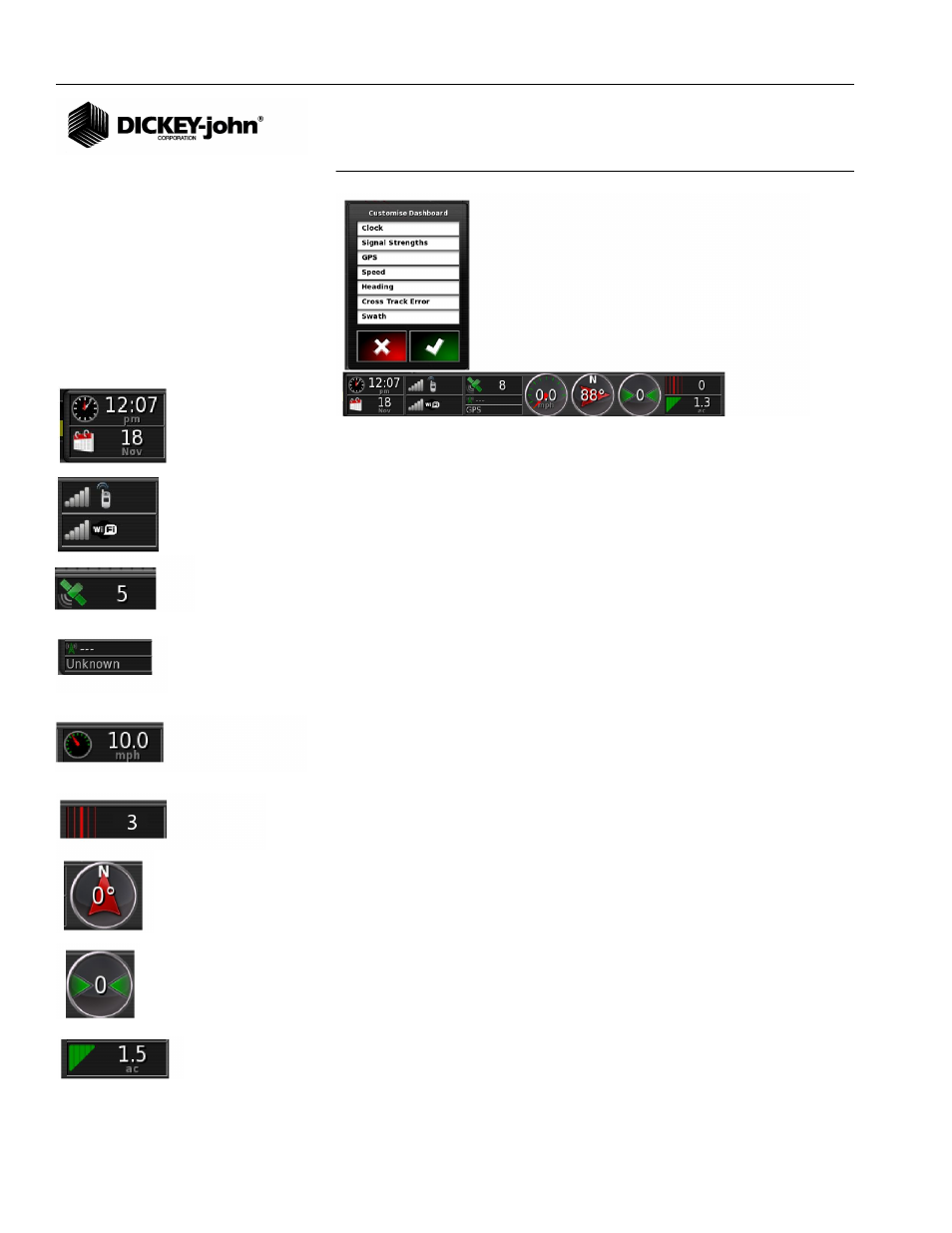

Figure 165
Dashboard
CLOCK
Display the current date and time.
SIGNAL STRENGTHS
Displays the strength of cellular and wi fi signals.
NUMBER OF SATELLITES DETECTED (GPS)
Displays the total number of satellites currently detected by the system.
CURRENT GPS ACCURACY
Displays the level of GPS accuracy detected by the system. Color indicates
GPS signal quality.
VEHICLE GROUND SPEED
Displays current vehicle ground speed.
SWATH NUMBER
Displays the current guideline row number. For example, driving along the
third row parallel to the initial guide line would indicate 3.
VEHICLE HEADING
Vehicle’s heading in degrees relative to true north.
CROSS TRACK ERROR
Displays the distance of vehicle center to the left or right of a guideline.
Value is negative left of the line and positive right of the line.
TOTAL AREA COVERED
Displays the total area completed in coverage mapping for the current job.
