TERMINAL SETUP / 69
ECU SETTINGS (SYSTEM REFRESH)
ECU settings are normally set when creating a new implement. However,
adjustments to ECU settings can be required after initial setup as follows:
• Implement changes require a refresh of the terminal to synchronize
with ECU settings for the following implement changes:
– IntelliAg WSMT PDC system: Row width settings and/or clutch
configuration settings are modified
– AI-120 terminal: When the implement control type or the implement
function on the ECU Setup screen is modified.
– When changing from a variable rate job to a manual as applied rate
job.
• Loading a software update to modules connected to the CAN Bus
To Adjust Implement Settings:
1. At the Setup screen, press the Implement/ECU icon.
2. Selecting and changing an implement control or function at this screen
automatically prompts a system refresh.
3. Press the Check button to return to the main screen.
To Adjust Implement Function:
4. Press the Implement Function button to identify the implement type
as:
– Sprayer
– Spreader
– Planter
NOTE: The terminal must be receiving
a GPS signal for the auto
section control to update

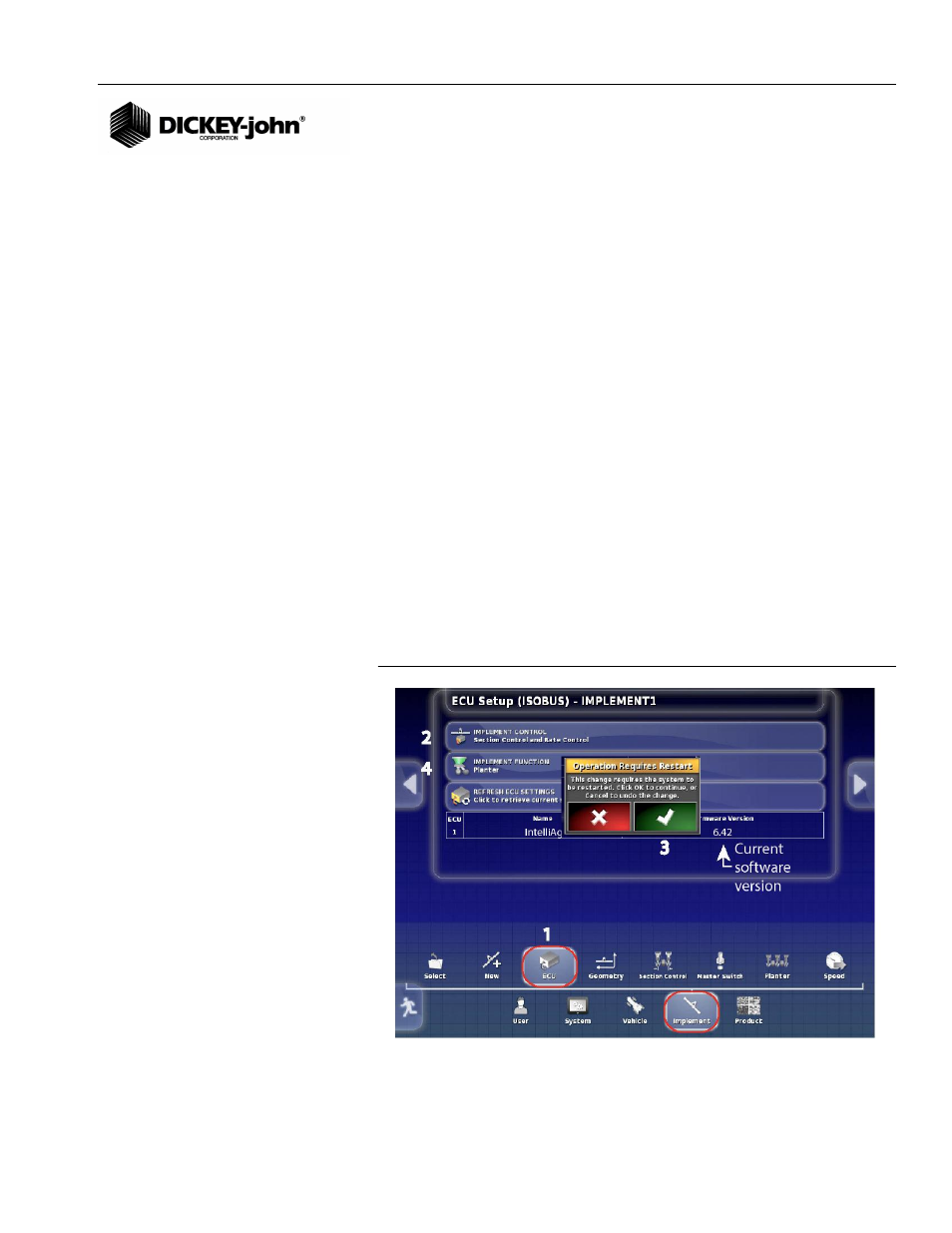

correct section widths. Figure 103
Refresh ECU Settings
