36 / TERMINAL SETUP

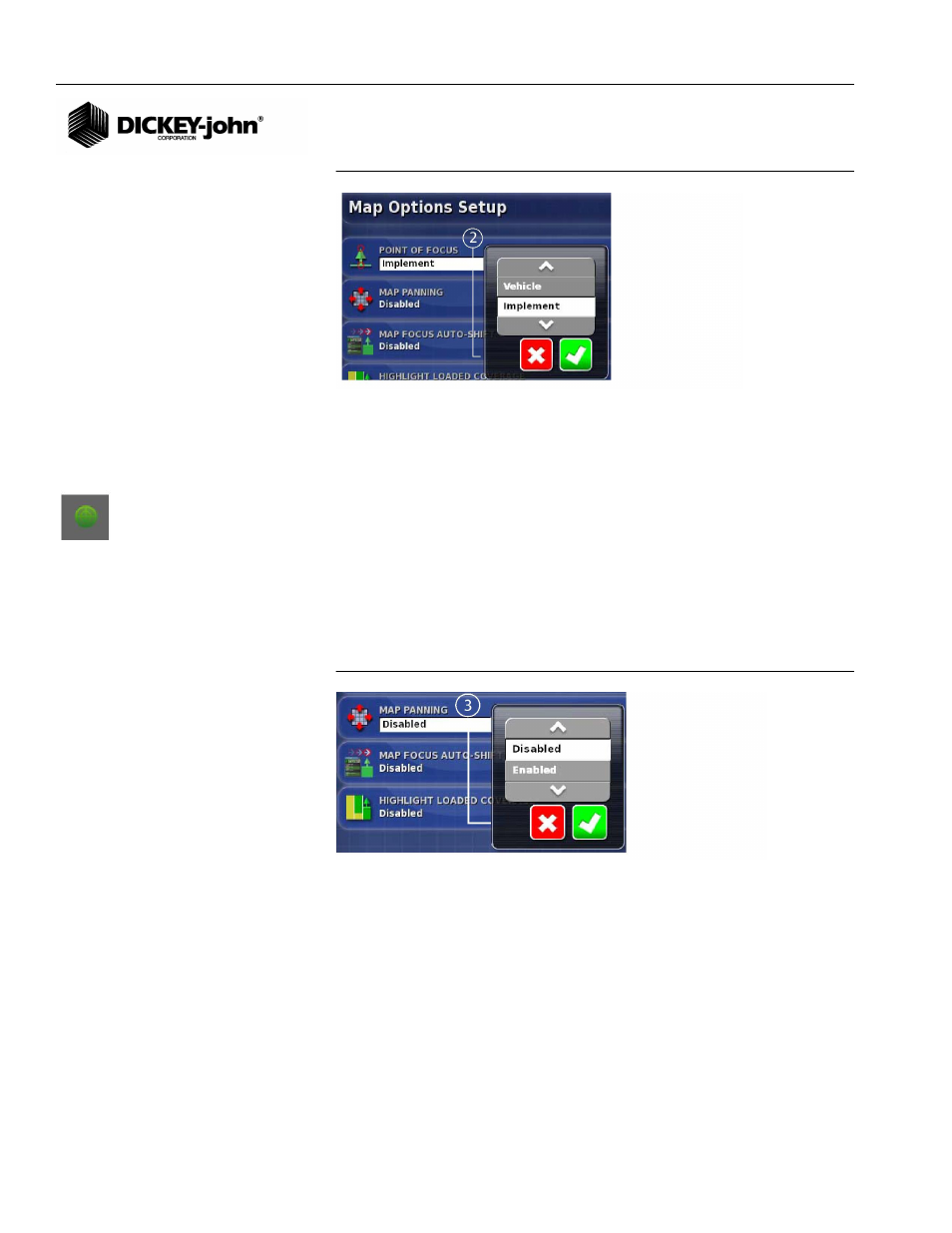

Figure 51
Point of Focus
MAP PANNING
Map panning allows viewing sections of a field that are not visible because
of the auto centering of the vehicle icon on the guidance screen. Panning is
performed by placing a finger on the screen and dragging in the direction to
view.
3. Press the Map Panning button to display menu selections. Press the
Check button to accept selection.
– Enabled activates the panning function on the guidance screen
– Disabled deactivates the panning function on the guidance screen
When enabled, an icon appears green on the guidance screen when map
panning is active. The icon is gray when not active.
Figure 52
Map Panning
MAP FOCUS AUTO SHIFT
4. Press the Map Focus button to display menu selections. Press the
Check button to accept selection.
– Enabled activates automatic centering of the vehicle and implement
on the coverage map on the guidance screen
– Disabled requires manual map panning on the guidance screen
