98 / MAIN OPERATOR SCREEN
PERSPECTIVE VIEW

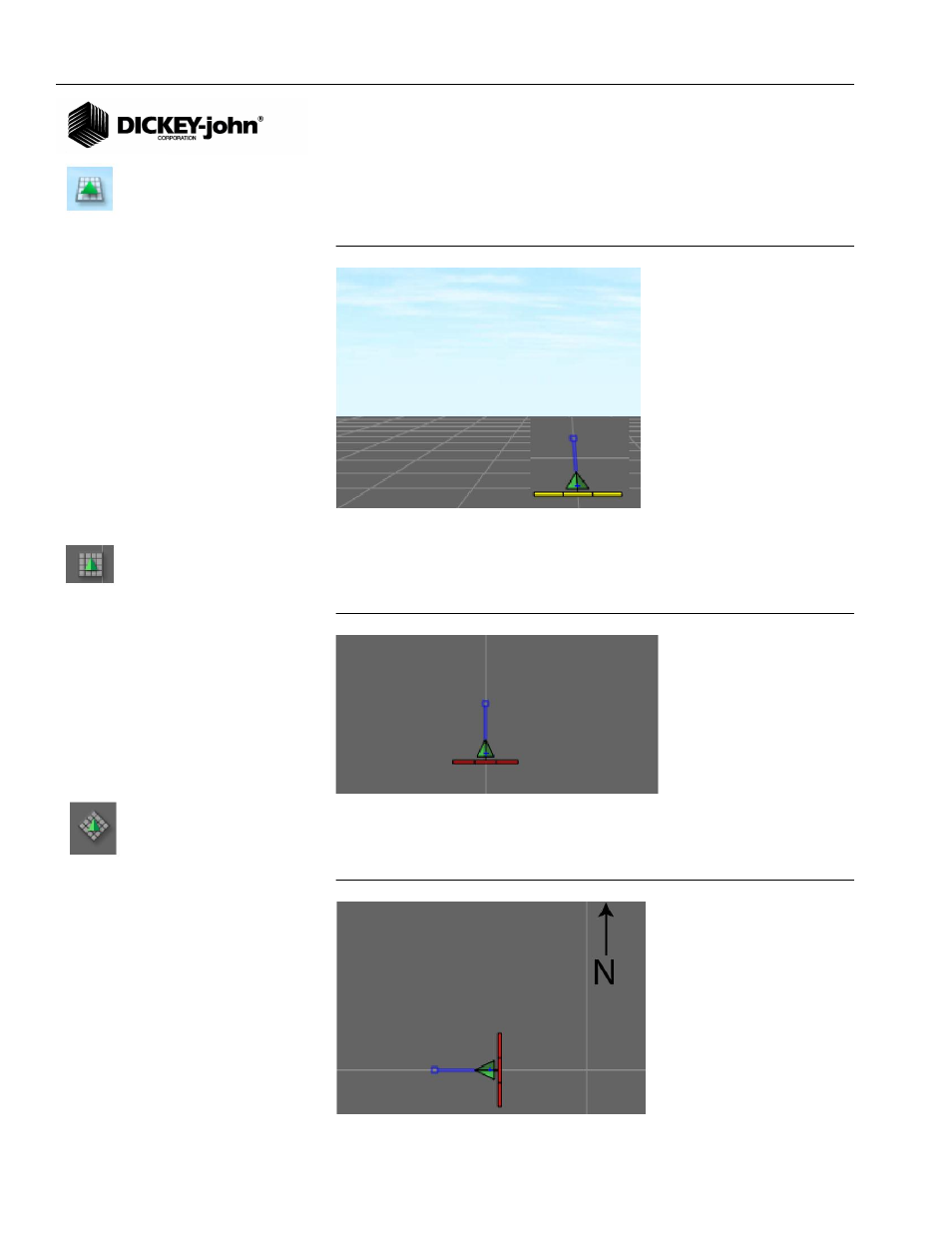

The Perspective View button places the map into virtual perspective with a
virtual horizon.
Figure 144
Perspective View
OVERHEAD VIEW
In Overhead View the top of the screen represents the vehicle’s current
direction.
Figure 145
Overhead View
NORTH UP VIEW
In North Up View, the top of the screen represents North.
Figure 146
North Up View
