INSTALLATION / 5
INSTALLATION
The terminal is secured in the tractor cab by a mounting bracket.
• A ball mount at top and bottom of bracket allows terminal orientation in
many different positions
• A wing bolt in the middle of bracket tightens and secures the terminal
to the desired position
Attaching Bracket to Terminal:
1. Secure bracket to tractor using using the 4 SAE screws included.
2. Loosen the wing nut on the bracket and remove the ball mount plate.
3. Remove the (3) hex nuts on the back of the virtual terminal.
4. Place the ball mount plate over the terminal mounting studs.
5. Place the bracket onto the 3 studs on the back of the terminal and
secure using the (3) hex nuts removed in step 3.

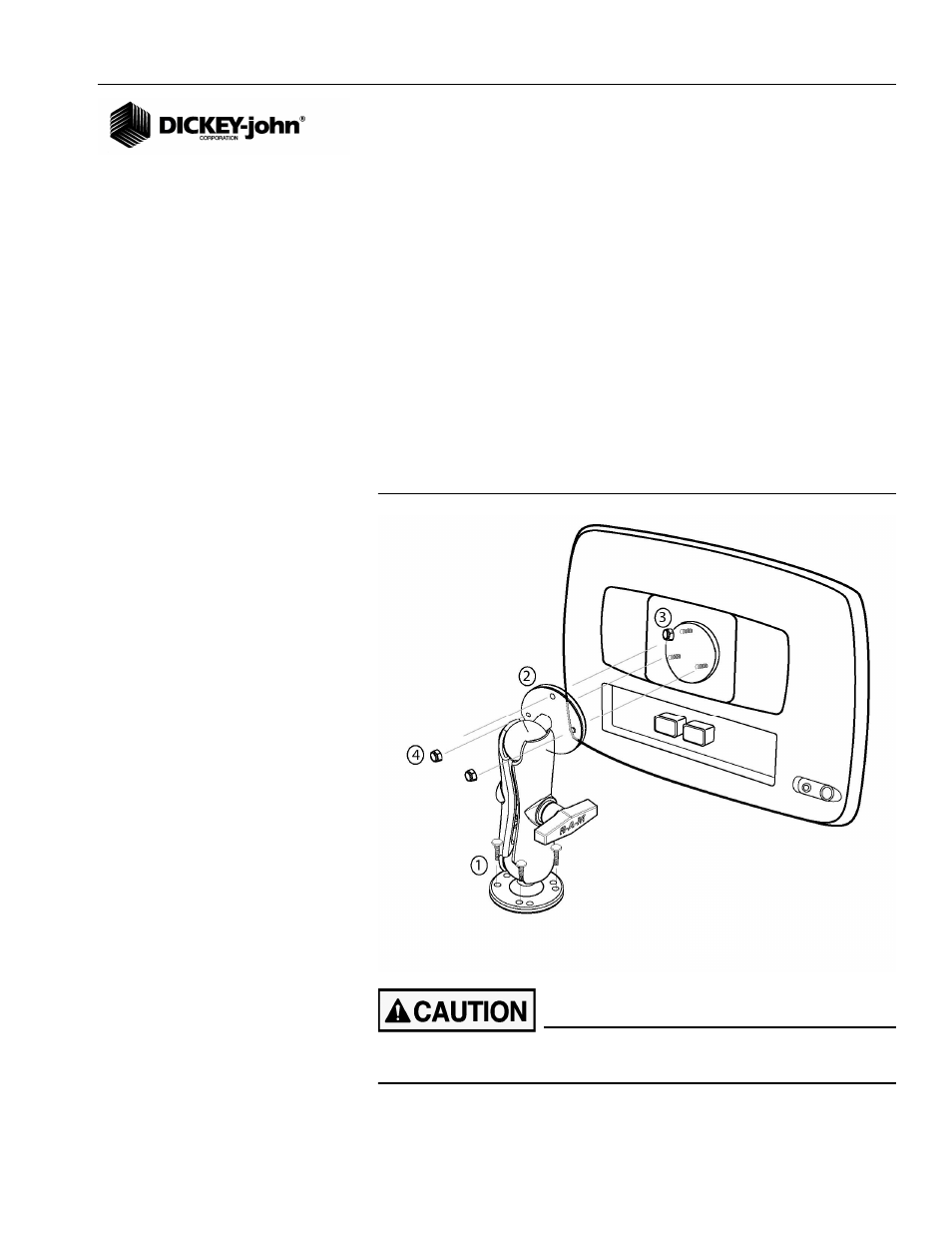

Figure 1
Attach Terminal to Bracket
Position terminal so that operator view is not obstructed and does
not interfere with tractor operation.
