OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
AS APPLIED JOB SETUP / 135

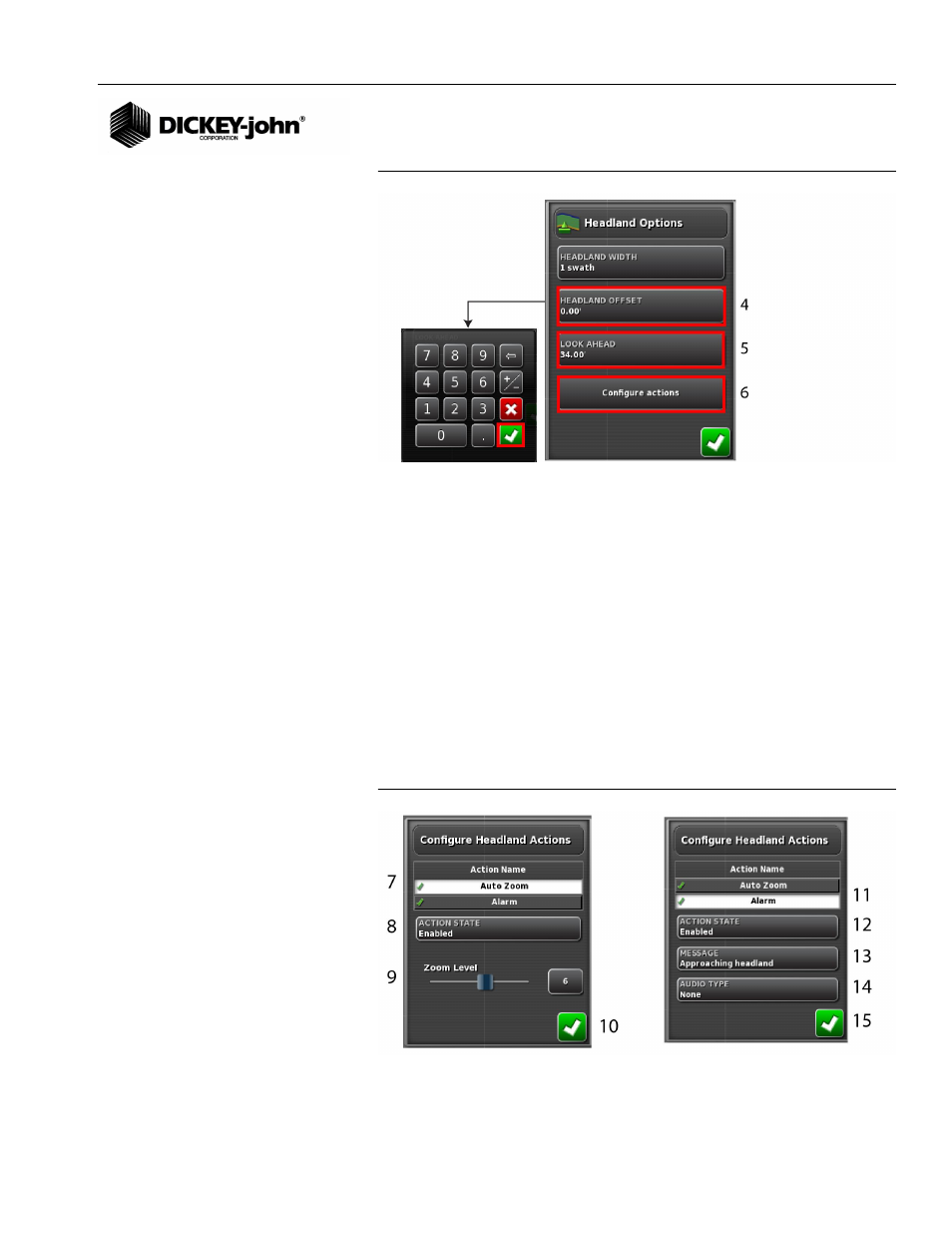

Figure 196
Look Ahead Distance
NOTE: For greater steering accuracy
when navigating a headland,
the recommended zoom level is
between 8 and 10. 7. At the Configure Headlands windows, press the Auto Zoom button.
8. If auto zoom is desired, press the Action State button and select
Enabled.
9. Slide the Zoom Level button to the desired setting. Auto Zoom will
automatically adjust to the zoom level as specified on this screen when
approaching a headland during coverage mapping.
10. Press the Check button to accept changes.
11. Press the Alarm button to set headland alarm setting.
12. If an alarm is desired, press the Action State button, select Enabled.
13. A default message of “Approaching headland” appears during
coverage mapping. This message can be changed to a user-defined
name, if desired.
14. Select the Audio Type warning as None or Beep. A red cross appears
next to the alarm action name is the feature is disabled.
15. Press the Check button to accept changes.
Figure 197
Configure Action Settings
