OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
38 / TERMINAL SETUP
PAUSE BOUNDARY RECORDING WITH MASTER
A boundary can be created at the same time as applying material. When
disabled, a boundary is created only with no coverage. Refer to the As
Applied Job Setup/Boundary Recording Offset section for drawing a
boundary line on the left or right of the implement.

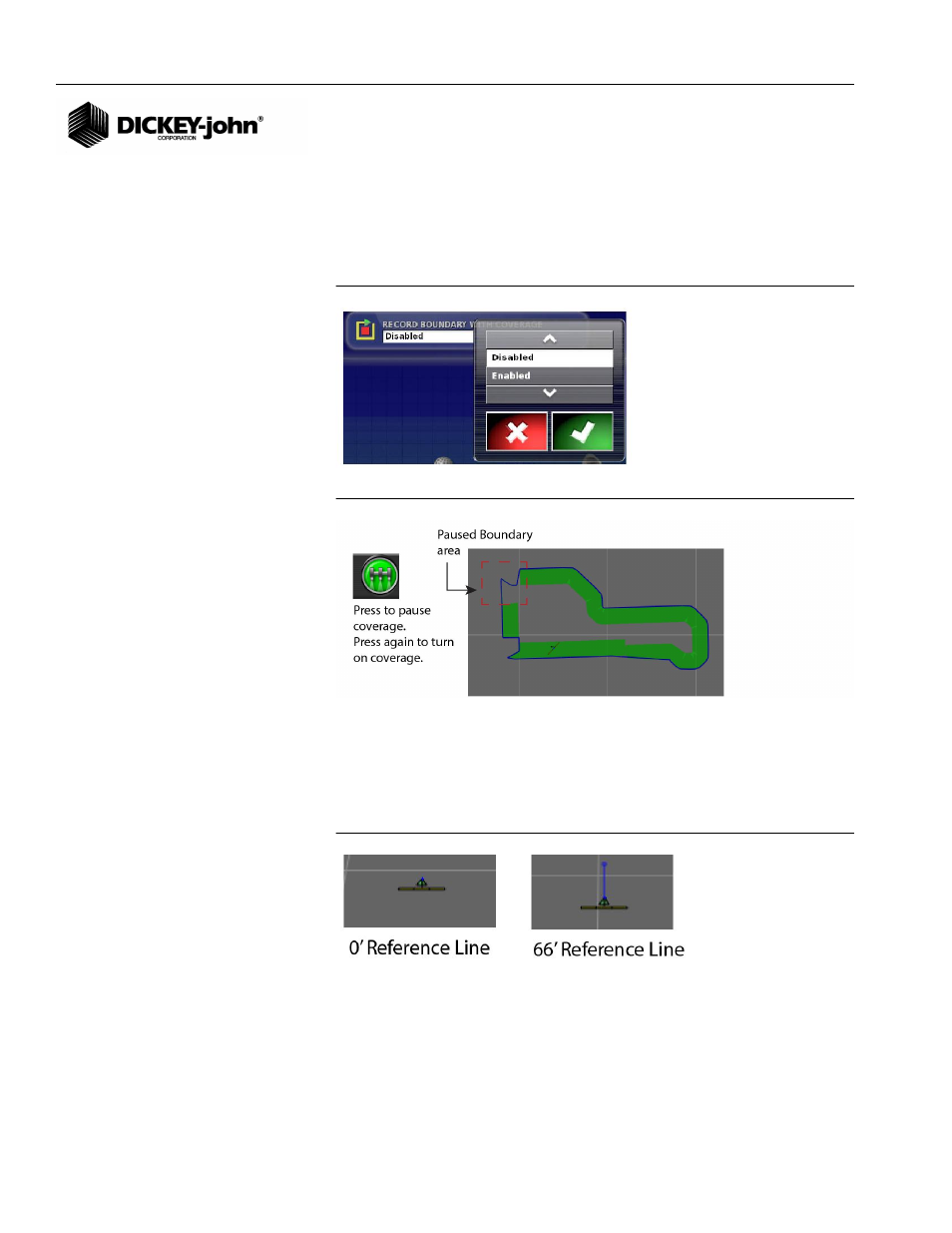

Figure 56
Pause Boundary Recording with Master
Figure 57
Recording a Boundary With Coverage
VISUAL REFERENCE LINE LENGTH
The tractor symbol has an optional reference line that is user defined in feet
as a visual indicator reference point. The line set range is 0 (no reference
line) up to 66’.
Figure 58
Visual Reference Line
6. Press the Visual Reference Line Length button to display keypad.
Enter desired line length and press the Check button to accept.
