OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
TERMINAL SETUP / 65
NOTE:
For systems without switch
modules or output modules that
want the capability of section
control, refer to the Section
Control Shutoff by Channel
section.
9. Press the Check button to accept the control type.
10. Press the Next button to proceed.
11. Select ISOBUS as the ECU type that is performing section or
application rate control. Press the Check button to accept.
12. Press the Next button to proceed.

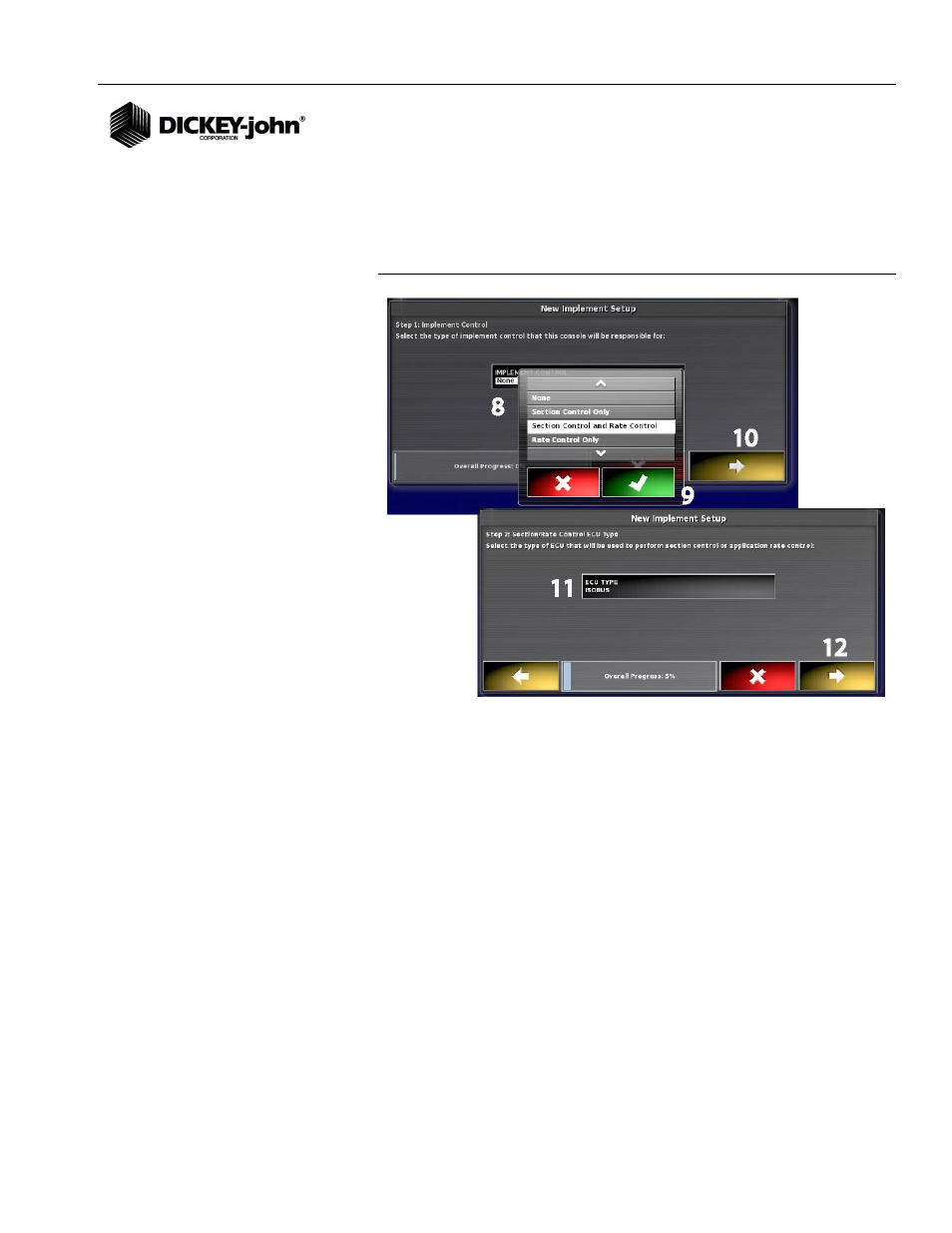

Figure 98
Implement Control Type
13. Select the function to be performed by the implement (sprayer,
spreader, or planter).
14. Press the Check button to apply the settings.
15. Press the Next button to proceed.
16. Implement setup is complete. Press the Check button to apply these
settings and restart the console.
17. After restart is complete, the Implement Geometry screen displays.
