OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
TERMINAL SETUP / 51
GPS SETUP
Before a job is setup and started, GPS must be enabled to communicate
with the receiver connected to the RS232 cable on the tractor harness.
Verify the following GPS inputs to enable a valid GPS signal:
• GPS receiver
• Output
• Radar
The Guidance screen indicates the current status of the GPS signal, refer to
(
Figure 82 ).
To Verify GPS Input:
1. At the Setup menu, press the System/GPS/Receiver icons to display
selections.
2. Select Other as the GPS receivers for non-Topcon receivers.
3. Press the Check button to accept selection.

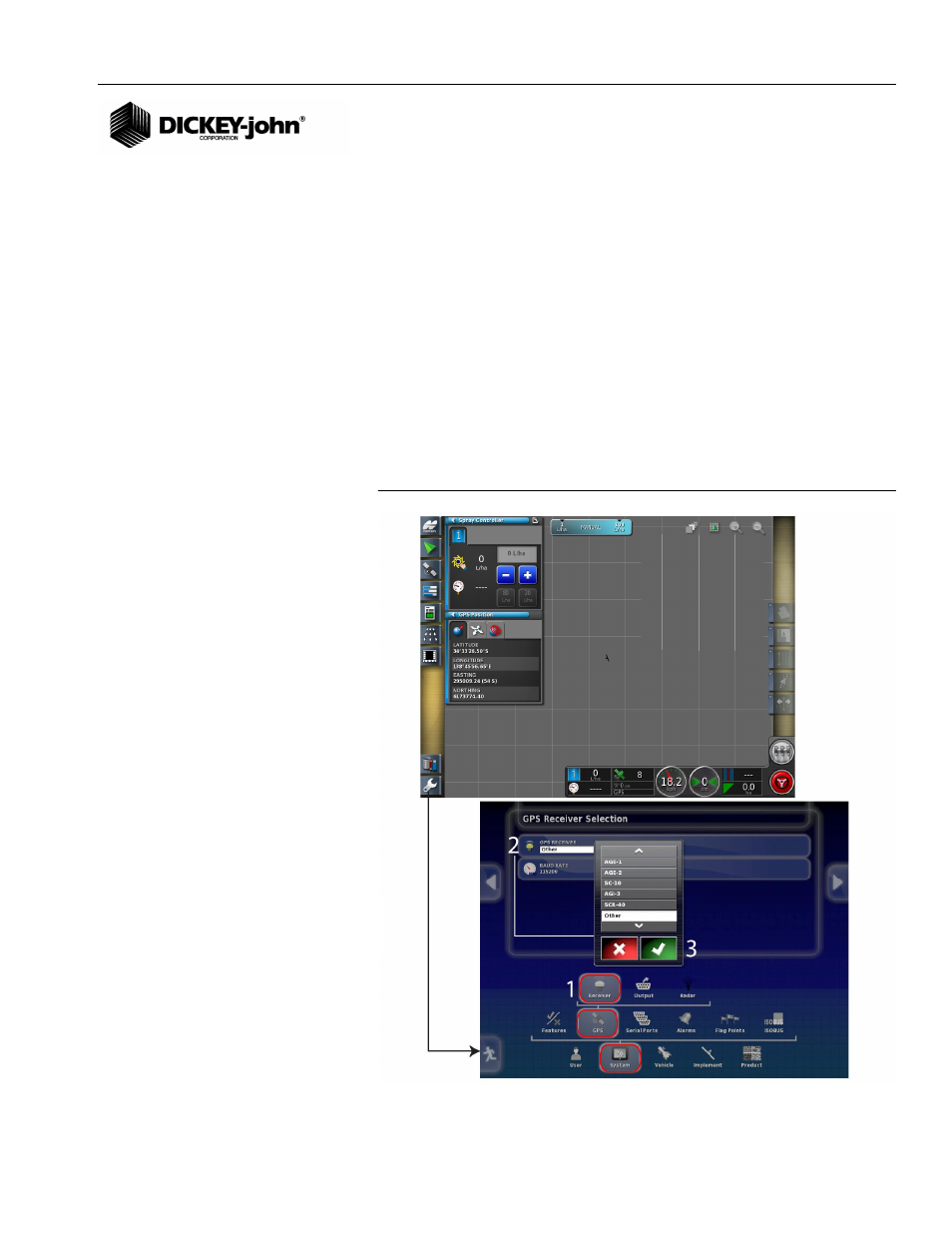

Figure 80
Enable GPS
