Native Grass Hex Shaft Update Kits
705NG and 1005NG Drills
Used with:
•
705NG drills serial number 1948Q and earlier
•
1005NG drills serial number 5533U and earlier
General Information
These instructions explain how to install the Hex Shaft
Update Kits. This upgrade is required if any other Native
Grass box components are being upgraded from round
shaft to hex shaft.
Note: The shaft in this kit is only compatible with
3
⁄
4
in hex
shaft paddles and agitators (not included). Any
existing round-shaft components will not fit on the
new hex shaft.
These instructions apply to:
Before You Start
Each kit converts one drill.
For each kit, inventory the contents per the “Parts Lists”
on page 7.
Review the instructions, to make sure the steps are
understood and what tools are expected.
Have the following items at hand:
• Operator’s Manual for your drill
• Updated Parts Manual for your drill
• Basic hand tools
If necessary, move the drill to a dry well-lighted location
suitable for disassembly. The drill may be raised or low-
ered for this work.
1.
Empty the Native Grass box.
2.
Secure the tractor.
Notations and Conventions
“Left” and “Right” are facing in the
direction of machine travel. An orienta-
tion rose in the line art illustrations
shows the directions of Left, Right,
Front, Back, Up, Down.
Option Package
Part Number
705 NG 3/4 HEX SHAFT KIT
202-610A
1005 NG 3/4 HEX SHAFT KIT
202-611A

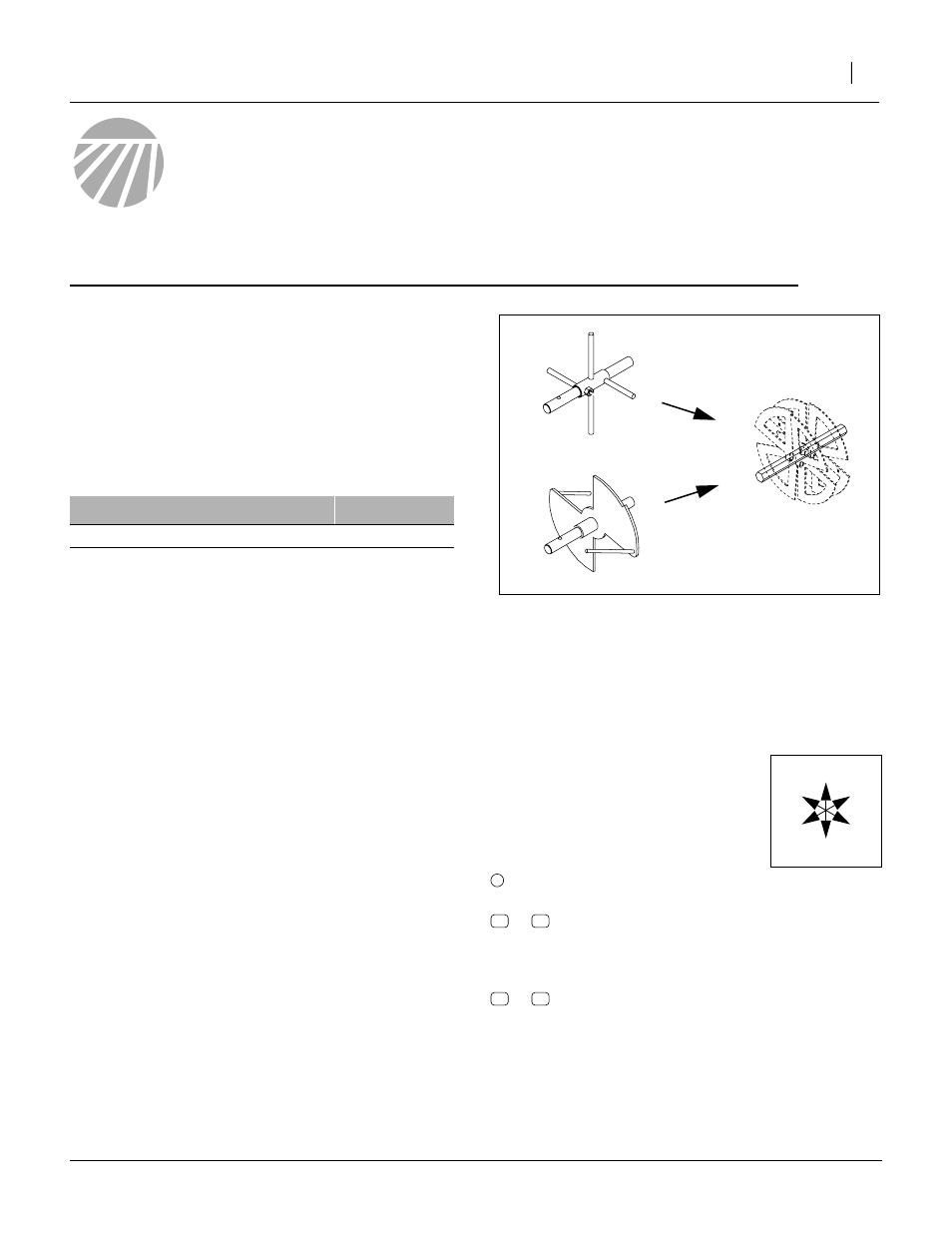

Figure 1
Shaft Upgrade
26283
callouts identify components in the currently
referenced Figure or Figures.
to
callouts reference new parts from the list on
page 7. The descriptions match those on the
cartons, bags or item tags, as well as your
updated Parts Manual.
to
callouts reference affected existing parts.
The descriptions match those in your Parts
Manual.
U
D
L
R
B
F
1
