OPERATOR’S MANUAL
AI-120 Virtual Terminal
11001-1606B-201310
118 / GUIDELINES
IDENTICAL CURVES
An Identical Curve guideline is a replica of the initial guideline created when
coverage mapping is active. This is similar to AB Lines whereby all
guidelines are drawn based only on the first guideline.

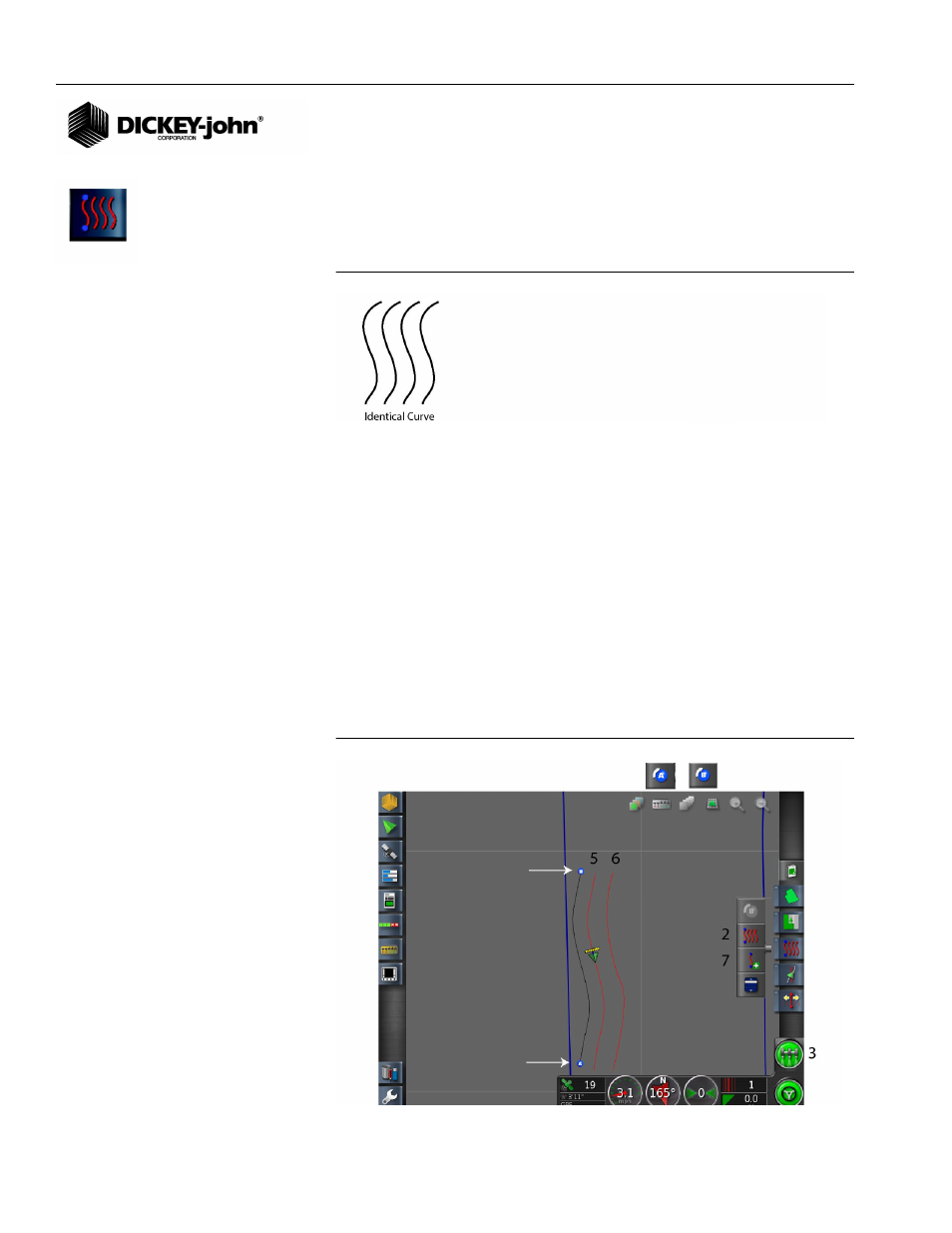

Figure 175
Identical Curves
NOTE: Identical Curve mode is only
available when using an AGI-3
receiver. To create an Identical Curve:
1. Verify a guideline name is created for the curve and auto steering is
enabled.
2. Select the Guideline menu button and press the Identical Curve
button.
3. Activate coverage mapping, set the A point, and start driving the
identical curve AB guideline.
4. Set the B point to stop tracking the identical curve guideline.
5. The identical curve guideline appears parallel to the previous coverage
pass when returning for a second pass.
6. Every guideline is identical to the initial identical curve AB line
regardless of the coverage route taken.
7. Select the Create New Guideline button at any time to close and save
the current identical curve file.
Figure 176
Identical Curve
